74534 TE - Toro 91cm GrandStand Stand-On Mower (SN: 312000001 - 312999999) (2012) DECK LIFT ASSEMBLY Parts Diagram

91cm GrandStand Stand-On Mower

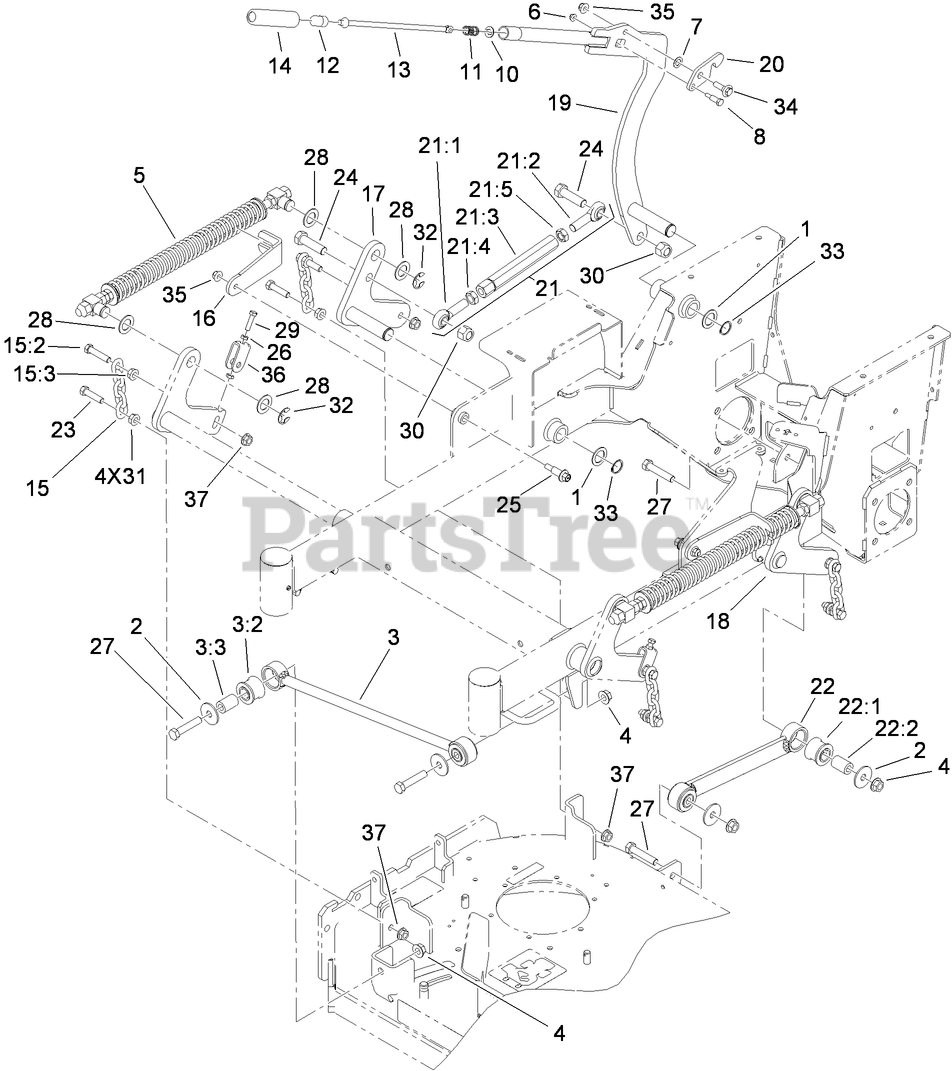

DECK LIFT ASSEMBLY Parts Diagram

  • Title

1

Toro 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

2

Toro 86-1990

WASHER-THRUST

$3.99

$

In Stock, only 3 left!

0

3

Toro 109-5013

PANHARD ROD ASM

$142.99

$

In Stock, Qty 6

0

3:2

Toro 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 15

0

3:3

Toro 109-5010

SPACER

$12.99

$

In Stock, Qty 6

0

4

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

5

Toro 119-2337

DECK LIFT SPRING ASM

$173.99

$

Usually ships in 3-6 days

0

6

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Toro 98-1629

WASHER

$1.49

$

Usually ships in 3-6 days

0

8

Toro 119-2309

BOLT-SHOULDER

$27.99

$

Usually ships in 3-6 days

0

10

Toro 114-1207

WASHER-SPECIAL

$2.99

$

In Stock, only 1 left!

0

11

Toro 114-8187

SPRING-COMPRESSION

$5.49

$

In Stock, only 3 left!

0

12

Toro 115-2750

KNOB

$12.99

$

Usually ships in 3-6 days

0

13

Toro 119-2331

ROD-LATCH
(Superseded to 136-0530)

$26.99

$

Usually ships in 3-6 days

0

14

Toro 115-3592

GRIP

$11.99

$

In Stock, only 1 left!

0

15

Toro 116-0756

DECK LIFT CHAIN ASM

$14.99

$

In Stock, Qty 8

0

15:2

Toro 109-9065

SCREW-HH

$3.49

$

In Stock, Qty 9

0

15:3

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

0

16

Toro 119-2302-01

BRACKET-FORK

$34.99

$

Usually ships in 3-6 days

0

17

Toro 117-5276-01

RH LIFT ARM ASM

$

$

Not available

18

Toro 117-5277-01

LH LIFT ARM ASM

$

$

Not available

19

Toro 117-5290-01

ARM-LIFT, HOC

$173.99

$

Usually ships in 3-6 days

0

20

Toro 117-5292

LATCH-HOC

$20.99

$

Usually ships in 3-6 days

0

21

Toro 119-0383

DECK LIFT LINK ASM

$191.99

$

Usually ships in 3-6 days

0

21:1

Toro 1-633029

BALLJOINT-SPHERICAL

$66.99

$

In Stock, Qty 12

0

21:2

Toro 117-5291

BALLJOINT-SPHERICAL

$41.99

$

In Stock, only 1 left!

0

21:3

Toro 119-0382

LINK-LIFT, DECK

$58.99

$

Usually ships in 3-6 days

0

21:4

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

21:5

Toro 117-5293

NUT-JAM

$5.49

$

In Stock, only 1 left!

0

22

Toro 119-0384

DECK STRUT ASM

$162.99

$

Usually ships in 3-6 days

0

22:1

Toro 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 15

0

22:2

Toro 109-5010

SPACER

$12.99

$

In Stock, Qty 6

0

23

Toro 324-7

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

24

Toro 327-22

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

25

Toro 62-1330

BOLT-SHOULDER

$11.99

$

In Stock, only 1 left!

0

26

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

27

Toro 325-10

SCREW-HH

$5.49

$

In Stock, Qty 6

0

28

Toro 119-2332

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

29

Toro 119-3626

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

30

Toro 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

0

32

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 7

0

33

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 16

0

34

Toro 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, Qty 6

0

35

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

36

Toro 109-9066

YOKE-ADJUST, DECK

$7.99

$

In Stock, only 2 left!

0

37

Toro 32128-42

NUT-HF

$1.49

$

In Stock, only 3 left!

0
