74534 TE - Toro 91cm GrandStand Stand-On Mower (SN: 311000001 - 311999999) (2011) ENGINE ASSEMBLY Parts Diagram

91cm GrandStand Stand-On Mower

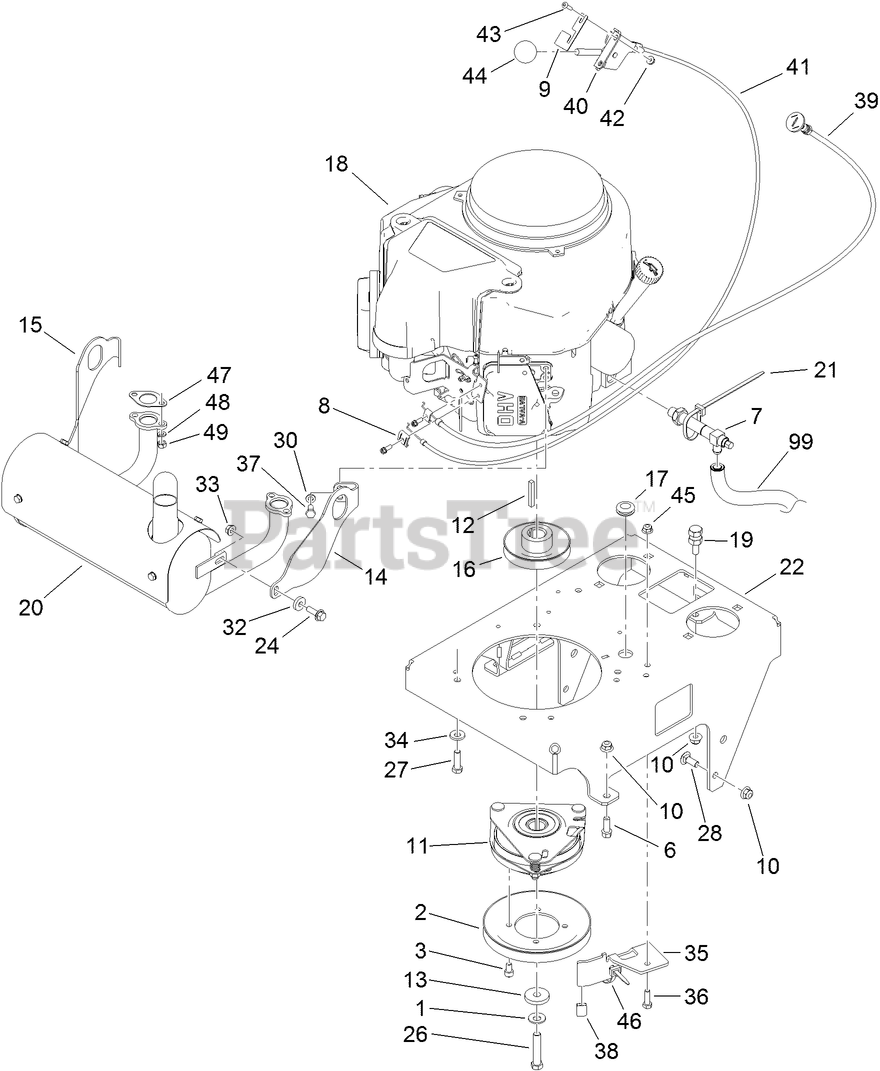

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

2

Toro 119-0215

PULLEY

$69.99

$

Usually ships in 3-6 days

0

3

Toro 119-0221

SCREW-HSH

$4.49

$

Usually ships in 3-6 days

0

6

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

7

Toro 116-2618

VALVE-DRAIN, OIL
(Superseded to 116-6126)

$67.99

$

Usually ships in 3-6 days

0

8

Toro 81-1690

CLAMP-CABLE

$2.99

$

Usually ships in 3-6 days

0

9

Toro 119-1883

PLATE-SET, THROTTLE

$41.99

$

Usually ships in 3-6 days

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 119-0220

CLUTCH/BRAKE ASM

$764.99

$

Usually ships in 3-6 days

0

12

Toro 608006

KEY-SQUARE

$5.49

$

In Stock, only 1 left!

0

13

Toro 107-4136

WASHER
(Superseded to 1-543610)

$6.49

$

In Stock, Qty 16

0

14

Toro 116-2353

BRACKET-MUFFLER MOUNT, LH

$70.99

$

In Stock, only 1 left!

0

15

Toro 116-2354

BRACKET-MUFFLER MOUNT, RH

$70.99

$

In Stock, only 1 left!

0

16

Toro 112-7067

PULLEY

$168.99

$

Usually ships in 3-6 days

0

17

Toro 112-7069

GROMMET

$3.49

$

Usually ships in 3-6 days

0

18

ENGINE-KAWASAKI, FS541V-BS06

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

18

ENGINE-KAWASAKI, FS541V-BS06

Note: Not serviced separately

$

$

Not available

19

Toro 114-5866

ANCHOR-SPRING, SHORT
(Superseded to 132-4729)

$6.99

$

In Stock, only 4 left!

0

20

Toro 116-2351

MUFFLER

$322.99

$

In Stock, only 1 left!

0

21

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

22

Toro 119-0155-01

BASE-ENGINE

$325.99

$

Usually ships in 3-6 days

0

24

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

26

Toro 3212-9

SCREW-HH

$12.99

$

In Stock, only 2 left!

0

27

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

28

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

30

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

32

Toro 104-7658

SPACER

$1.49

$

In Stock, only 2 left!

0

33

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

34

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

35

Toro 117-9708-01

BRACKET-STOP, PTO
(Superseded to 121-5984-03)

$26.99

$

Usually ships in 3-6 days

0

36

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

37

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

38

Toro 109-3765

BUMPER

$6.99

$

Usually ships in 3-6 days

0

39

Toro 106-9962

Control-Choke, Push / Pull

$80.99

$

In Stock, Qty 13

0

40

Toro 110-5547

LEVER-CONTROL

$40.99

$

In Stock, only 3 left!

0

41

Toro 119-1882

CABLE-CONTROL

$34.99

$

In Stock, only 2 left!

0

42

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

43

Toro 110-0863

SCREW-TORX

$9.49

$

In Stock, only 1 left!

0

44

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 6

0

45

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

46

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

47

Toro 1-653313

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0

48

Toro 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

49

Toro 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0

99

Toro 103-1964

HOSE-DRAIN, OIL

$11.99

$

In Stock, only 2 left!

0
