74529 - Toro 52" GrandStand Multi-Force Stand-On Mower (SN: 403294016 - 404313999) Deck Lift Assembly Parts Diagram

52" GrandStand Multi-Force Stand-On Mower

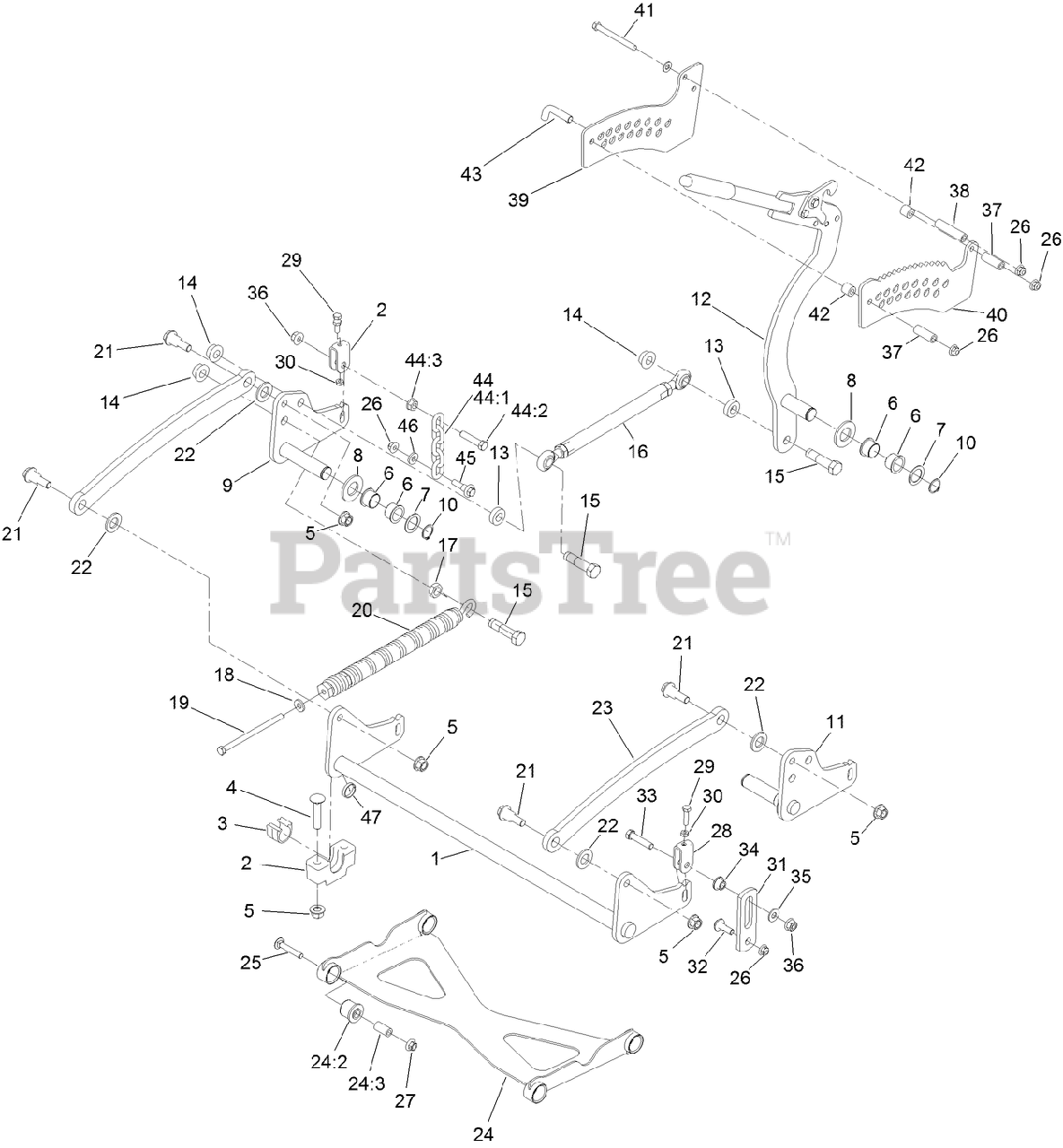

Deck Lift Assembly Parts Diagram

  • Title

1

Toro 120-8405-01

SHAFT-CROSS, FRONT

$184.99

$

Usually ships in 3-6 days

0

2

Toro 109-9409

SUPPORT-CROSS SHAFT, BEARING

$14.99

$

In Stock, Qty 17

0

3

Toro 109-9410

BEARING-CROSS SHAFT, FRONT

$5.49

$

In Stock, Qty 11

0

4

Toro 116-1700

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

5

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

6

Toro 127-0369

BUSHING

$7.99

$

Usually ships in 3-6 days

0

7

Toro 108110

DISCONTINUED

$

$

Not available

8

Toro 3256-62

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

9

Toro 127-0616-01

ARM-LIFT, REAR (RH)

$62.99

$

Usually ships in 3-6 days

0

10

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 16

0

11

Toro 127-0615-01

ARM-LIFT, REAR (LH)

$62.99

$

Usually ships in 3-6 days

0

12

Toro 130-1755

HOC LEVER ASM

$312.99

$

Usually ships in 3-6 days

0

13

Toro 119-6223

WASHER

$6.99

$

Usually ships in 3-6 days

0

14

Toro AU230-42110

NUT-HEX, CENTER LOCK

$3.99

$

Usually ships in 3-6 days

0

15

Toro 327-7

SCREW-HH

$13.99

$

In Stock, only 1 left!

0

16

Toro 130-6615

HOC LINK ASM

$144.99

$

In Stock, only 1 left!

0

17

Toro 3218-6

NUT-JAM

$6.49

$

In Stock, Qty 10

0

18

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

19

Toro 323-58

BOLT-TAP, HH

$5.49

$

Usually ships in 3-6 days

0

20

Toro 116-0886

SPRING-EXTENSION

$136.99

$

In Stock, only 1 left!

0

21

Toro 116-0780

SCREW-SHOULDER, HHF

$9.49

$

In Stock, only 3 left!

0

22

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

23

Toro 127-1948-03

LINK-LIFT

$67.99

$

Usually ships in 3-6 days

0

24

Toro 137-4129

DECK STRUT ASM

$131.99

$

In Stock, only 4 left!

0

24:2

Toro 137-4108

BUSHING-RUBBER

$5.49

$

In Stock, Qty 7

0

24:3

Toro 108-6544

SPACER

$12.99

$

In Stock, Qty 20+

0

25

Toro 323-17

SCREW-HH

$5.99

$

In Stock, only 2 left!

0

26

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

27

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Toro 109-9066

YOKE-ADJUST, DECK

$7.99

$

In Stock, only 2 left!

0

29

Toro 322-47

SCREW-HH
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

30

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

31

Toro 130-6589

LINK-LIFT

$27.99

$

Usually ships in 3-6 days

0

32

Toro 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 11

0

33

Toro 109-9065

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

34

Toro 116-2428

BUSHING-FLANGED

$12.99

$

In Stock, Qty 11

0

35

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

36

Toro 114-8417

NUT-HF, NI

$2.49

$

In Stock, Qty 18

0

37

Toro 104-0151

SPACER

$13.99

$

In Stock, only 1 left!

0

38

Toro 84-2350

SPACER-LONG

$12.99

$

Usually ships in 3-6 days

0

39

Toro 132-7581

HOC PLATE AND DECAL ASM

$84.99

$

Usually ships in 3-6 days

0

40

Toro 131-1103-01

PLATE-HOC, INNER

$63.99

$

Usually ships in 3-6 days

0

41

Toro 116-4701

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

42

Toro 80-7590

SPACER

$4.99

$

Usually ships in 3-6 days

0

43

Toro 116-5584

PIN-HOC

$5.49

$

In Stock, only 4 left!

0

44

Toro 116-0756

DECK LIFT CHAIN ASM

$14.99

$

In Stock, Qty 8

0

44:1

Toro 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

44:2

Toro 109-9065

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

44:3

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

0

45

Toro 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, only 3 left!

0

46

Toro 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

0

47

Toro 133-1431

SPACER-SPLIT

$5.99

$

Usually ships in 3-6 days

0
