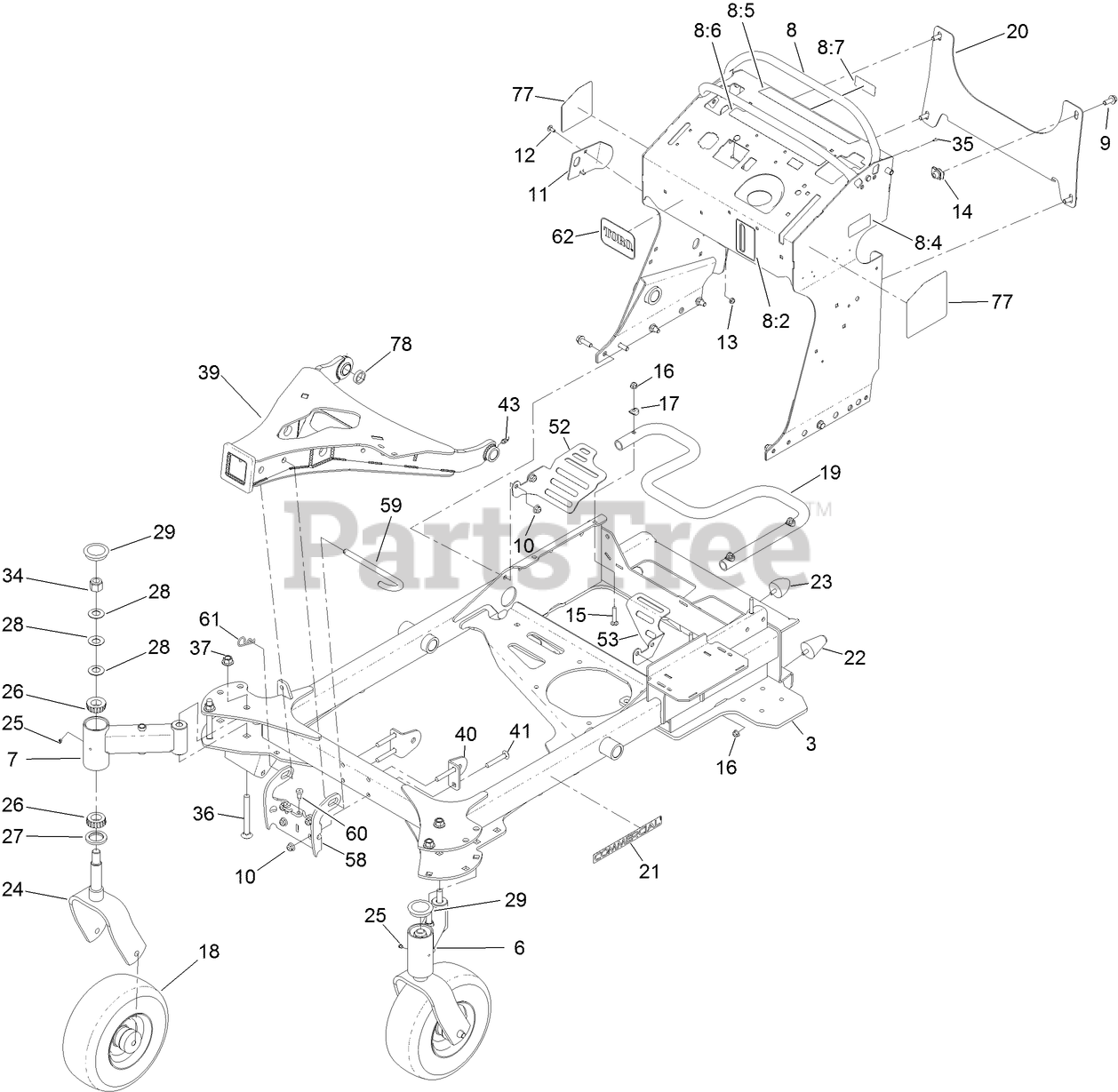

74529 - Toro 52" GrandStand Multi-Force Stand-On Mower (SN: 400000000 - 403294015) Frame Assembly Parts Diagram

52" GrandStand Multi-Force Stand-On Mower

Frame Assembly Parts Diagram

  • Title

3

Toro 131-1510-01

FRAME

$1660.99

$

Usually ships in 3-6 days

0

6

Toro 131-1523-01

TUBE CASTOR SHORT

$444.99

$

Usually ships in 3-6 days

0

7

Toro 131-1524-01

TUBE CASTOR LONG

$453.99

$

Usually ships in 3-6 days

0

8

Toro 132-7537

TOWER DECAL ASM

$955.99

$

Usually ships in 3-6 days

0

8:2

Toro 131-3524

DECAL-LEVEL, OIL

$

$

Not available

8:4

Toro 116-8775

DECAL-FILL, FUEL

$8.99

$

Usually ships in 3-6 days

0

8:5

Toro 131-3527

See Supercession: 136-5438
(Superseded to 136-5438)

$

$

Not available

8:6

Toro 131-3526

DECAL-CONTROLS

$11.99

$

Usually ships in 3-6 days

0

8:7

Toro 131-3528

DECAL-FUSE

$2.99

$

Usually ships in 3-6 days

0

9

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 131-7455

PLATE-STRIKER

$14.99

$

Usually ships in 3-6 days

0

12

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

13

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Toro 105-4886

NUT-TINNERMAN

$3.49

$

Usually ships in 3-6 days

0

15

Toro 3230-5

BOLT-CAR

$0.99

$

Usually ships in 3-6 days

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

17

Toro 107-3844

WASHER

$1.49

$

In Stock, Qty 17

0

18

Toro 130-4558

WHEEL/TIRE AND BEARING ASM

$225.99

$

Usually ships in 3-6 days

0

19

Toro 132-5161-01

TUBE-MOUNT, FUEL TANK

$68.99

$

Usually ships in 3-6 days

0

20

Toro 132-1145-03

BRACKET-CROSS

$50.99

$

Usually ships in 3-6 days

0

21

Toro 117-3591

DECAL-COMMERCIAL

$15.99

$

In Stock, only 2 left!

0

22

Toro 114-1925

BUMPER-RUBBER

$26.99

$

In Stock, only 1 left!

0

23

Toro 114-1926

BUMPER-RUBBER

$28.99

$

In Stock, Qty 10

0

24

Toro 121-7988-01

FORK-CASTER

$201.99

$

In Stock, Qty 20+

0

25

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

26

Toro 1-543509

BEARING-ROLLER, TAPERED

$13.99

$

In Stock, Qty 20+

0

27

Toro 116-5647

SEAL-GREASE

$5.49

$

In Stock, Qty 20+

0

28

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

29

Toro 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

34

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 10

0

35

Toro 3290-271

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

36

Toro 3233-7

SCREW-CARR

$19.99

$

Usually ships in 3-6 days

0

37

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

39

Toro 133-4662-03

A-FRAME

$1365.99

$

Usually ships in 3-6 days

0

40

Toro 127-0649-01

BRACKET-CYLINDER

$17.99

$

Usually ships in 3-6 days

0

41

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 15

0

43

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

52

Toro 132-7578-01

GUARD-FAN, RH

$36.99

$

Usually ships in 3-6 days

0

53

Toro 132-7598-01

GUARD-FAN, LH

$25.99

$

Usually ships in 3-6 days

0

58

Toro 133-5320-01

BRACKET-LOCK

$93.99

$

Usually ships in 3-6 days

0

59

Toro 133-2021

PIN-HITCH

$51.99

$

Usually ships in 3-6 days

0

60

Toro 87-8460

BUMPER-RUBBER

$2.49

$

In Stock, only 3 left!

0

61

Toro 92-2762

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

62

Toro 126-5060

DECAL-LOGO, TORO

$8.49

$

Usually ships in 3-6 days

0

77

Toro 133-4648

DECAL SERVICE-MULTIFORCE

$23.99

$

Usually ships in 3-6 days

0

78

Toro 116-6758

SPACER

$13.99

$

In Stock, only 3 left!

0
