74529 - Toro 52" GrandStand Multi-Force Stand-On Mower (SN: 316000001 - 316999999) (2016) 52 INCH DECK ASSEMBLY Parts Diagram

52" GrandStand Multi-Force Stand-On Mower

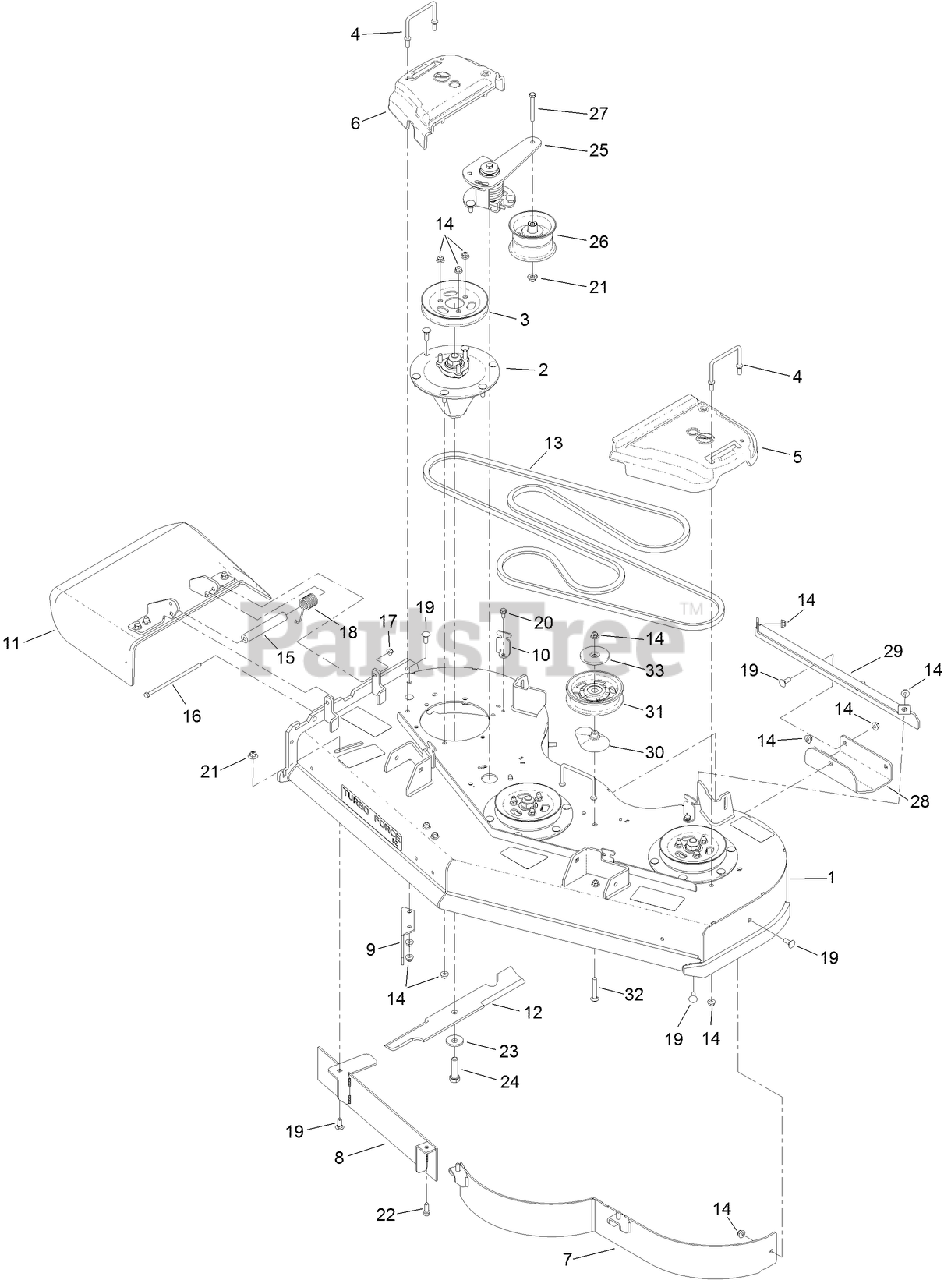

52 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 127-1936

DECK ASM

$2392.99

$

Usually ships in 3-6 days

0

2

Toro 127-0560

SPINDLE ASM

$518.99

$

In Stock, only 4 left!

0

3

Toro 120-6433

PULLEY

$44.99

$

In Stock, only 2 left!

0

4

Toro 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

5

Toro 109-6936

COVER-BELT, LH

$38.99

$

In Stock, only 1 left!

0

6

Toro 109-6935

COVER-BELT, RH

$38.99

$

In Stock, only 1 left!

0

7

Toro 114-1979-01

BAFFLE-52 INCH

$271.99

$

Usually ships in 3-6 days

0

8

Toro 121-1790-01

BAFFLE

$132.99

$

Usually ships in 3-6 days

0

9

Toro 130-6594-01

BAFFLE-DISCHARGE

$21.99

$

Usually ships in 3-6 days

0

10

Toro 117-5758-03

BRACKET-COVER

$13.99

$

Usually ships in 3-6 days

0

11

Toro 120-2451

DEFLECTOR ASM

$239.99

$

Usually ships in 3-6 days

0

12

Toro 105-7781-03

BLADE-18IN, HI FLOW

$28.99

$

In Stock, Qty 13

0

13

Toro 131-1122

BELT-V
(Superseded to 145-3482)

$163.99

$

In Stock, only 3 left!

0

14

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

16

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

17

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

18

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

19

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 14

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

23

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 18

0

24

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

25

Toro 130-1812

TORSION IDLER ASM
(Superseded to 145-3450)

$240.99

$

In Stock, only 1 left!

0

26

Toro 127-1971

PULLEY-IDLER

$126.99

$

In Stock, only 2 left!

0

27

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

28

Toro 114-1908-01

SKID

$84.99

$

Usually ships in 3-6 days

0

29

Toro 130-6648-01

BRACKET-SKID

$56.99

$

Usually ships in 3-6 days

0

30

Toro 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 4 left!

0

31

Toro 132-5156

IDLER-PULLEY, FLAT
(Superseded to 136-5405)

$48.99

$

In Stock, only 1 left!

0

32

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, only 4 left!

0

33

Toro 132-5154

SHIELD-DUST

$14.99

$

In Stock, only 2 left!

0
