74527 - Toro 52" GrandStand Multi-Force Stand-On Mower (SN: 400000000 - 999999999) MOTION CONTROL ASSEMBLY Parts Diagram

52" GrandStand Multi-Force Stand-On Mower

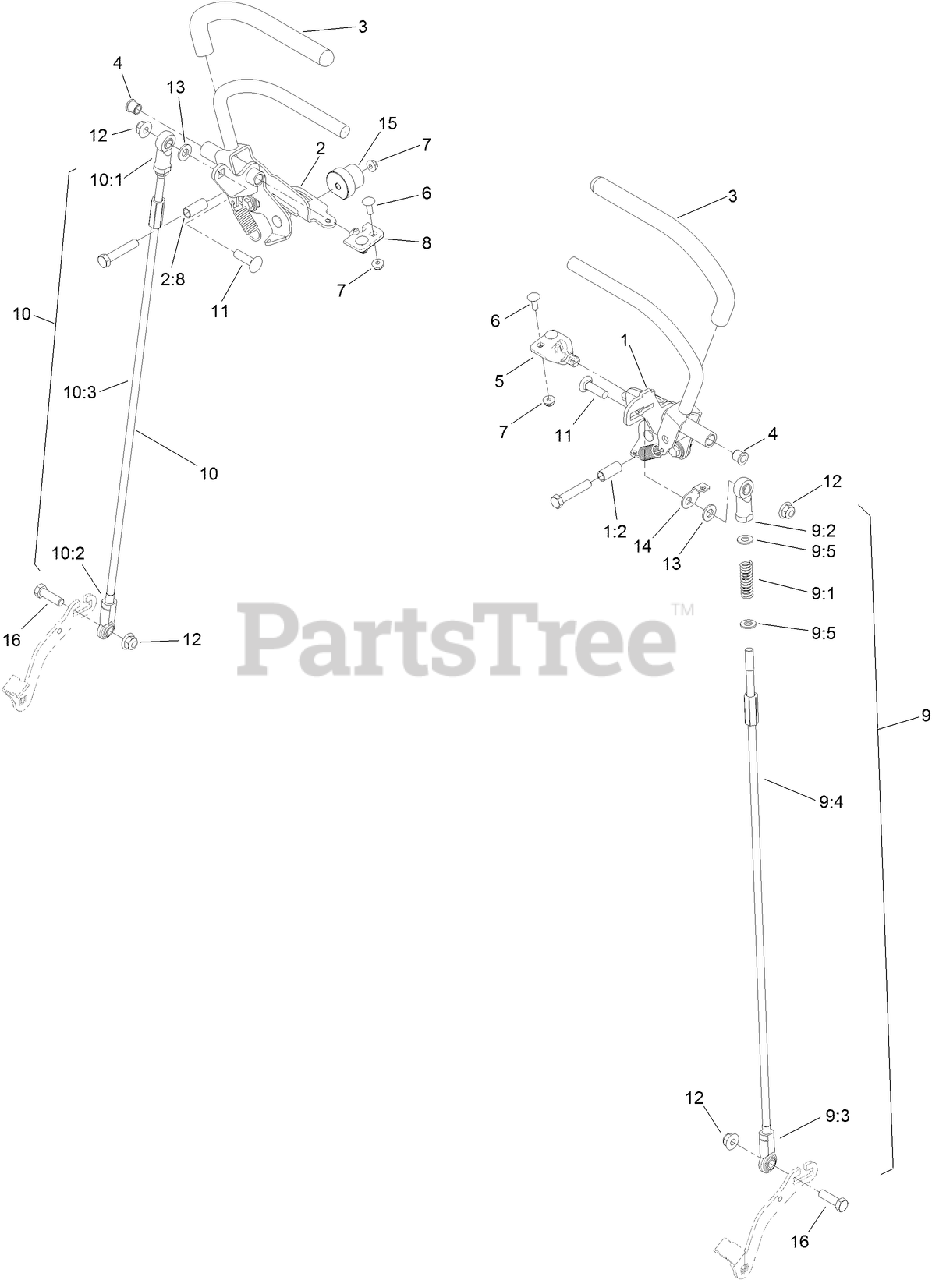

MOTION CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 132-5157

LH CONTROL HANDLE ASM

$168.99

$

Usually ships in 3-6 days

0

1:2

Toro 131-3562

BEARING-SLEEVE

$1.99

$

Usually ships in 3-6 days

0

2

Toro 132-5158

RH CONTROL HANDLE ASM

$168.99

$

Usually ships in 3-6 days

0

2:8

Toro 131-3562

BEARING-SLEEVE

$1.99

$

Usually ships in 3-6 days

0

3

Toro 119-0222

GRIP

$9.49

$

Usually ships in 3-6 days

0

4

Toro 103-9928

BEARING

$7.99

$

In Stock, Qty 11

0

5

Toro 120-3288

TAB-PIVOT, LH

$13.99

$

In Stock, only 2 left!

0

6

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

7

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 120-3287

TAB-PIVOT, RH

$13.99

$

In Stock, only 2 left!

0

9

Toro 130-1803

LH CONTROL ROD ASM
(Superseded to 138-4619)

$61.99

$

In Stock, only 1 left!

0

9:1

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

9:2

Toro 92-7008

END-ROD, FEMALE

$52.99

$

Usually ships in 3-6 days

0

9:3

Toro 103-1167

JOINT-BALL END, LH

$31.99

$

In Stock, Qty 10

0

9:4

Toro 132-7515

ROD-CONTROL

$14.99

$

Usually ships in 3-6 days

0

9:5

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, only 3 left!

0

10

Toro 130-1807

RH CONTROL ROD ASM
(Superseded to 138-4620)

$52.99

$

Usually ships in 3-6 days

0

10:1

Toro 92-7008

END-ROD, FEMALE

$52.99

$

Usually ships in 3-6 days

0

10:2

Toro 103-1167

JOINT-BALL END, LH

$31.99

$

In Stock, Qty 10

0

10:3

Toro 132-7515

ROD-CONTROL

$14.99

$

Usually ships in 3-6 days

0

11

Toro 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 132-7538

BRACKET-ADJUSTMENT, SPEED

$9.49

$

Usually ships in 3-6 days

0

15

Toro 126-1499

CAM

$7.99

$

Usually ships in 3-6 days

0

16

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0
