74523 - Toro 60" GrandStand Multi-Force Stand-On Mower (SN: 403294044 - 404313999) RH Transaxle Assembly No. 136-4102 Parts Diagram

60" GrandStand Multi-Force Stand-On Mower

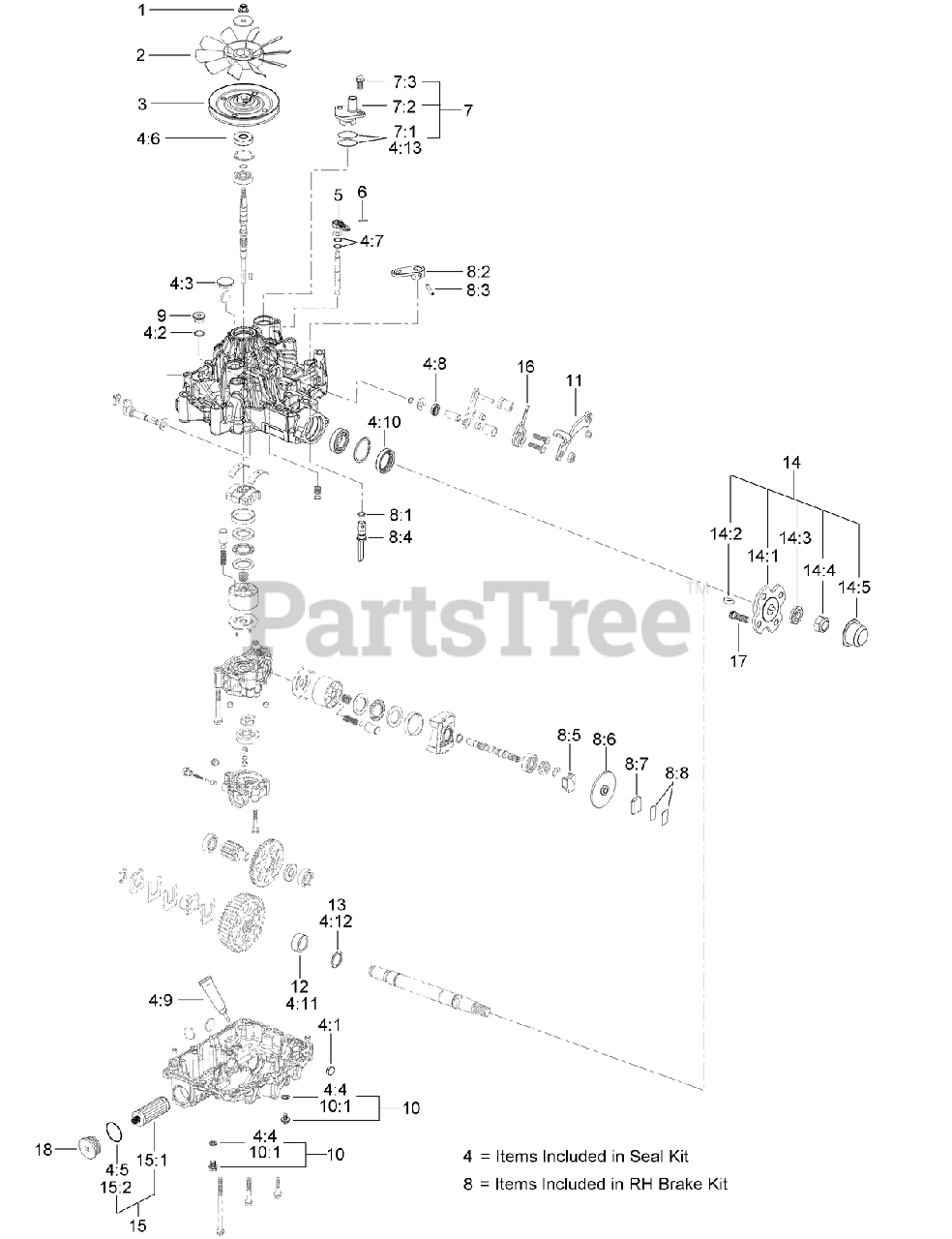

RH Transaxle Assembly No. 136-4102 Parts Diagram

  • Title

1

Toro 132-4737

NUT-LOCK

$2.49

$

Usually ships in 3-6 days

0

2

Toro 132-4738

FAN

$33.99

$

Usually ships in 3-6 days

0

3

Toro 132-4739

PULLEY

$139.99

$

In Stock, only 2 left!

0

4

Toro 138-4628

SEAL KIT

$122.99

$

Usually ships in 3-6 days

0

4:1

Toro 100-6926

CAP-SEALING

$25.99

$

In Stock, only 2 left!

0

4:2

Toro 132-4736

O-RING

$2.99

$

In Stock, only 3 left!

0

4:3

CAP-SEAL

Note: Not serviced separately

$

$

Not available

4:4

Seal-Washer

Note: Not serviced separately

$

$

Not available

4:5

Packing

Note: Not serviced separately

$

$

Not available

4:6

Toro 132-4744

SEAL-SHAFT

$28.99

$

In Stock, only 2 left!

0

4:7

Deck ASM

Note: Not serviced separately

$

$

Not available

4:8

Deck ASM

Note: Not serviced separately

$

$

Not available

4:9

Toro 121-0959

SEALANT

$

$

Not available

4:10

Toro 132-4745

SEAL-AXLE

$33.99

$

In Stock, Qty 7

0

4:11

Toro 132-4747

SLEEVE

$23.99

$

Usually ships in 3-6 days

0

4:12

Toro 132-4748

WASHER

$3.99

$

In Stock, only 1 left!

0

4:13

Packing

Note: Not serviced separately

$

$

Not available

5

Toro 104-3265

PIN

$2.99

$

Usually ships in 3-6 days

0

6

Toro 132-4700

LEVER-BYPASS

$9.99

$

Usually ships in 3-6 days

0

7

Toro 133-1461

EXPANSION FITTING KIT
(Superseded to 139-7871)

$29.99

$

In Stock, only 1 left!

0

7:1

Toro 136-4051

SEAL-FITTING, EXPANSION

$3.99

$

In Stock, Qty 11

0

7:2

Fitting

Note: Not serviced separately

$

$

Not available

7:3

BOLT-FLANGE

Note: Not serviced separately

$

$

Not available

8

Toro 133-1462

RH BRAKE KIT

$119.99

$

Usually ships in 3-6 days

0

8:1

Deck ASM

Note: Not serviced separately

$

$

Not available

8:2

ARM-BRAKE

Note: Not serviced separately

$

$

Not available

8:3

Deck ASM

Note: Not serviced separately

$

$

Not available

8:4

SHAFT-BRAKE

Note: Not serviced separately

$

$

Not available

8:5

ACTUATOR-BRAKE

Note: Not serviced separately

$

$

Not available

8:6

DISC-BRAKE

Note: Not serviced separately

$

$

Not available

8:7

SHOE-BRAKE

Note: Not serviced separately

$

$

Not available

8:8

SHIM KIT

Note: Not serviced separately

$

$

Not available

9

Toro 132-4735

CAP-OIL

$14.99

$

In Stock, Qty 7

0

10

Toro 132-4746

DRAIN BOLT KIT

$6.49

$

Usually ships in 3-6 days

0

10:1

Seal-Washer

Note: Not serviced separately

$

$

Not available

11

Toro 136-5401

LEVER-CONTROL, RH

$66.99

$

Usually ships in 3-6 days

0

12

Toro 132-4747

SLEEVE

$23.99

$

Usually ships in 3-6 days

0

13

Toro 132-4748

WASHER

$3.99

$

In Stock, only 1 left!

0

14

Toro 136-5406

AXLE FLANGE KIT

$244.99

$

Usually ships in 3-6 days

0

14:1

Deck ASM

Note: Not serviced separately

$

$

Not available

14:2

Key-Woodruff

Note: Not serviced separately

$

$

Not available

14:3

Deck ASM

Note: Not serviced separately

$

$

Not available

14:4

Toro 137-4128

NUT-LOCK

$13.99

$

Usually ships in 3-6 days

0

14:5

NUT-CAP

Note: Not serviced separately

$

$

Not available

15

Toro 132-4743

HYDRO FILTER KIT
(Superseded to 144-3842)

$99.99

$

In Stock, Qty 6

0

15:1

Toro 136-5409

FILTER
(Superseded to 144-3842)

$99.99

$

In Stock, Qty 6

0

15:2

Toro 136-5410

O-RING

$1.99

$

Usually ships in 3-6 days

0

16

Toro 137-4109

SPRING-TORSION

$12.99

$

In Stock, Qty 5

0

17

Toro 137-9509

STUD-WHEEL

$27.99

$

Usually ships in 3-6 days

0

18

Toro 138-4613

CAP-OIL FILTER

$11.99

$

Usually ships in 3-6 days

0
