74513 - Toro 60" GrandStand Stand-On Mower (SN: 400000000 - 403224658) 60 Inch Deck Assembly Parts Diagram

60" GrandStand Stand-On Mower

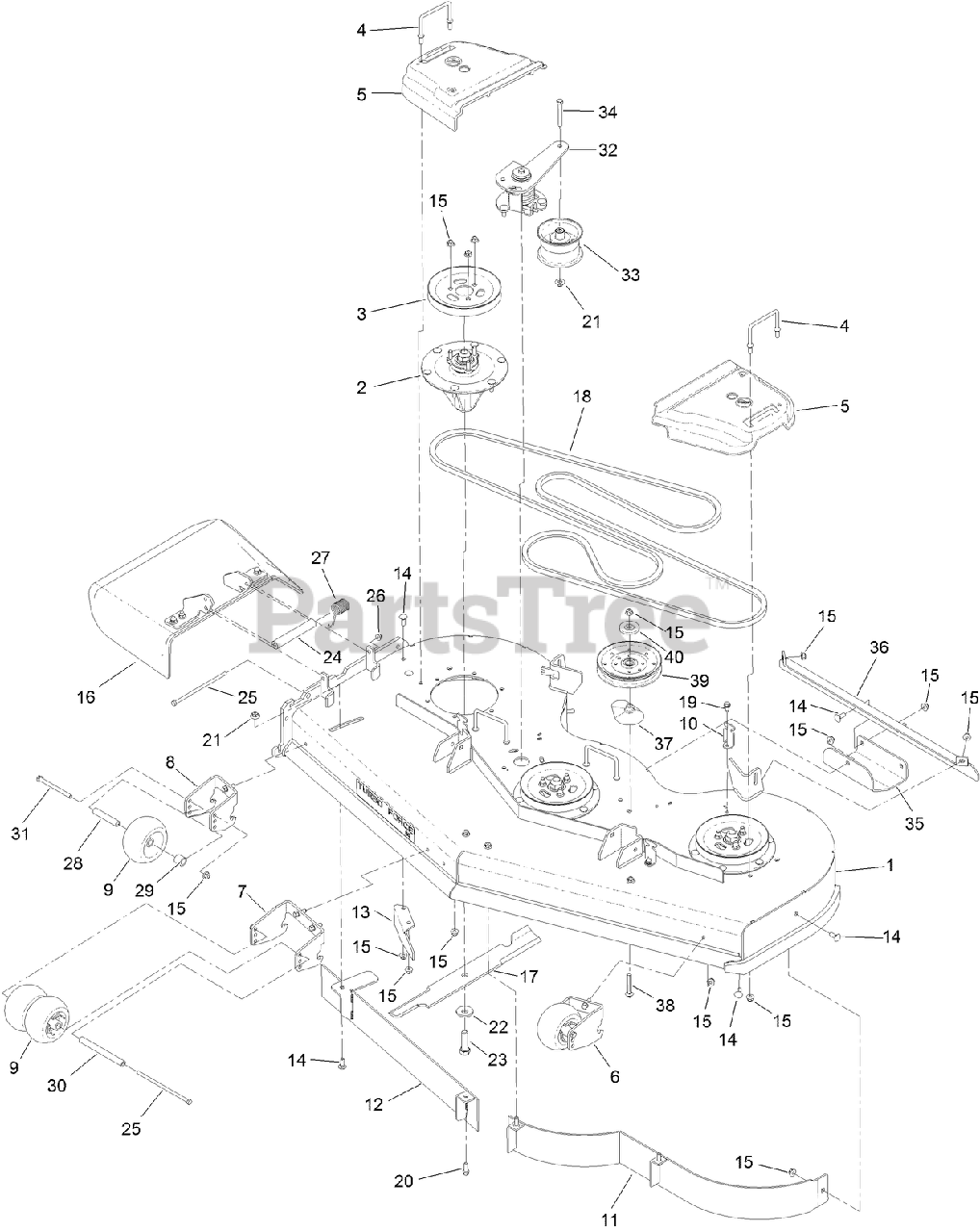

60 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 127-1941

DECK ASM

$2772.99

$

Usually ships in 3-6 days

0

2

Toro 127-0560

SPINDLE ASM

$518.99

$

In Stock, only 2 left!

0

3

Toro 120-6434

PULLEY

$51.99

$

In Stock, only 4 left!

0

4

Toro 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

5

Toro 109-6936

COVER-BELT, LH

$38.99

$

In Stock, only 1 left!

0

6

Toro 114-5204-01

BRACKET-WHEEL, LH

$71.99

$

In Stock, only 3 left!

0

7

Toro 114-5208-01

BRACKET-WHEEL, CENTER

$71.99

$

Usually ships in 3-6 days

0

8

Toro 114-5213-01

BRACKET-WHEEL, RH

$71.99

$

In Stock, only 3 left!

0

9

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

10

Toro 117-5758-03

BRACKET-COVER

$13.99

$

Usually ships in 3-6 days

0

11

Toro 117-9701-01

BAFFLE ASM

$173.99

$

Usually ships in 3-6 days

0

12

Toro 121-1788-01

BAFFLE ASM

$150.99

$

Usually ships in 3-6 days

0

13

Toro 130-6594-01

BAFFLE-DISCHARGE

$21.99

$

Usually ships in 3-6 days

0

14

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

15

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 120-2451

DEFLECTOR ASM

$239.99

$

Usually ships in 3-6 days

0

17

Toro 105-7718-03

BLADE-HI FLOW

$25.99

$

In Stock, Qty 9

0

18

Toro 131-1123

BELT-V

$148.99

$

In Stock, only 1 left!

0

19

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

20

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

21

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 18

0

23

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

24

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

25

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

26

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

27

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

28

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

29

Toro 104-0892

SPACER-AXLE, REAR

$5.49

$

Usually ships in 3-6 days

0

30

Toro 98-5967

SPACER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

31

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

32

Toro 130-1812

See Supercession: 136-7395
(Superseded to 145-3450)

$240.99

$

In Stock, only 1 left!

0

33

Toro 127-1971

PULLEY-IDLER

$126.99

$

In Stock, only 2 left!

0

34

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

35

Toro 114-1908-01

SKID

$84.99

$

Usually ships in 3-6 days

0

36

Toro 130-6647-01

BRACKET-SKID

$81.99

$

Usually ships in 3-6 days

0

37

Toro 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 2 left!

0

38

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, only 3 left!

0

39

Toro 132-5155

See Supercession: 136-5404
(Superseded to 136-5404)

$60.99

$

In Stock, only 1 left!

0

40

Toro 132-5153

SHIELD-DUST

$24.99

$

Usually ships in 3-6 days

0
