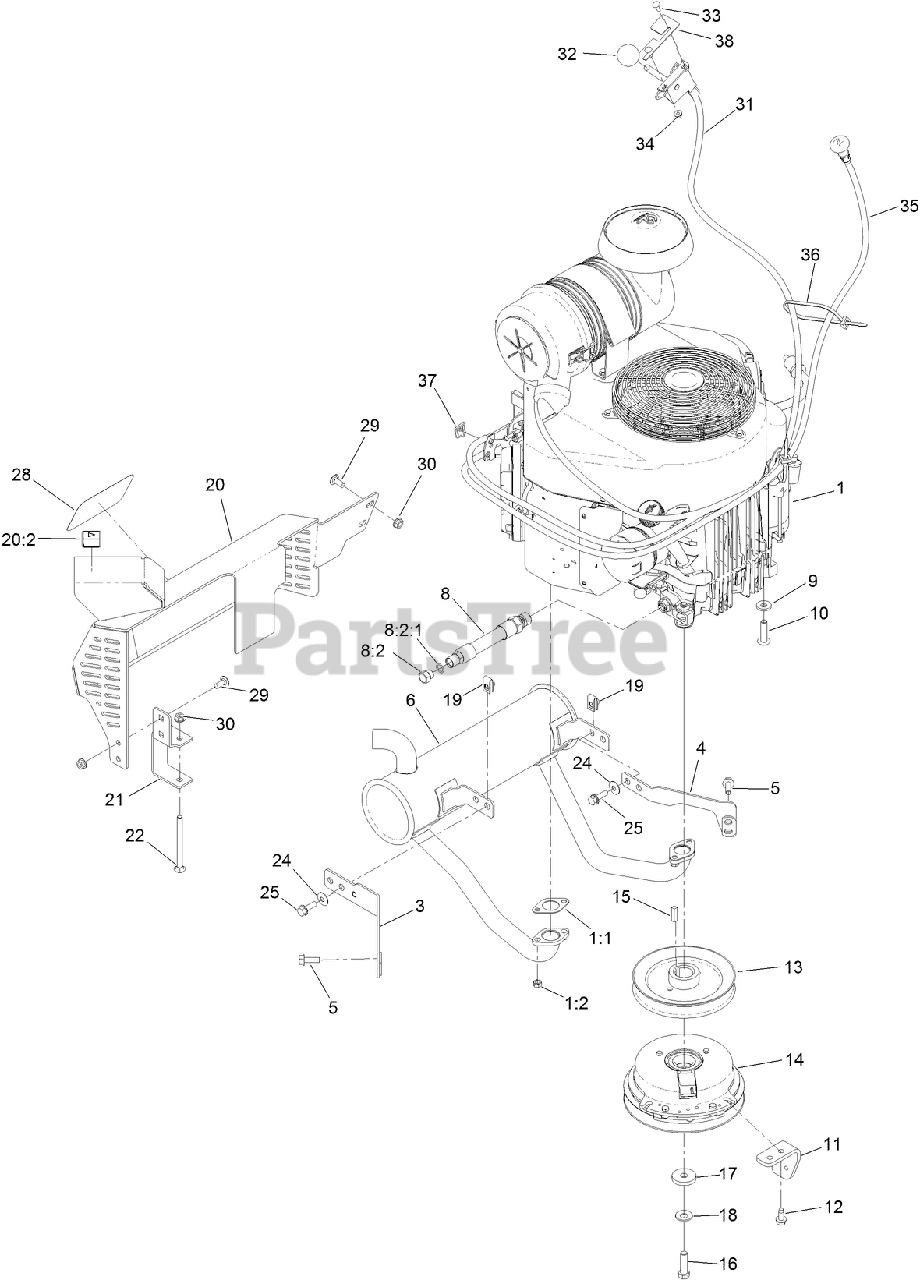

74504 TE - Toro 122cm GrandStand Stand-On Mower (SN: 404320000 - 999999999) Engine Assembly Parts Diagram

122cm GrandStand Stand-On Mower

Engine Assembly Parts Diagram

  • Title

1

Toro 131-3519

ENGINE-KAWASAKI, FX691V

$

$

Not available

1:1

Toro 1-653313

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0

1:2

Toro 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0

3

Toro 132-1173

BRACKET-MUFFLER, FRONT

$41.99

$

Usually ships in 3-6 days

0

4

Toro 132-1174

BRACKET-MUFFLER, REAR

$41.99

$

Usually ships in 3-6 days

0

5

Toro 33104-025

SCREW-HHF

$7.99

$

In Stock, only 2 left!

0

6

Toro 133-4633

MUFFLER

$224.99

$

Usually ships in 3-6 days

0

8

Toro 133-4659

HOSE ASM

$38.99

$

Usually ships in 3-6 days

0

8:2

Toro 353-508

PLUG-HH

$8.49

$

In Stock, Qty 5

0

8:2:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

9

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Toro 126-0983

SCREW-BHTF

$5.49

$

Usually ships in 3-6 days

0

11

Toro 131-3586-03

STOP-CLUTCH

$20.99

$

In Stock, only 2 left!

0

12

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 120-8498

PULLEY

$86.99

$

In Stock, only 3 left!

0

14

Toro 138-8800

CLUTCH-200CMS
(Superseded to 139-7910)

$678.99

$

In Stock, only 3 left!

0

15

Toro 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

16

Toro 321-26

See Supercession: 321-7
(Superseded to 321-7)

$5.49

$

In Stock, Qty 11

0

17

Toro 107-4136

WASHER
(Superseded to 1-543610)

$6.49

$

In Stock, Qty 15

0

18

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

19

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

20

Toro 131-3550

MUFFLER GUARD ASM

$276.99

$

Usually ships in 3-6 days

0

20:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

21

Toro 131-3530-03

BRACKET-MOUNTING, GUARD

$20.99

$

Usually ships in 3-6 days

0

22

Toro 106-9758

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

24

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

25

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

28

Toro 94-2579

DECAL

$12.99

$

Usually ships in 3-6 days

0

29

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

30

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

31

Toro 132-5152

THROTTLE ASM

$

$

Not available

32

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 6

0

33

Toro 1-807533

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

34

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

35

Toro 132-5140

CABLE-CHOKE

$43.99

$

Usually ships in 3-6 days

0

36

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

37

Toro 81-1690

CLAMP-CABLE

$2.99

$

Usually ships in 3-6 days

0

38

Toro 119-1883

PLATE-SET, THROTTLE

$41.99

$

Usually ships in 3-6 days

0

39

Toro 121-4570

FILTER-FUEL

Note: Not illustrated

$12.99

$

In Stock, Qty 20+

0

40

Toro 119-5852

FILTER-OIL
(Superseded to 49065-0721)

Note: Not illustrated

$18.99

$

In Stock, Qty 20+

0
