74504 TE - Toro 122cm GrandStand Stand-On Mower (SN: 316000001 - 316999999) (2016) WHEEL, TIRE AND BEARING ASSEMBLY NO. 130-4558 Parts Diagram

122cm GrandStand Stand-On Mower

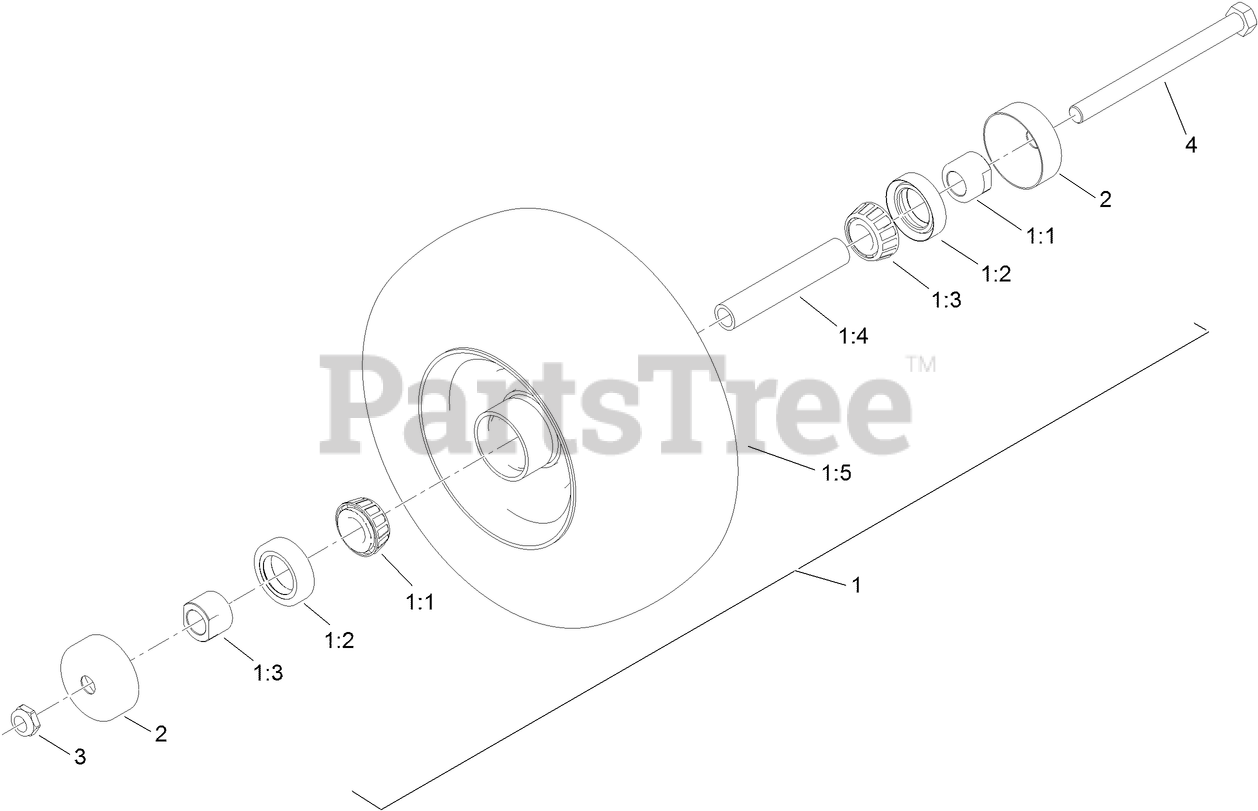

WHEEL, TIRE AND BEARING ASSEMBLY NO. 130-4558 Parts Diagram

  • Title
1

WHEEL AND BEARING ASM

Note: Not serviced separately

$

$

Not available

1:1

Toro 1-633585

BEARING-CONE, TAPER

$21.99

$

In Stock, Qty 20+

0

1:2

Toro 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 6

0

1:3

Toro 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on spacer nut

$9.49

$

In Stock, Qty 12

0

1:4

Toro 103-3157

AXLE-CASTER
(Superseded to 126-5359)

$18.99

$

In Stock, only 2 left!

0

1:5

Toro 130-4563

WHEEL AND TIRE ASM

$180.99

$

In Stock, only 2 left!

0

2

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

3

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

4

Toro 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0
