74504 TE - Toro 122cm GrandStand Stand-On Mower (SN: 316000001 - 316999999) (2016) DECK ASSEMBLY Parts Diagram

122cm GrandStand Stand-On Mower

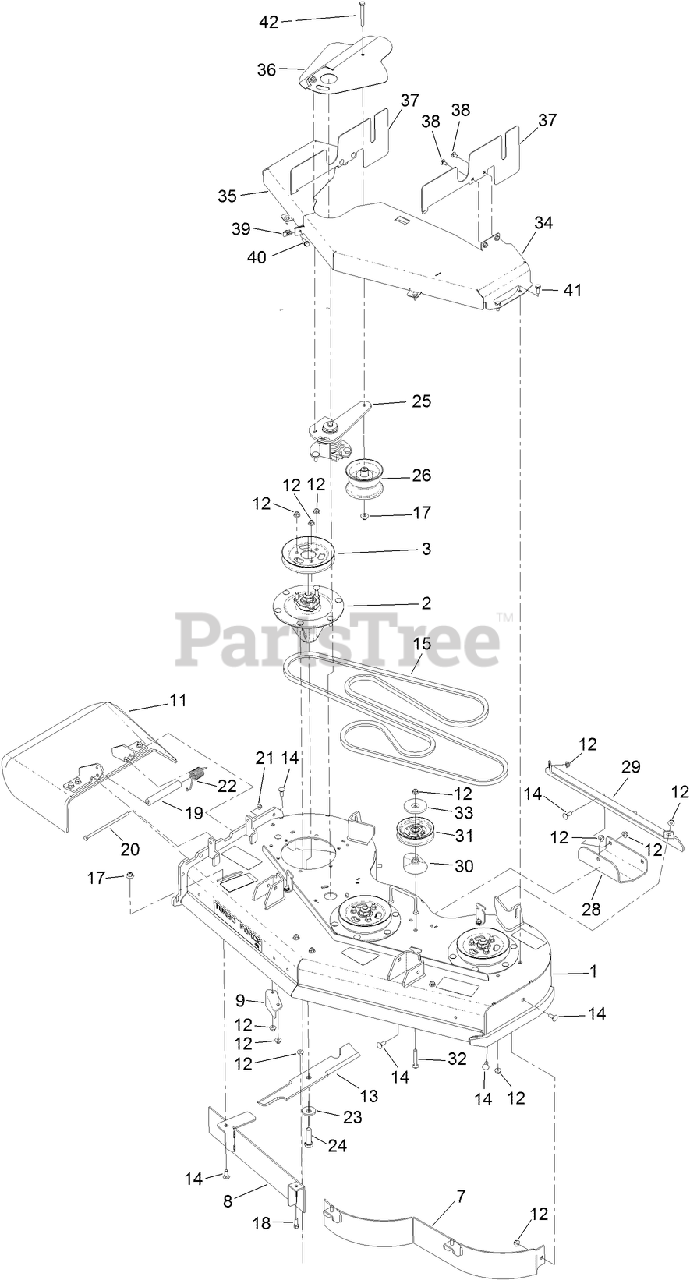

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 127-1931

DECK ASM

$1866.99

$

Usually ships in 3-6 days

0

2

Toro 127-0560

SPINDLE ASM

$514.99

$

In Stock, only 4 left!

0

3

Toro 120-6433

PULLEY

$44.99

$

In Stock, only 3 left!

0

7

Toro 117-0410-01

48 INCH BAFFLE ASM

$263.99

$

Usually ships in 3-6 days

0

8

Toro 121-1790-01

BAFFLE

$127.99

$

Usually ships in 3-6 days

0

9

Toro 107-8541-01

BAFFLE-DISCHARGE

$20.99

$

Usually ships in 3-6 days

0

11

Toro 120-2451

DEFLECTOR ASM

$232.99

$

Usually ships in 3-6 days

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 107-3192-03

BLADE-16.5 INCH (HIGH FLOW)

$27.99

$

In Stock, only 4 left!

0

14

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

15

Toro 131-1121

BELT-V

$151.99

$

In Stock, Qty 7

0

17

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, only 4 left!

0

18

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

19

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

20

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

21

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 108-4052

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

23

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 19

0

24

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

25

Toro 130-1812

TORSION IDLER ASM
(Superseded to 145-3450)

$234.99

$

In Stock, only 1 left!

0

26

Toro 127-1971

PULLEY-IDLER

$126.99

$

In Stock, only 3 left!

0

28

Toro 114-1908-01

SKID

$82.99

$

Usually ships in 3-6 days

0

29

Toro 130-6649-01

BRACKET-SKID

$72.99

$

Usually ships in 3-6 days

0

30

Toro 109-2872

SPACER-PULLEY

$22.99

$

Usually ships in 3-6 days

0

31

Toro 132-7543

IDLER-PULLEY, FLAT
(Superseded to 132-4718)

$34.99

$

In Stock, only 3 left!

0

32

Toro 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 18

0

33

Toro 132-5154

SHIELD-DUST

$13.99

$

In Stock, only 2 left!

0

34

Toro 133-4624-01

COVER-BELT, LH (CE)

$

$

Currently unavailable

35

Toro 133-4625-01

COVER-BELT, RH (CE)

$

$

Currently unavailable

36

Toro 133-4623-01

COVER-IDLER (CE)

$

$

Currently unavailable

37

Toro 133-4642-01

COVER-SIDE, LH (CE)

$

$

Currently unavailable

38

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 8

0

39

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

40

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

41

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

42

Toro 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0
