74502 (Z 16-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 220000001 - 220999999) (2002) OIL FILTER, TUBE AND PUMP ASSEMBLY BRIGGS AND STRATTON 31E777-0126-E1 Parts Diagram

44" TimeCutter Zero-Turn Mower

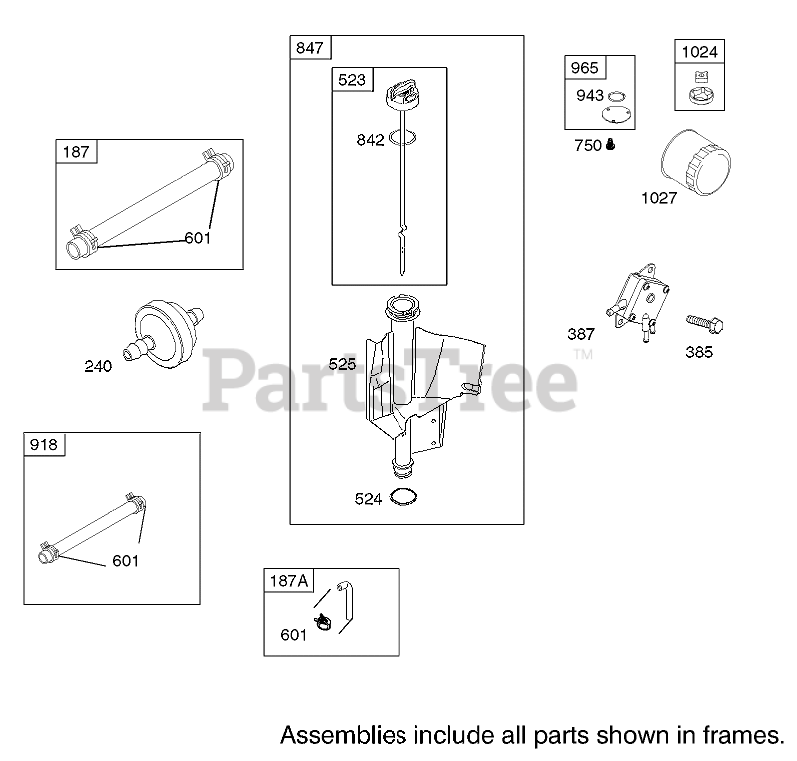

OIL FILTER, TUBE AND PUMP ASSEMBLY BRIGGS AND STRATTON 31E777-0126-E1 Parts Diagram

  • Title

187

Briggs & Stratton 691050

Line-Fuel (Cut to Required Length)
(Superseded to 791766)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 697098

Line-Fuel
(Superseded to 791805)

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 394358

Filter-Fuel
(Superseded to 394358S)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

385

Briggs & Stratton 694476

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 1 left!

0

387

Briggs & Stratton 697090

Pump?Fuel

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

523

Briggs & Stratton 697086

Dipstick
(Superseded to 699908)

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, Qty 6

0

524

Briggs & Stratton 691032

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 691032

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$5.99

$

In Stock, only 1 left!

0

525

Briggs & Stratton 697085

Tube?Dipstick

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

In Stock, only 1 left!

0

601

Briggs & Stratton 95162

Clamp-Hose
(Superseded to 791850)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

750

Briggs & Stratton 691033

Screw
(Superseded to 790832)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

842

Briggs & Stratton 691031

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

842

Briggs & Stratton 691031

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 697087

Dipstick/Tube ASM
(Superseded to 790443)

Note: Obtain parts from www.briggsandstratton.com

$55.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 697091

Vacuum?Line
(Superseded to 791851)

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 1 left!

0

943

Briggs & Stratton 690589

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$8.99

$

In Stock, Qty 20+

0

943

Briggs & Stratton 690589

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 20+

0

965

Briggs & Stratton 499613

Cover-Pump, Oil

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, Qty 10

0

1024

Briggs & Stratton 499054

Pump-Oil
(Superseded to 794644)

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

In Stock, only 1 left!

0

1027

Briggs & Stratton 492932

Filter-Oil
(Superseded to 492932S)

Note: Obtain parts from www.briggsandstratton.com

$12.99

$

In Stock, Qty 20+

0
