74502 (Z 16-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 220000001 - 220999999) (2002) BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON 31E777-0126-E1 Parts Diagram

44" TimeCutter Zero-Turn Mower

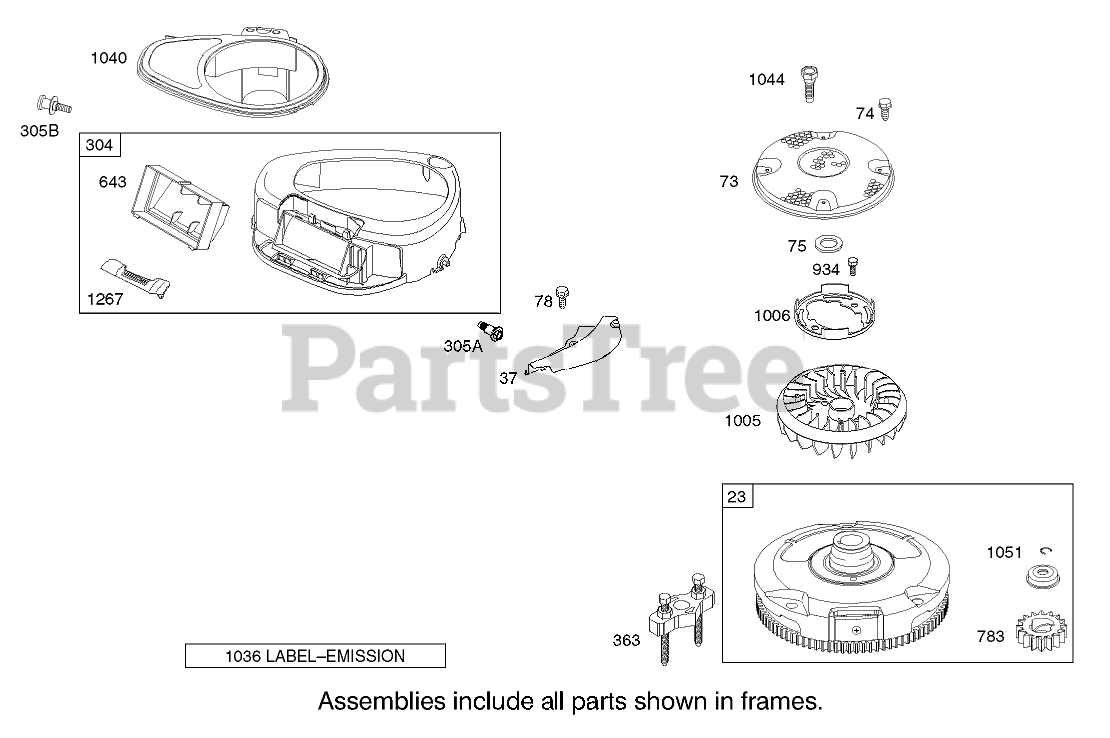

BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON 31E777-0126-E1 Parts Diagram

  • Title

23

Briggs & Stratton 693556

Flywheel
(Superseded to 595094)

Note: Obtain parts from www.briggsandstratton.com

$238.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 697108

Guard?Flywheel

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 697133

Screen-Rotating

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

74

Briggs & Stratton 690661

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 8

0

75

Briggs & Stratton 690582

Washer-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 4 left!

0

78

Briggs & Stratton 690661

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 8

0

304

Briggs & Stratton 697137

Housing-Blower
(Superseded to 698804)

Note: Obtain parts from www.briggsandstratton.com

$126.99

$

Usually ships in 2-12 days

0

305A

Briggs & Stratton 697102

Screw
(Superseded to 596718)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

305B

Briggs & Stratton 697103

Screw
(Superseded to 799370)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 4 left!

0

363

Briggs & Stratton 19203

Puller-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$23.99

$

In Stock, only 1 left!

0

643

Briggs & Stratton 697155

Retainer-Air Filter

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

In Stock, only 1 left!

0

934

Briggs & Stratton 690372

Screw
(Superseded to 791680)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 6

0

1005

Briggs & Stratton 697111

Fan?Flywheel

Note: Obtain parts from www.briggsandstratton.com

$25.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 690452

Retainer-Fan

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 695700

Label?Emission

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

1040

Toro 697142

Plate-Trim

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1044

Briggs & Stratton 691658

Screw-Crankshaft Extension
(Superseded to 698139)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 7

0

1051

Briggs & Stratton 691265

Ring-Retaining

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

1267

Briggs & Stratton 697135

Latch-Blower Housing
(Superseded to 697662)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

Usually ships in 2-12 days

0
