74502 (17-44 ZX) - Toro 44" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) STARTER ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 31F777-0161-E1 Parts Diagram

44" TimeCutter Zero-Turn Mower

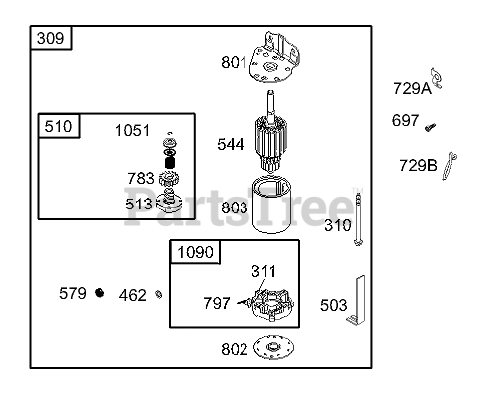

STARTER ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 31F777-0161-E1 Parts Diagram

  • Title
309

Briggs & Stratton 693551

Motor-Starter
(Superseded to 593934)

Note: Obtain parts from www.briggsandstratton.com

$131.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 690323

Bolt

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 497608

Brush Set

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

In Stock, only 3 left!

0

462

Briggs & Stratton 691261

Washer

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 3 left!

0

503

Briggs & Stratton 691532

Strap-Starter

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 693699

Drive-Starter
(Superseded to 593934)

Note: Obtain parts from www.briggsandstratton.com

$131.99

$

In Stock, Qty 20+

0

513

Briggs & Stratton 692024

Clutch-Drive

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

In Stock, only 2 left!

0

544

Briggs & Stratton 692034

Armature-Starter

Note: Obtain parts from www.briggsandstratton.com

$82.99

$

Usually ships in 2-12 days

0

579

Briggs & Stratton 691029

Nut

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 690372

Screw
(Superseded to 791680)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 6

0

729A

Briggs & Stratton 691224

Clip-Wire

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

729B

Briggs & Stratton 694123

Clip?Wire

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

In Stock, only 1 left!

0

797

Briggs & Stratton 693167

Nut

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691283

Cap-Drive

Note: Obtain parts from www.briggsandstratton.com

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

Cap-End

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 693757

Housing-Starter

Note: Obtain parts from www.briggsandstratton.com

$25.99

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 691265

Ring-Retaining

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

1090

Briggs & Stratton 691293

Retainer-Brush

Note: Obtain parts from www.briggsandstratton.com

$29.99

$

In Stock, Qty 6

0
