74502 (17-44 ZX) - Toro 44" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) CRANKCASE ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 31F777-0161-E1 Parts Diagram

44" TimeCutter Zero-Turn Mower

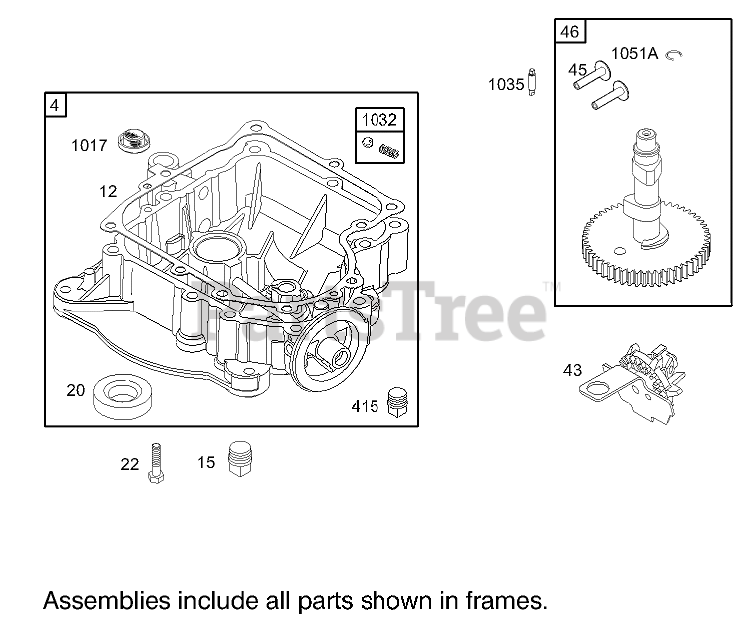

CRANKCASE ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 31F777-0161-E1 Parts Diagram

  • Title
4

Briggs & Stratton 697188

Sump-Engine
(Superseded to 592849)

Note: Obtain parts from www.briggsandstratton.com

$250.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 697110

Gasket-Crankcase

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 697110

Gasket-Crankcase

Note: Included in Engine Gasket Set-Ref. 358.

$7.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 690946

Plug-Drain, Oil

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 14

0

20

Briggs & Stratton 690947

Seal-Oil
(Superseded to 795387)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

20

Briggs & Stratton 690947

Seal-Oil
(Superseded to 795387)

Note: Included in Engine Gasket Set-Ref. 358.

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 692125

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 4 left!

0

43

Briggs & Stratton 691968

Slinger-Governor, Oil

Note: Obtain parts from www.briggsandstratton.com

$37.99

$

In Stock, Qty 20+

0

45

Briggs & Stratton 690564

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton 693450

Camshaft
(Superseded to 793880)

Note: Obtain parts from www.briggsandstratton.com

$96.99

$

In Stock, Qty 20+

0

415

Briggs & Stratton 690283

Plug-Oil
(Superseded to 794903)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

1017

Briggs & Stratton 690770

Screen-Pump, Oil

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1032

Briggs & Stratton 491710

Ball?Pump, Oil

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

1035

Briggs & Stratton 693784

Shaft-Pump, Oil
(Superseded to 794644)

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

In Stock, only 1 left!

0

1051A

Toro 698802

Ring-Retaining

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
