74501 (Z 16-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 220000001 - 220999999) (2002) GOVERNOR ASSEMBLY BRIGGS AND STRATTON 311777-0117-E1 Parts Diagram

44" TimeCutter Zero-Turn Mower

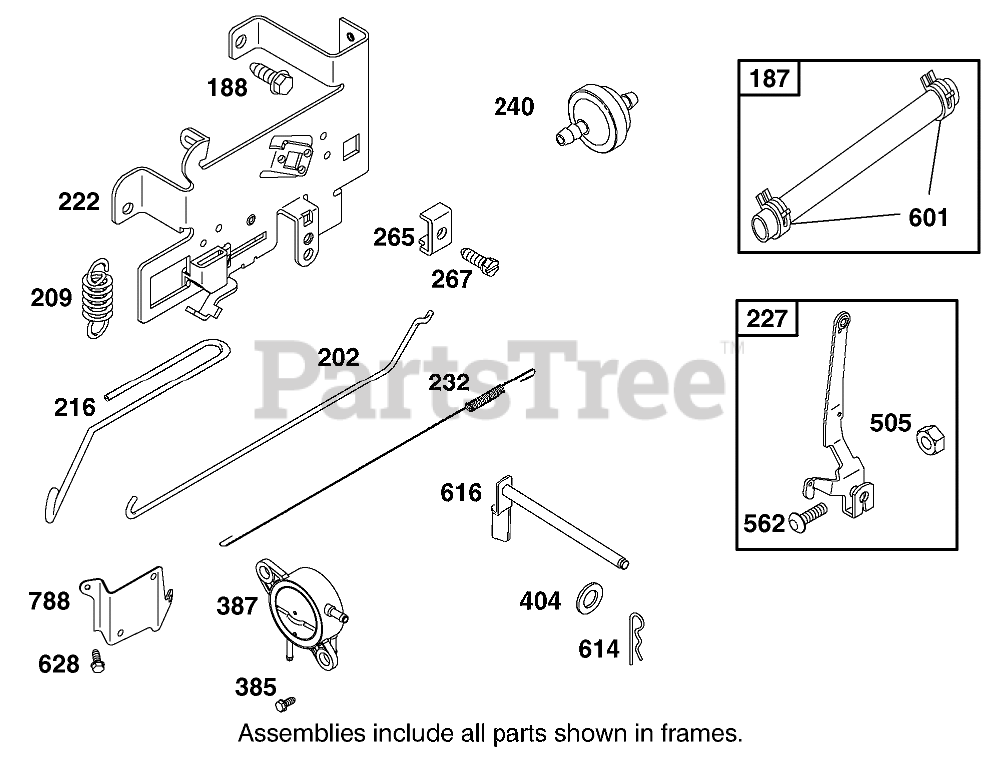

GOVERNOR ASSEMBLY BRIGGS AND STRATTON 311777-0117-E1 Parts Diagram

  • Title

187

Briggs & Stratton 691050

Line-Fuel (Cut to Required Length)
(Superseded to 791766)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 691693

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 9

0

202

Briggs & Stratton 691841

Link-Governor, Mechanical

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, Qty 17

0

209

Briggs & Stratton 692208

Spring-Governor
(Superseded to 796260)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 15

0

216

Briggs & Stratton 691840

Link-Choke

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 20+

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

Note: Obtain parts from www.briggsandstratton.com

$38.99

$

In Stock, Qty 20+

0

227

Briggs & Stratton 691374

Lever-Control, Governor

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

In Stock, only 2 left!

0

232

Briggs & Stratton 691842

Spring-Link, Governor

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, Qty 20+

0

240

Briggs & Stratton 394358

Filter-Fuel
(Superseded to 394358S)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 691024

Clamp-Casing

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 690804

Screw

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

385

Briggs & Stratton 690960

Screw
(Superseded to 691108)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

387

Briggs & Stratton 808656

Pump-Fuel
(Superseded to 597338)

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

In Stock, Qty 20+

0

404

Briggs & Stratton 691691

Washer

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 5

0

505

Briggs & Stratton 691251

Nut

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 691119

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 17

0

601

Briggs & Stratton 95162

Clamp-Hose
(Superseded to 791850)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

614

Briggs & Stratton 691620

Pin-Cotter

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692012

Crank-Governor

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, only 2 left!

0

628

Briggs & Stratton 690661

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

788

Briggs & Stratton 692133

Bracket-Fuel Pump

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

Usually ships in 2-12 days

0
