74501 (Z 16-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 220000001 - 220999999) (2002) GASKET ASSEMBLY BRIGGS AND STRATTON 311777-0117-E1 Parts Diagram

44" TimeCutter Zero-Turn Mower

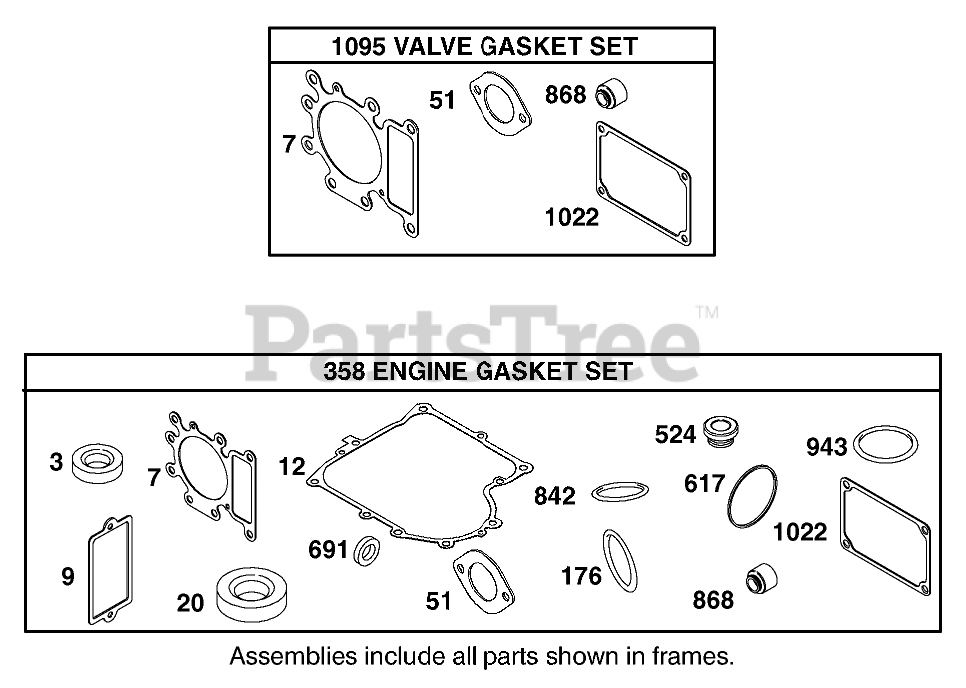

GASKET ASSEMBLY BRIGGS AND STRATTON 311777-0117-E1 Parts Diagram

  • Title
3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 692410

Gasket-Cylinder Head
(Superseded to 796584)

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 692226

Crankcase Gasket (.015 Thick)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 4 left!

0

Briggs & Stratton 692406

Crankcase Gasket (.005 Thick)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 692405

Crankcase Gasket (.009 Thick)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, only 1 left!

0

20

Briggs & Stratton 291675

Seal-Oil
(Superseded to 291675S)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

176

Briggs & Stratton 690456

Flywheel Guard

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 690189

Gasket Set

Note: Obtain parts from www.briggsandstratton.com

$86.99

$

In Stock, only 1 left!

0

617

Briggs & Stratton 692138

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 16

0

691

Briggs & Stratton 692407

Seal-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 8

0

842

Briggs & Stratton 691870

O Ring Seal (Dipstick Tube)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, Qty 20+

0

943

Briggs & Stratton 690589

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 272475

Gasket-Cover, Rocker
(Superseded to 272475S)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

1095

Briggs & Stratton 690190

Set-Valve Gasket
(Superseded to 794152)

Note: Obtain parts from www.briggsandstratton.com

$31.99

$

In Stock, Qty 20+

0
