74501 (Z 16-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 220000001 - 220999999) (2002) CYLINDER ASSEMBLY BRIGGS AND STRATTON 311777-0117-E1 Parts Diagram

44" TimeCutter Zero-Turn Mower

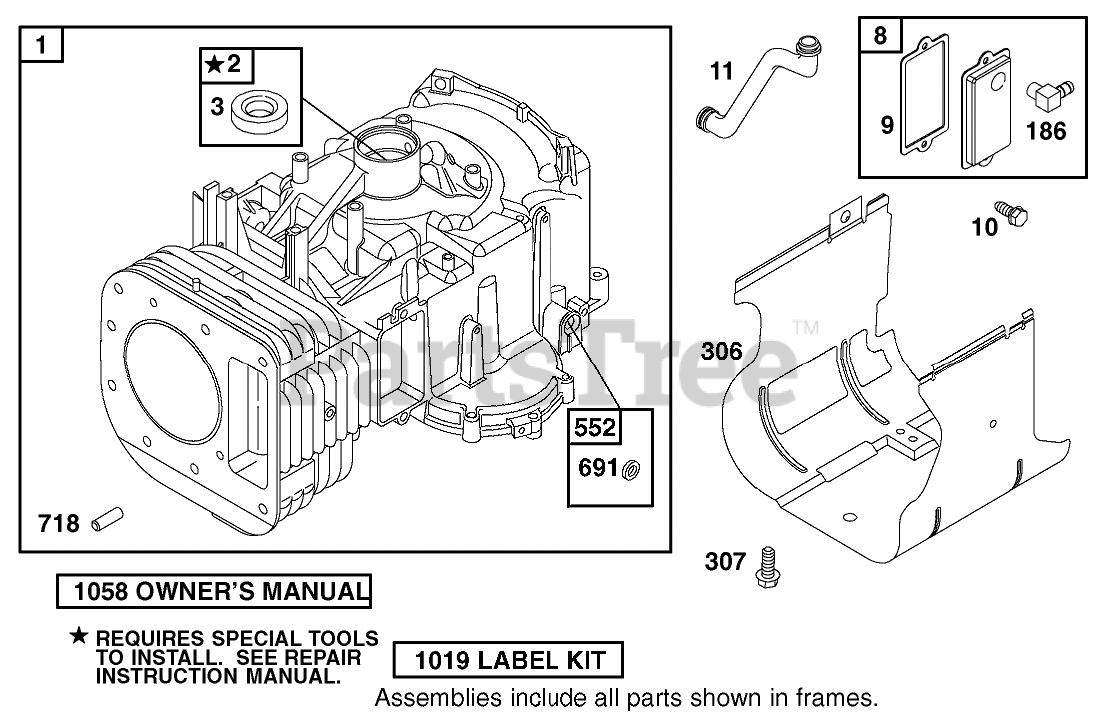

CYLINDER ASSEMBLY BRIGGS AND STRATTON 311777-0117-E1 Parts Diagram

  • Title
1

Briggs & Stratton 690156

Cylinder Assembly

Note: Obtain parts from www.briggsandstratton.com

$451.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 399265

Bushing and Seal Kit
(Superseded to 797673)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

8

Briggs & Stratton 696126

Breather Assembly

Note: Obtain parts from www.briggsandstratton.com

$106.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 691666

Screw-Hex.

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 691328

Breather Tube

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

In Stock, only 1 left!

0

186

Briggs & Stratton 691609

Connector-Hose

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 7

0

306

Briggs & Stratton 690499

Cylinder Shield
(Superseded to 698454)

Note: Obtain parts from www.briggsandstratton.com

$47.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691003

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

552

Briggs & Stratton 491986

Bushing-Crank, Governor

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

691

Briggs & Stratton 692407

Seal-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 8

0

718

Briggs & Stratton 690959

Pin-Locating

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

1019

Briggs & Stratton 690180

Kit-Label

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 274789

Owner-s Manual

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available
