74501 (Z 16-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 220000001 - 220999999) (2002) CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 311777-0117-E1 Parts Diagram

44" TimeCutter Zero-Turn Mower

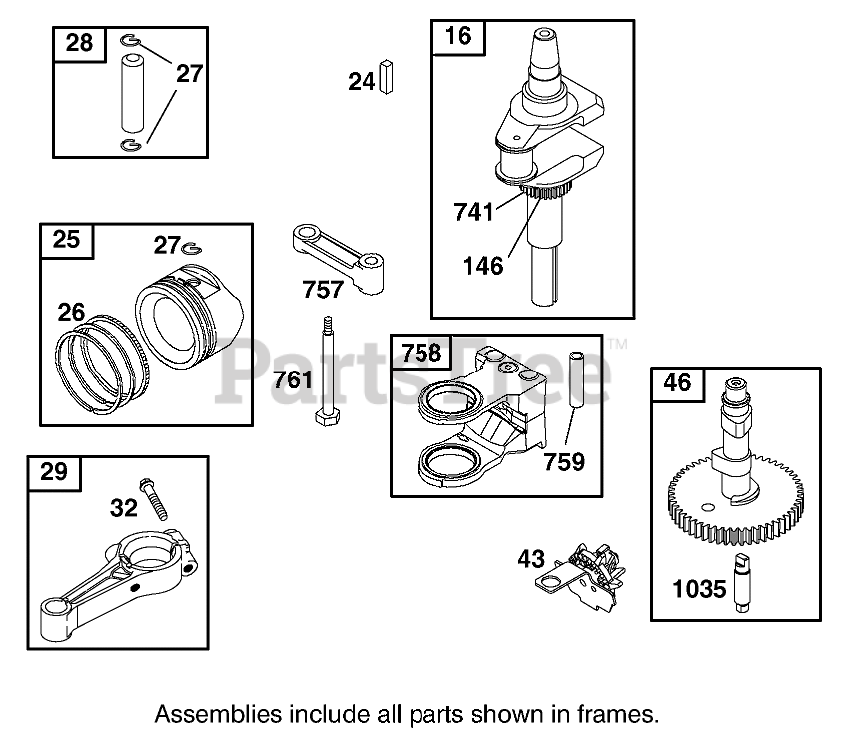

CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 311777-0117-E1 Parts Diagram

  • Title

16

Briggs & Stratton 690136

Crankshaft

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 692271

Piston Assembly (Standard)
(Superseded to 697069)

Note: Obtain parts from www.briggsandstratton.com

$110.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692272

Piston Assy. (.010" O.S.)

Note: Obtain parts from www.briggsandstratton.com

$63.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692273

Piston Assy. (.O2O" O.S.)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

Briggs & Stratton 692274

Piston Assy. (.030" O.S.)

Note: Obtain parts from www.briggsandstratton.com

$106.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 690162

Ring Set (Std)

Note: Obtain parts from www.briggsandstratton.com

$67.99

$

In Stock, only 4 left!

0

Briggs & Stratton 690164

Ring Set (.010" O.S.)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

Briggs & Stratton 690166

Ring Set (.020" O.S.)

Note: Obtain parts from www.briggsandstratton.com

$36.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 690168

Ring Set (.030" O.S.)

Note: Obtain parts from www.briggsandstratton.com

$39.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691299

Lock-Piston Pin

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 498319

Pin-Piston (Std.)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 498320

Pin-Piston (.005 O.S.)

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 692419

Connecting Rod (Std)

Note: Obtain parts from www.briggsandstratton.com

$149.99

$

Usually ships in 2-12 days

0

Toro 499940

Connecting Rod (.020" Undersize)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

32

Briggs & Stratton 692852

Screw
(Superseded to 791118)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 4 left!

0

43

Briggs & Stratton 691968

Slinger-Governor, Oil

Note: Obtain parts from www.briggsandstratton.com

$37.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton 693450

Camshaft
(Superseded to 793880)

Note: Obtain parts from www.briggsandstratton.com

$96.99

$

In Stock, Qty 20+

0

146

Briggs & Stratton 691639

Key-Timing

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 5

0

741

Briggs & Stratton 691284

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

757

Briggs & Stratton 691714

Counteweight Link

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

758

Briggs & Stratton 692423

Counterweight

Note: Obtain parts from www.briggsandstratton.com

$222.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 691239

Counterweight Pin

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, only 1 left!

0

761

Briggs & Stratton 691096

Screw (Counterweight)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

1035

Briggs & Stratton 693784

Shaft-Pump, Oil
(Superseded to 794644)

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

In Stock, only 1 left!

0
