74501 (Z 16-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 220000001 - 220999999) (2002) CARBURETOR OVERHAUL KIT ASSEMBLY BRIGGS AND STRATTON 311777-0117-E1 Parts Diagram

44" TimeCutter Zero-Turn Mower

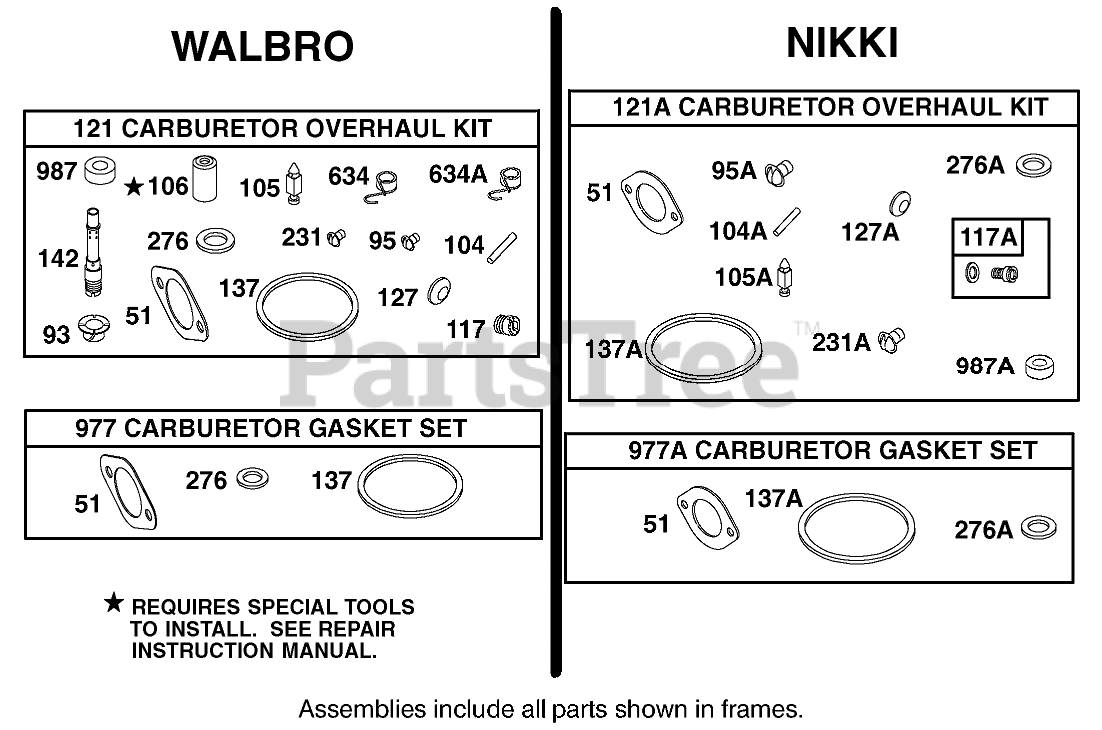

CARBURETOR OVERHAUL KIT ASSEMBLY BRIGGS AND STRATTON 311777-0117-E1 Parts Diagram

  • Title
51

Briggs & Stratton 692137

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

93

Briggs & Stratton 690602

Bushing-Shaft, Throttle

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 691636

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

95A

Briggs & Stratton 690718

Screw

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 690525

Pin-Hinge, Carburetor Float

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 1 left!

0

104A

Briggs & Stratton 694918

Pin-Hinge, Float

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 231855

Valve-Needle, Float
(Superseded to 231855S)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0

105A

Briggs & Stratton 694922

Float Needle Valve
(Superseded to 696136)

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

In Stock, Qty 20+

0

106

Briggs & Stratton 691780

Seat?Inlet

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 2 left!

0

117

Briggs & Stratton 692408

Jet-Main (Standard)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 695415

Jet-Main

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 695416

Jet-Main (High Altitude)

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 690191

Carburetor Kit

Note: Obtain parts from www.briggsandstratton.com

$69.99

$

Usually ships in 2-12 days

0

121A

Briggs & Stratton 695427

Kit-Carburetor Overhaul

Note: Obtain parts from www.briggsandstratton.com

$67.99

$

In Stock, Qty 8

0

127

Briggs & Stratton 695005

Plug-Welch

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 1 left!

0

127A

Briggs & Stratton 690727

Plug-Welch

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

137A

Briggs & Stratton 695426

Gasket-Float Bowl

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, Qty 20+

0

142

Briggs & Stratton 692412

Nozzle-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$30.99

$

In Stock, only 3 left!

0

231

Briggs & Stratton 691636

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

231A

Briggs & Stratton 690718

Screw

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 692255

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

276A

Briggs & Stratton 695410

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, Qty 15

0

634

Briggs & Stratton 690801

Spring / Seal ASM

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 690802

Spring and Seal Asm

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

977

Briggs & Stratton 690192

Carburetor Gasket Set
(Superseded to 497535)

Note: Obtain parts from www.briggsandstratton.com

$67.99

$

In Stock, only 2 left!

0

977A

Briggs & Stratton 695428

Set-Carburetor Gasket
(Superseded to 695427)

Note: Obtain parts from www.briggsandstratton.com

$67.99

$

In Stock, Qty 8

0

987

Briggs & Stratton 691326

Seal-Shaft, Throttle

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

987A

Briggs & Stratton 690998

Seal-Shaft, Choke/Throttle

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0
