74501 (Z 16-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 220000001 - 220999999) (2002) AIR CLEANER ASSEMBLY BRIGGS AND STRATTON 311777-0117-E1 Parts Diagram

44" TimeCutter Zero-Turn Mower

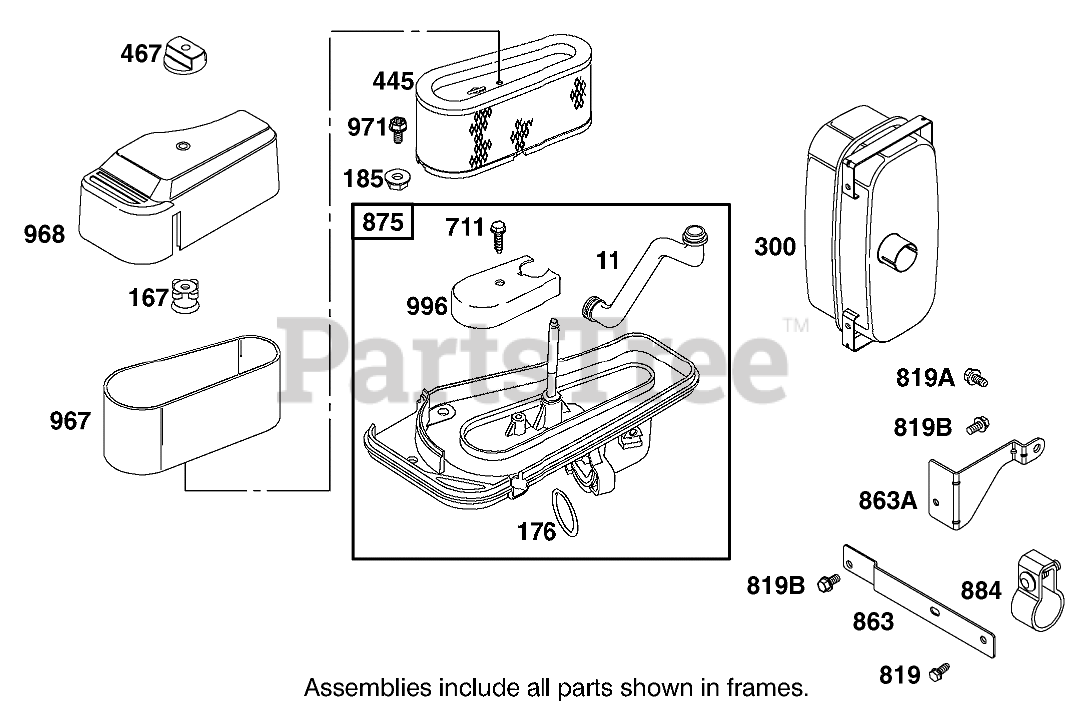

AIR CLEANER ASSEMBLY BRIGGS AND STRATTON 311777-0117-E1 Parts Diagram

  • Title
11

Briggs & Stratton 691328

Breather Tube

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

In Stock, only 1 left!

0

167

Briggs & Stratton 692297

Seal-Air Cleaner Nut

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

176

Briggs & Stratton 690456

Flywheel Guard

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

Usually ships in 2-12 days

0

185

Briggs & Stratton 690958

Nut

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 3 left!

0

300

Briggs & Stratton 690850

Muffler

Note: Obtain parts from www.briggsandstratton.com

$139.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 496894

Filter-Air
(Superseded to 496894S)

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

In Stock, only 3 left!

0

467

Briggs & Stratton 691668

Knob-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 1 left!

0

711

Briggs & Stratton 690703

Screw (Carburetor Shield)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

819

Briggs & Stratton 690297

Screw (Fuel Pump)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 12

0

819A

Briggs & Stratton 691678

Screw (Muffler Bracket)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

819B

Briggs & Stratton 691676

Screw (Muffler Bracket)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

863

Briggs & Stratton 691204

Bracket-Muffler

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

863A

Briggs & Stratton 691205

Bracket-Muffler

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

875

Briggs & Stratton 696129

Air Cleaner Base

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

884

Briggs & Stratton 690853

Clamp-Muffler

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

Usually ships in 2-12 days

0

967

Briggs & Stratton 272403

Filter-Air
(Superseded to 272403S)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 18

0

968

Briggs & Stratton 692502

Air Cleaner Cover

Note: Obtain parts from www.briggsandstratton.com

$31.99

$

Usually ships in 2-12 days

0

971

Briggs & Stratton 692129

Screw-Torx Hex.

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

996

Briggs & Stratton 690678

Carburetor Shield

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 1 left!

0
