74501 (Z 16-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 210000001 - 210999999) (2001) PARKING BRAKE ASSEMBLY Parts Diagram

44" TimeCutter Zero-Turn Mower

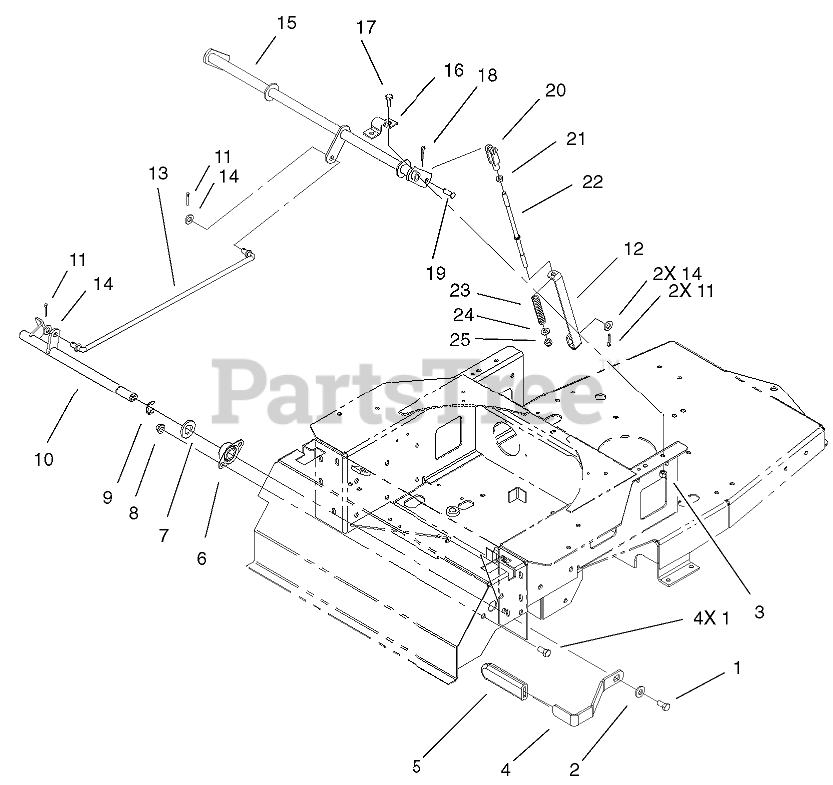

PARKING BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 14

0

2

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 100-7346-03

HANDLE-BRAKE, PARK

$

$

Not available

5

Toro 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 11

0

6

Toro 1-633102

BEARING-FLANGE, SIDE

$19.99

$

In Stock, only 3 left!

0

7

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

8

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 13

0

10

Toro 100-7318

BRAKE SHAFT ASM

$

$

Not available

11

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

12

Toro 104-3675

BRACKET-SPRING, BRAKE

$54.99

$

Usually ships in 3-6 days

0

13

Toro 104-8046

ROD-BRAKE, UPPER

$

$

Not available

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 104-3670-03

SHAFT-BRAKE

$

$

Not available

16

Toro 88-4730

CLAMP-PIVOT, HOC

$6.49

$

Usually ships in 3-6 days

0

17

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

19

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 19

0

20

Toro 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 4 left!

0

21

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

22

Toro 104-3674

ROD-BRAKE, UPPER

$16.99

$

Usually ships in 3-6 days

0

23

Toro 38-4520

SPRING

$19.99

$

In Stock, only 2 left!

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, only 4 left!

0
