74497 (2000) - Toro 60" Z Master MyRide Zero-Turn Mower (SN: 400000000 - 999999999) Fuel System Assembly Parts Diagram

60" Z Master MyRide Zero-Turn Mower

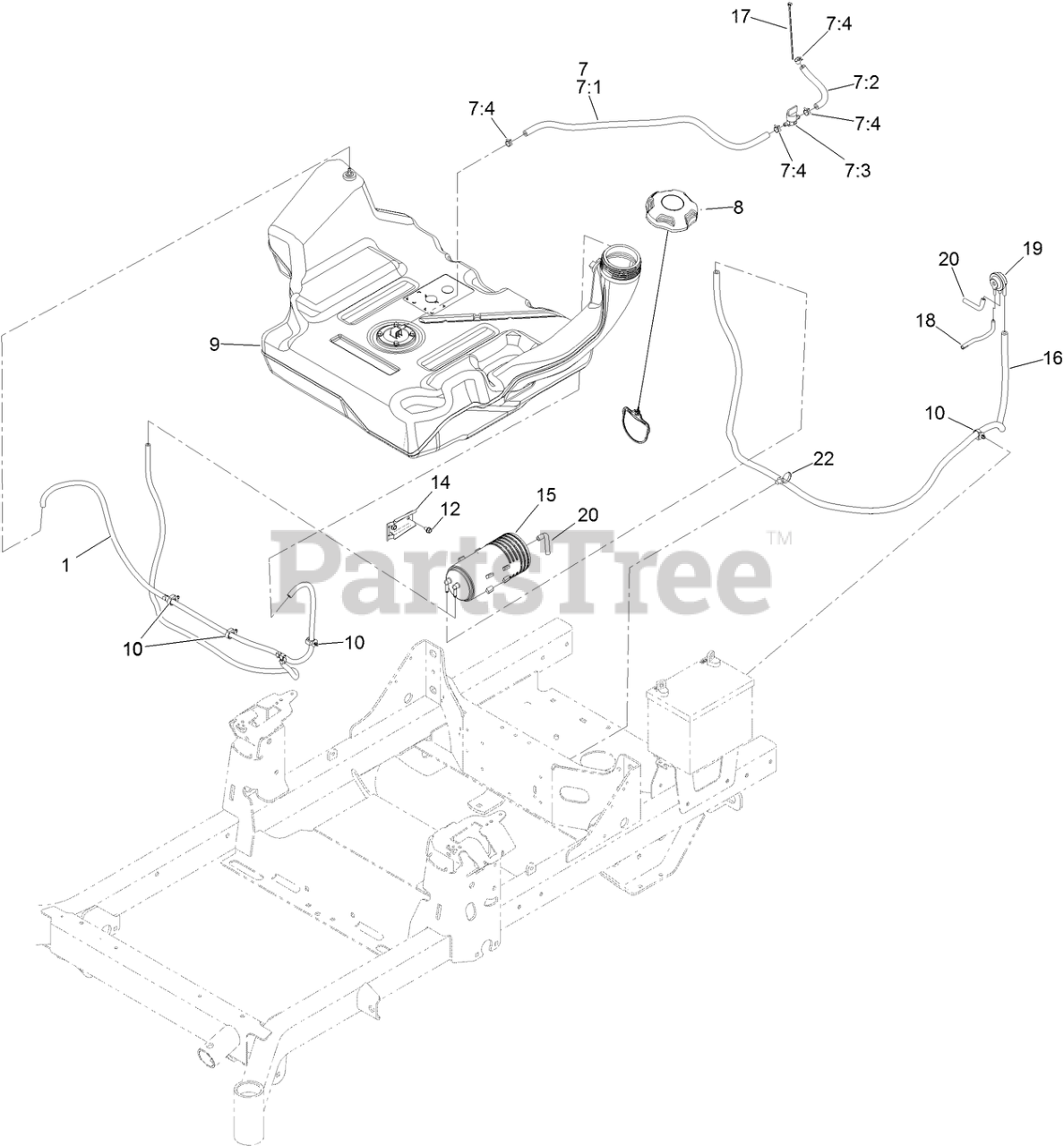

Fuel System Assembly Parts Diagram

  • Title

1

Toro 140-7724

VENT HOSE ASM

$89.99

$

Usually ships in 3-6 days

0

7

Toro 126-8740

FUEL HOSE ASM

$46.99

$

Usually ships in 3-6 days

0

7:1

Toro 109-0302

HOSE-FUEL

$12.99

$

In Stock, only 2 left!

0

7:2

Toro 109-0678

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

7:3

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, only 3 left!

0

7:4

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

8

Toro 135-4801

CAP-FUEL, RATCHETING

$37.99

$

In Stock, only 4 left!

0

9

Toro 126-4724

TANK-FUEL

$456.99

$

Usually ships in 3-6 days

0

10

Toro 126-5523

CLIP

$2.99

$

Usually ships in 3-6 days

0

12

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

14

Toro 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

15

Toro 117-1221

CANISTER-CARBON, 800CC

$75.99

$

Usually ships in 3-6 days

0

16

Toro 108-3682

HOSE-FUEL

$31.99

$

Usually ships in 3-6 days

0

17

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

18

Toro 116-2394

HOSE-VENT, FORMED

$7.99

$

In Stock, only 2 left!

0

19

Toro 116-2232

VALVE-CONTROL, VACUUM

$33.99

$

In Stock, only 3 left!

0

20

Toro 116-2233

HOSE-VENT, FORMED

$7.99

$

Usually ships in 3-6 days

0

22

Toro 32180-118

CLIP-TIE

$1.99

$

Usually ships in 3-6 days

0
