74463 (HD 2000) - Toro 60" Titan Zero-Turn Mower, Rear-Discharge Deck (SN: 403351024 - 404314999) Hydraulic Assembly Parts Diagram

60" Titan Zero-Turn Mower, Rear-Discharge Deck

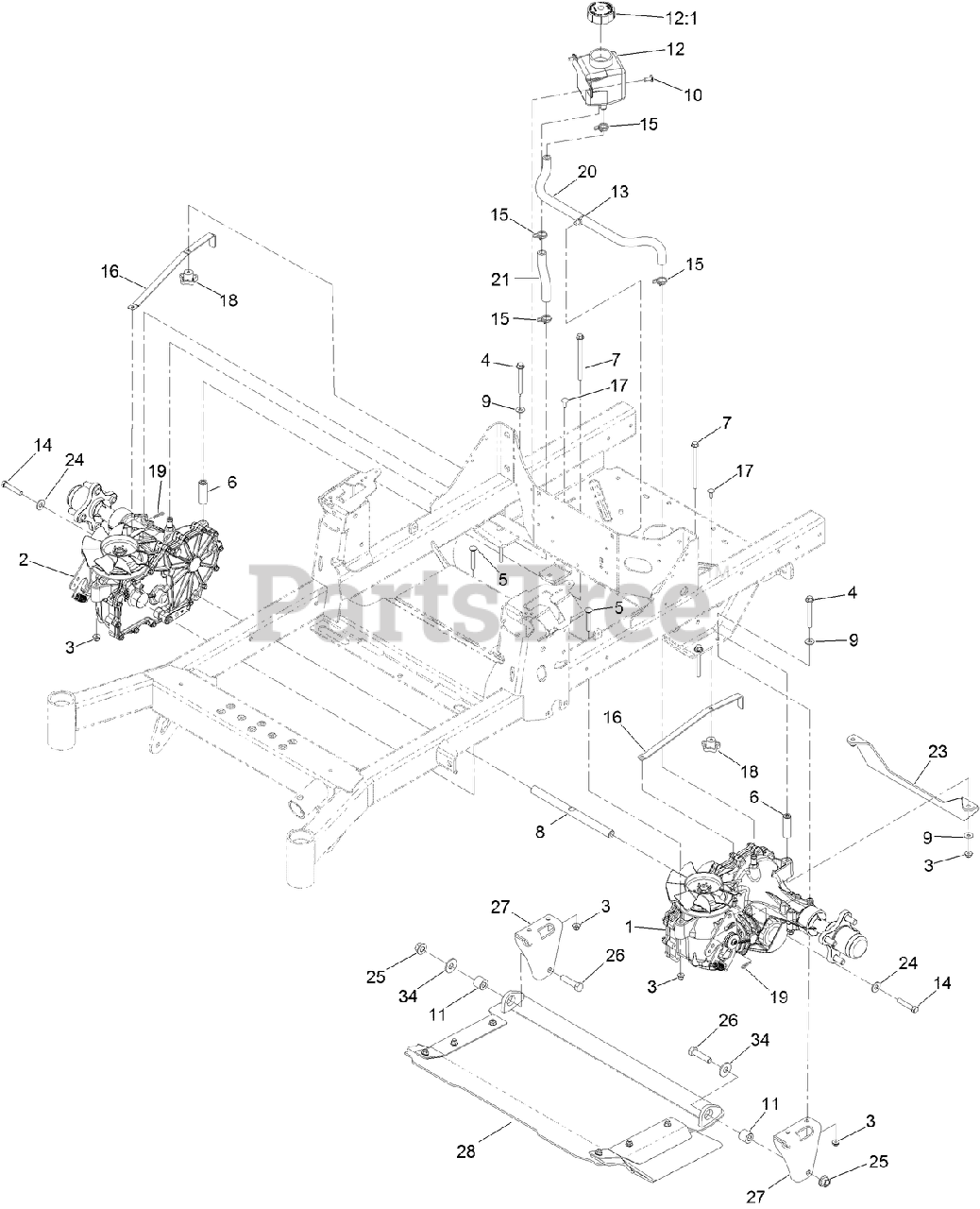

Hydraulic Assembly Parts Diagram

  • Title

1

Toro 126-2883

LH TRANSAXLE ASM

$2038.99

$

Usually ships in 3-6 days

0

2

Toro 126-2884

RH TRANSAXLE ASM

$2038.99

$

Usually ships in 3-6 days

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Toro 126-4687

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

5

Toro 3230-7

BOLT-CARR

$0.99

$

In Stock, Qty 10

0

6

Toro 116-5809

SPACER-HYDRO

$6.49

$

Usually ships in 3-6 days

0

7

Toro 126-5896

SCREW HHF

$2.99

$

Usually ships in 3-6 days

0

8

Toro 116-6833

SHAFT-SPACER

$37.99

$

In Stock, only 2 left!

0

9

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

10

Toro 126-6266

SCREW-TORX

$1.49

$

In Stock, only 2 left!

0

11

Toro 126-1705

BUSHING-SLEEVE

$7.99

$

In Stock, Qty 5

0

12

Toro 109-2250

TANK-HYD

$66.99

$

In Stock, Qty 8

0

12:1

Toro 109-3320

CAP-RESERVOIR, HYD

$28.99

$

In Stock, only 1 left!

0

13

Toro 32180-118

CLIP-TIE

$1.99

$

Usually ships in 3-6 days

0

14

Toro 94-7972

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, only 3 left!

0

15

Toro 126-0327

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

16

Toro 109-5395

ARM-BYPASS, HYDRO

$10.99

$

Usually ships in 3-6 days

0

17

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

18

Toro 108-6402

KNOB-HANDLE

$1.49

$

In Stock, only 3 left!

0

19

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

20

Toro 126-5668

HOSE-HYDRAULIC

$21.99

$

Usually ships in 3-6 days

0

21

Toro 126-5669

HOSE-HYDRAULIC

$8.99

$

Usually ships in 3-6 days

0

23

Toro 126-5672-03

SUPPORT-TRANSMISSION

$72.99

$

Usually ships in 3-6 days

0

24

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

25

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

26

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

0

27

Toro 126-1988-03

BRACKET-MOUNT, DISCHARGE

$24.99

$

Usually ships in 3-6 days

0

28

Toro 126-1985

DISCHARGE TUNNEL ASM

$269.99

$

Usually ships in 3-6 days

0

34

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
