74463 (HD 2000) - Toro 60" Titan Zero-Turn Mower, Rear-Discharge Deck (SN: 403351024 - 404314999) Engine, Clutch and Muffler Assembly Parts Diagram

60" Titan Zero-Turn Mower, Rear-Discharge Deck

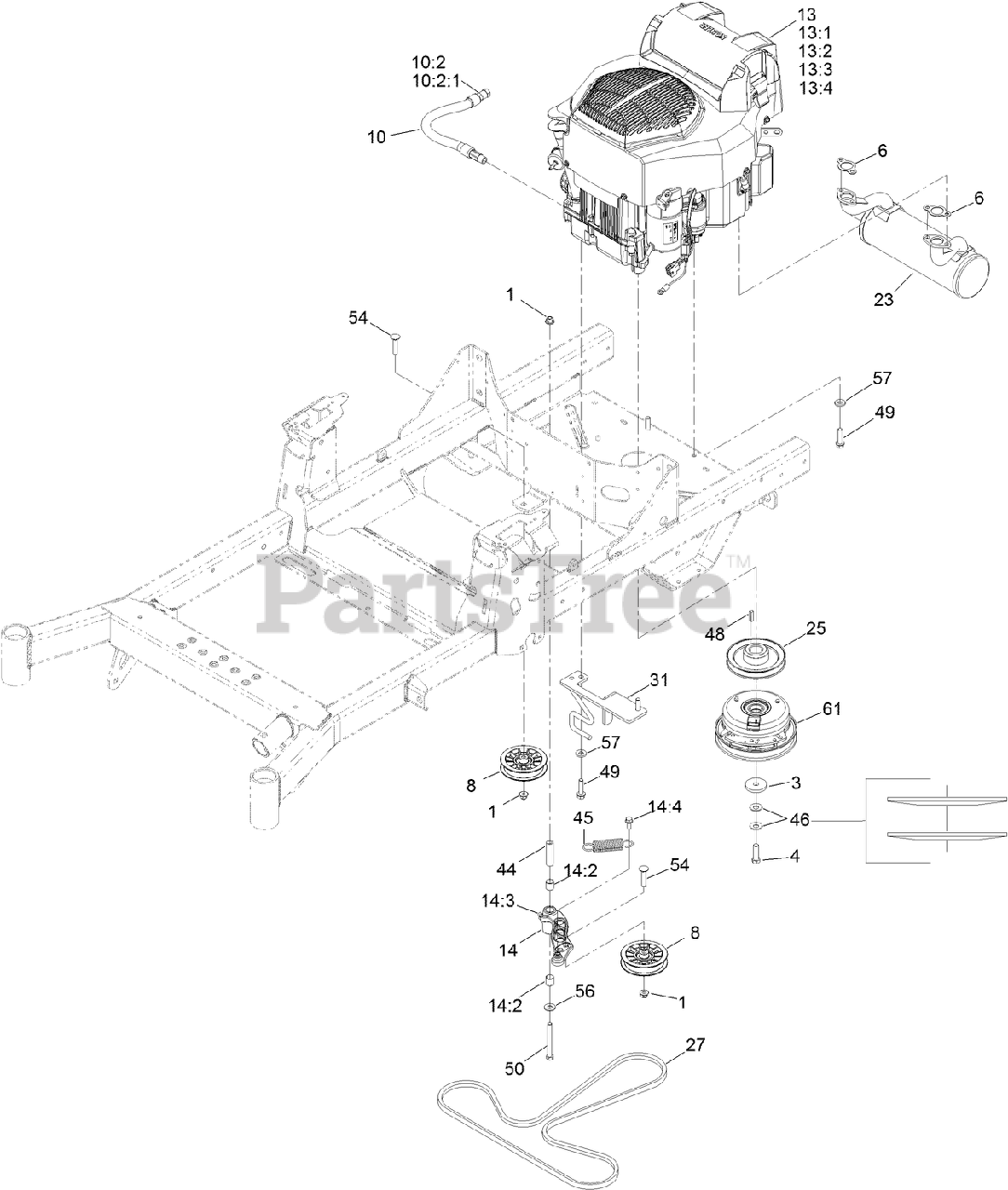

Engine, Clutch and Muffler Assembly Parts Diagram

  • Title

1

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 8

0

4

Toro 109-9761

SCREW-HH, W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 6

0

6

Toro 1-653291

See Supercession: 110-6697
(Superseded to 110-6697)

$

$

Not available

8

Toro 116-2456

PULLEY-FLAT IDLER

$23.99

$

In Stock, Qty 20+

0

10

Toro 116-5108

OIL DRAIN HOSE ASM

Note: Torque to 17-23 ft-lb

$38.99

$

In Stock, only 2 left!

0

10:2

Toro 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$8.49

$

In Stock, only 1 left!

0

10:2:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

13

ENGINE -KOHLER, ZT740-3011

Note: Not serviced separately

$

$

Not available

13:1

KOHLER 16 083 01-S ENGINE AIR FILTER

Note: Not serviced separately

$

$

Not available

13:1

KOHLER 16 083 01-S ENGINE AIR FILTER

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

13:2

KOHLER 52 050 02-S ENGINE OIL FILTER

Note: Not serviced separately

$

$

Not available

13:2

KOHLER 52 050 02-S ENGINE OIL FILTER

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

13:3

KOHLER 24 050 13-S FUEL FILTER

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

13:3

KOHLER 24 050 13-S FUEL FILTER

Note: Not serviced separately

$

$

Not available

13:4

KOHLER 25 083 04-S SAFETY FILTER

Note: Not serviced separately

$

$

Not available

13:4

KOHLER 25 083 04-S SAFETY FILTER

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

14

Toro 126-0973

IDLER ARM ASM

$86.99

$

In Stock, only 1 left!

0

14:2

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

14:3

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

14:4

Toro 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

23

Toro 126-4359

MUFFLER-KOHLER AES

$153.99

$

Usually ships in 3-6 days

0

25

Toro 126-5358

SHEAVE (W/HUB)

$54.99

$

In Stock, only 2 left!

0

27

Toro 126-5993

BELT-V

$50.99

$

Usually ships in 3-6 days

0

31

Toro 126-6688-03

ANCHOR-CLUTCH

$79.99

$

Usually ships in 3-6 days

0

44

Toro 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 18

0

45

Toro 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

46

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

48

Toro 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

49

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

50

Toro 323-15

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

54

Toro 3231-29

SCREW-CARR

$7.49

$

In Stock, only 2 left!

0

56

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

57

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

61

Toro 126-8926

CLUTCH

$412.99

$

Usually ships in 3-6 days

0
