74463 (HD 2000) - Toro 60" Titan Zero-Turn Mower, Rear-Discharge Deck (SN: 400000000 - 402099999) CONTROL CONSOLE AND GUARD ASSEMBLY Parts Diagram

60" Titan Zero-Turn Mower, Rear-Discharge Deck

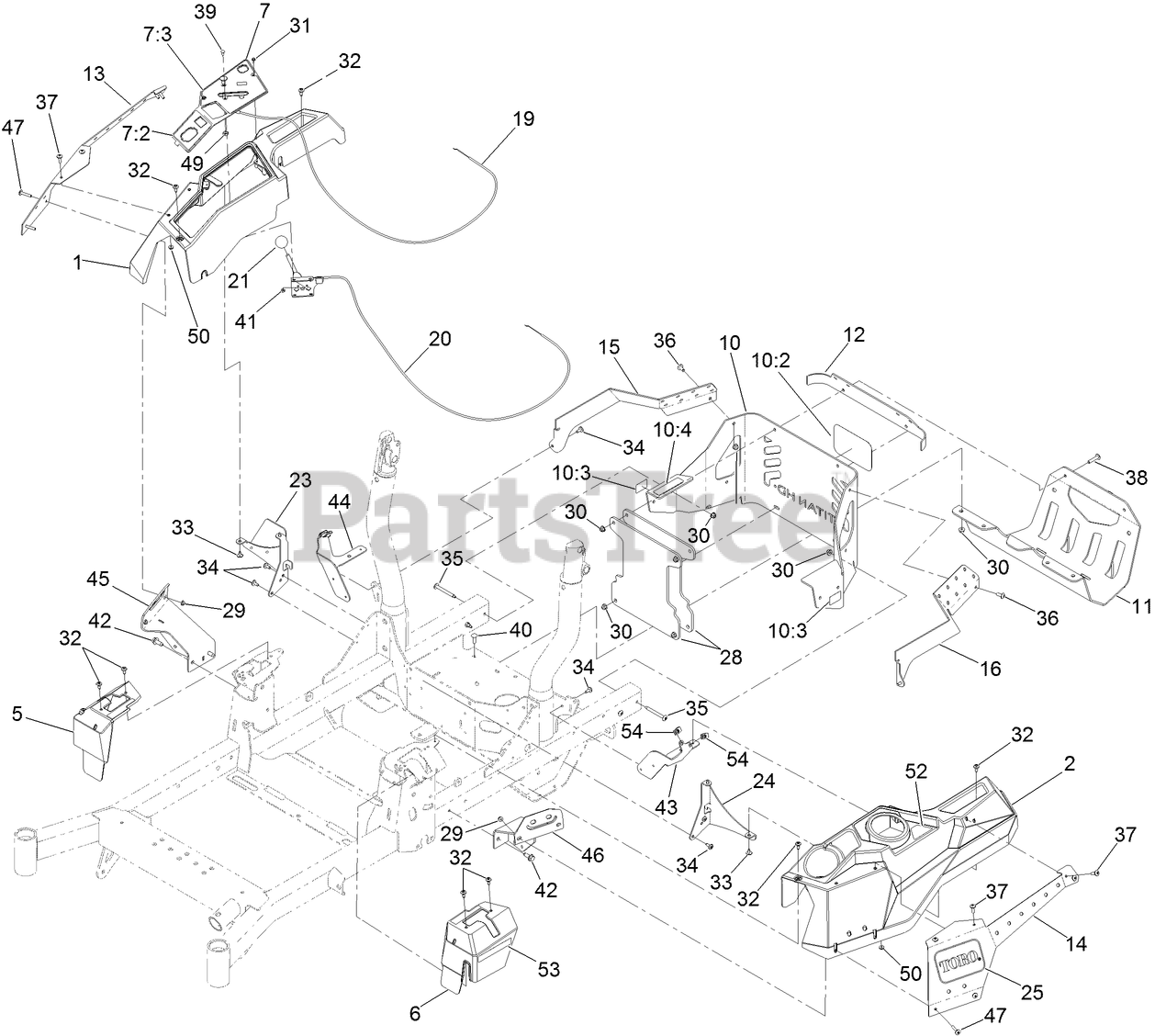

CONTROL CONSOLE AND GUARD ASSEMBLY Parts Diagram

  • Title

1

Toro 126-4983

CONSOLE-RH

$75.99

$

Usually ships in 3-6 days

0

2

Toro 126-4984

CONSOLE-LH

$86.99

$

Usually ships in 3-6 days

0

5

Toro 126-7371

COVER-CONTROL, MOTION (RH)

$26.99

$

Usually ships in 3-6 days

0

6

Toro 126-7372

COVER-CONTROL, MOTION (LH)

$26.99

$

Usually ships in 3-6 days

0

7

Toro 136-1673

CONTROL PANEL ASM

$91.99

$

Usually ships in 3-6 days

0

7:2

Toro 126-9115

DECAL-PANEL, CONTROL

$7.49

$

Usually ships in 3-6 days

0

7:3

Toro 136-1305

DECAL-PANEL, CONTROL

$14.99

$

Usually ships in 3-6 days

0

10

Toro 126-7803

REAR GUARD ASM

$290.99

$

Usually ships in 3-6 days

0

10:2

Toro 99-4693

DECAL

$25.99

$

In Stock, only 3 left!

0

10:3

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

10:4

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

11

Toro 126-7664-03

GUARD-MUFFLER
(Superseded to 135-5084-03)

$187.99

$

Usually ships in 3-6 days

0

12

Toro 126-6260-01

TRIM-UPPER, REAR

$36.99

$

Usually ships in 3-6 days

0

13

Toro 136-1745-01

COVER-POD, RH

$36.99

$

Usually ships in 3-6 days

0

14

Toro 136-1746-01

COVER-LH

$36.99

$

Usually ships in 3-6 days

0

15

Toro 126-9023-01

BRACKET-GUARD, RH

$43.99

$

Usually ships in 3-6 days

0

16

Toro 126-9022-01

BRACKET-GUARD, LH

$126.99

$

Usually ships in 3-6 days

0

19

Toro 126-6947

CABLE-CONTROL, CHOKE
(Superseded to 144-2647)

$39.99

$

In Stock, only 2 left!

0

20

Toro 126-6946

CABLE-CONTROL, THROTTLE

$43.99

$

Usually ships in 3-6 days

0

21

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 6

0

23

Toro 126-9945

SUPPORT-CONSOLE, RH

$26.99

$

Usually ships in 3-6 days

0

24

Toro 126-5532-03

BRACKET-CONSOLE, LH

$12.99

$

Usually ships in 3-6 days

0

25

Toro 68-3640

DECAL

$20.99

$

In Stock, Qty 20+

0

28

Toro 126-9165-01

WEIGHT-REAR

$60.99

$

Usually ships in 3-6 days

0

29

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Toro 117-5036

SCREW-HWH

$4.99

$

Usually ships in 3-6 days

0

32

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

33

Toro 126-5544

SCREW-TORX

$1.49

$

In Stock, Qty 8

0

34

Toro 126-6266

SCREW-TORX

$1.49

$

In Stock, only 2 left!

0

35

Toro 126-6267

SCREW-TORX

$2.99

$

Usually ships in 3-6 days

0

36

Toro 126-6268

SCREW-TORX

$1.49

$

In Stock, Qty 5

0

37

Toro 126-6269

SCREW-TRUSS

$1.49

$

Usually ships in 3-6 days

0

38

Toro 126-7439

SCREW-TORX

$2.99

$

In Stock, Qty 11

0

39

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

40

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

41

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Toro 126-1696

SCREW-FORMING, THREAD

$1.49

$

In Stock, Qty 5

0

43

Toro 126-9808-03

BRACKET-SUPPORT, LEFT POD

$34.99

$

Usually ships in 3-6 days

0

44

Toro 126-9809-03

BRACKET-SUPPORT, RIGHT POD

$51.99

$

Usually ships in 3-6 days

0

45

Toro 126-9104-01

SUPPORT-POD, RH

$59.99

$

Usually ships in 3-6 days

0

46

Toro 126-9105-01

SUPPORT-POD, LH
(Superseded to 136-9029-01)

$36.99

$

Usually ships in 3-6 days

0

47

Toro 126-8232

SCREW-TRUSS

$1.99

$

Usually ships in 3-6 days

0

49

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

50

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

52

Toro 126-9939

DECAL-FILL, FUEL

$5.49

$

Usually ships in 3-6 days

0

53

Toro 126-9299

DECAL-2000, TITAN HD

$4.49

$

Usually ships in 3-6 days

0

54

Toro 126-3739

NUT-RETAINER, U STYLE

$5.49

$

Usually ships in 3-6 days

0
