74460 (HD 2000) - Toro 48" Titan Zero-Turn Mower (SN: 400000000 - 999999999) DECK ASSEMBLY Parts Diagram

48" Titan Zero-Turn Mower

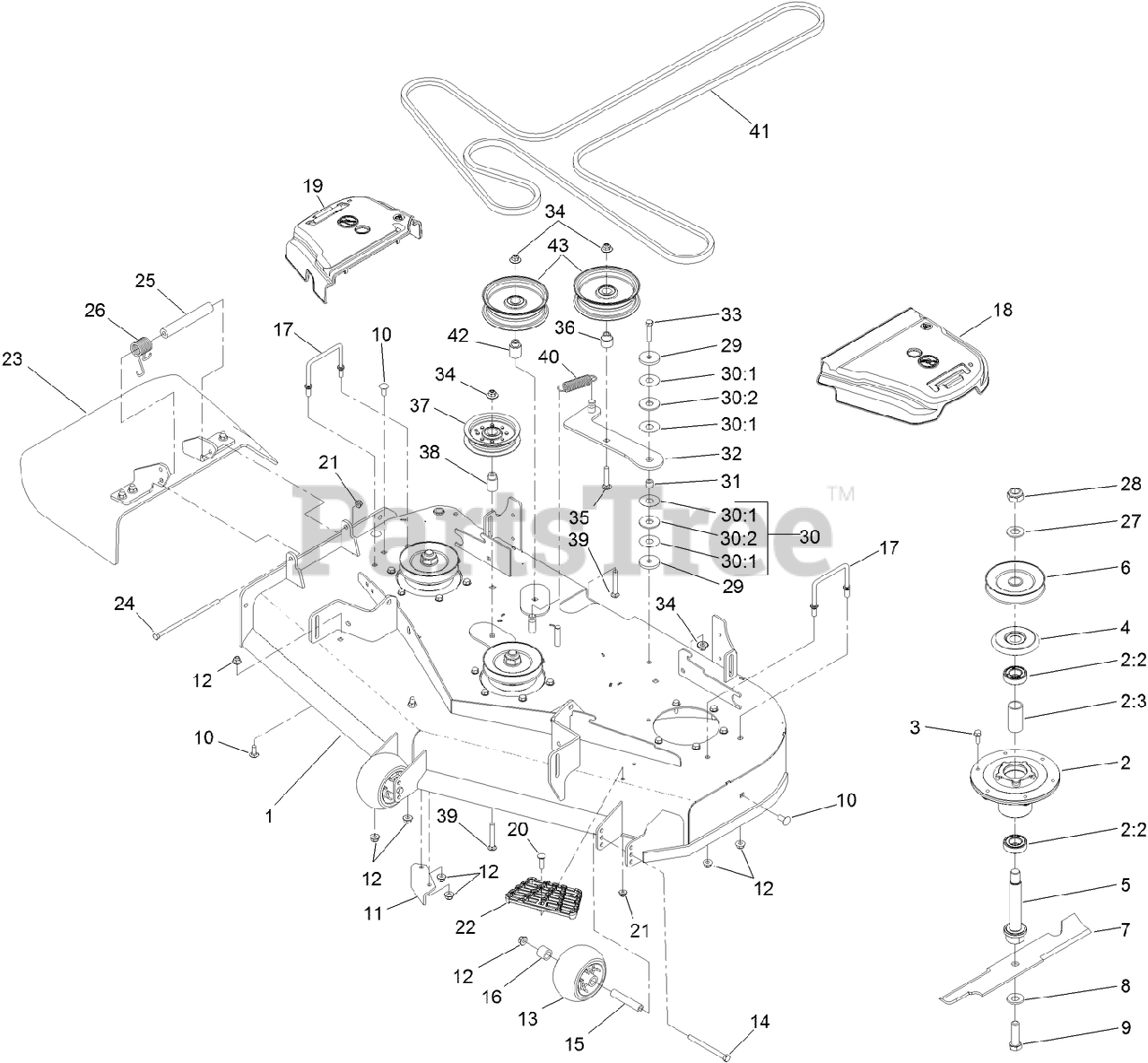

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 126-8956

DECK DECAL ASM

$2467.99

$

Usually ships in 3-6 days

0

2

Toro 120-5477

SPINDLE ASM
(Superseded to 139-2357)

$102.99

$

In Stock, only 2 left!

0

2:2

Toro 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 10

0

2:3

Toro 115-2641

SPACER-BEARING

$12.99

$

In Stock, only 2 left!

0

3

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

4

Toro 117-7210

SHIELD-BEARING

$10.99

$

In Stock, only 2 left!

0

5

Toro 126-7629

SHAFT-SPINDLE

$42.99

$

In Stock, only 1 left!

0

6

Toro 117-7326

PULLEY

$58.99

$

In Stock, only 2 left!

0

7

Toro 133-2137

BLADE-ROTARY, 16.5IN (HI FLOW)

$30.99

$

In Stock, only 3 left!

0

8

Toro 125-1736

WASHER-BELLEVILLE

$4.49

$

In Stock, only 3 left!

0

9

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

10

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

11

Toro 107-8541-01

BAFFLE-DISCHARGE

$21.99

$

Usually ships in 3-6 days

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

14

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

15

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

16

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

17

Toro 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

18

Toro 109-6936

COVER-BELT, LH

$38.99

$

In Stock, only 1 left!

0

19

Toro 109-6935

COVER-BELT, RH

$38.99

$

In Stock, only 1 left!

0

20

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

22

Toro 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

23

Toro 120-2451

DEFLECTOR ASM

$239.99

$

Usually ships in 3-6 days

0

24

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

25

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

26

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

27

Toro 92-5836

WASHER

$5.99

$

In Stock, only 1 left!

0

28

Toro 3296-67

NUT-LOCK, NI

$5.49

$

In Stock, only 4 left!

0

29

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

30

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 11

0

30:1

Toro 110-9998

WASHER

$

$

Not available

30:2

Toro 112-3788

SPACER

$

$

Not available

31

Toro 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

32

Toro 115-5054

ARM-IDLER

$72.99

$

In Stock, only 2 left!

0

33

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

35

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 19

0

36

Toro 126-7684

BUSHING-IDLER

$3.49

$

In Stock, Qty 9

0

37

Toro 116-3626

PULLEY-IDLER
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 16

0

38

Toro 1-413113

BUSHING-IDLER

$5.99

$

In Stock, only 1 left!

0

39

Toro 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

40

Toro 108-4056

SPRING-EXTENSION

$8.49

$

In Stock, Qty 18

0

41

Toro 126-7731

BELT, DECK DRIVE

$132.99

$

In Stock, only 1 left!

0

42

Toro 126-7683

BUSHING-IDLER

$5.49

$

In Stock, only 1 left!

0

43

Toro 116-4669

IDLER-PULLEY, FLAT

$79.99

$

In Stock, Qty 5

0
