74456 TE (2000) - Toro 122cm HDX Zero-Turn Mower, Rear-Discharge Deck (SN: 412000000 - 414400999) Suspension Platform and Seat Assembly Parts Diagram

122cm HDX Zero-Turn Mower, Rear-Discharge Deck

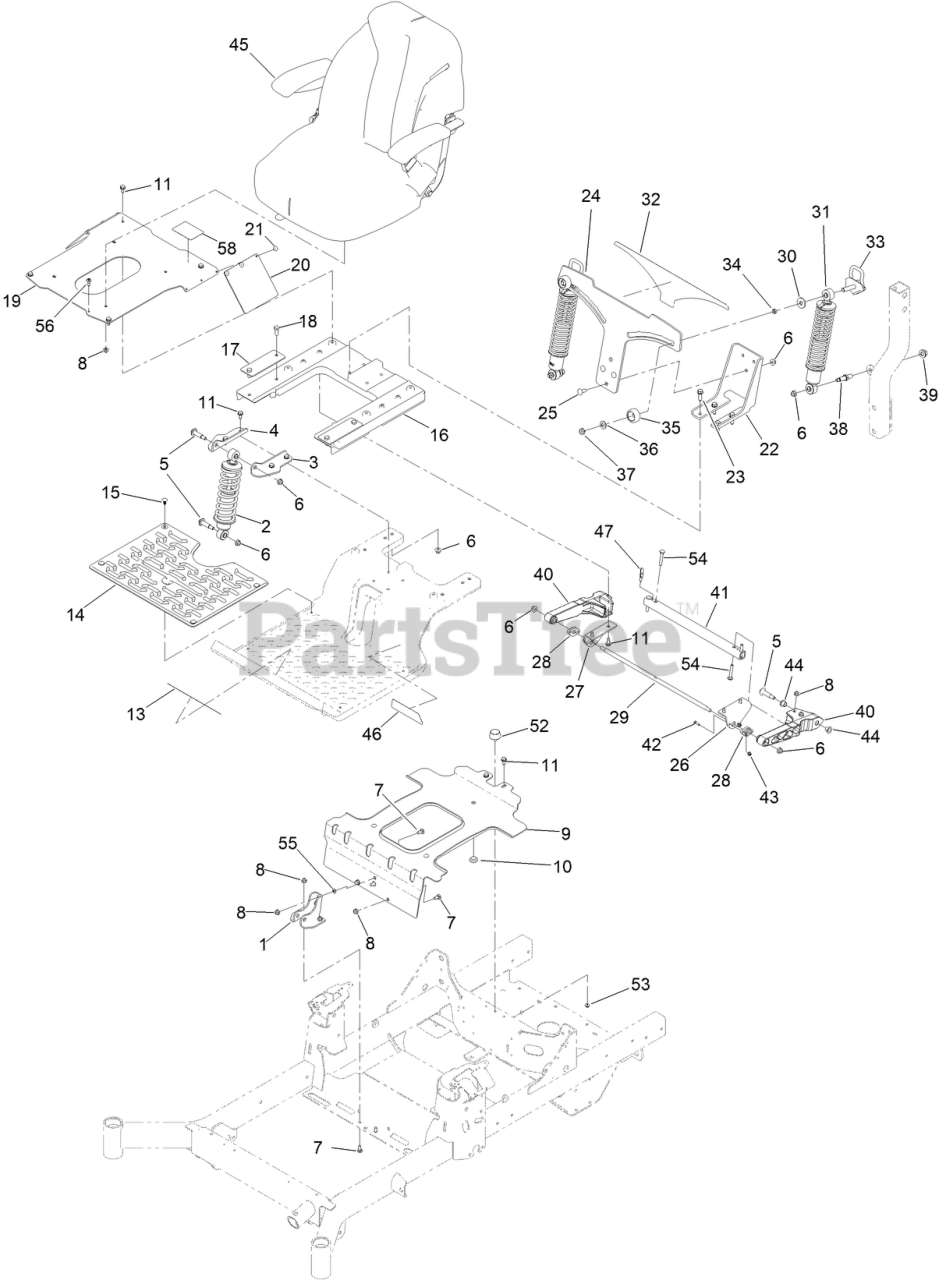

Suspension Platform and Seat Assembly Parts Diagram

  • Title

1

Toro 133-1864-03

BRACKET-SHOCK, FRONT LOWER

$21.99

$

Usually ships in 3-6 days

0

2

Toro 136-8971

SHOCK/SPRING

$131.99

$

Usually ships in 3-6 days

0

3

Toro 133-9318-03

BRACKET-SHOCK MOUNT, UPPER (LH)

$15.99

$

Usually ships in 3-6 days

0

4

Toro 133-9319-03

BRACKET-SHOCK MOUNT, UPPER (RH)

$15.99

$

Usually ships in 3-6 days

0

5

Toro 136-9028

BOLT-SHOULDER, HWH

$1.99

$

Usually ships in 3-6 days

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 136-8963-03

BRACKET-TANK

$139.99

$

Usually ships in 3-6 days

0

10

Toro 135-0505

BUMPER-SEAT

$1.49

$

In Stock, only 3 left!

0

11

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 132-0871

DECAL-DANGER

$9.49

$

In Stock, only 2 left!

0

14

Toro 144-2634

FLOOR MAT

$46.99

$

Usually ships in 3-6 days

0

15

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

16

Toro 137-7031

SUBFRAME-REAR

$96.99

$

Usually ships in 3-6 days

0

17

Toro 133-7089-03

PLATE-BACKER

$7.99

$

Usually ships in 3-6 days

0

18

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Toro 136-8962-03

PLATE-SEAT

$93.99

$

Usually ships in 3-6 days

0

20

Toro 136-8967

FLAP-RUBBER

$7.99

$

Usually ships in 3-6 days

0

21

Toro 132-5064

RIVET-POP

$1.49

$

Usually ships in 3-6 days

0

22

Toro 136-8955-03

BRACKET-MOUNT, LOWER

$66.99

$

Usually ships in 3-6 days

0

23

Toro 32144-109

SCREW-THD

$4.99

$

In Stock, Qty 7

0

24

Toro 136-1744-03

PLATE-MOUNTING, ADJ SHOCK

$96.99

$

Usually ships in 3-6 days

0

25

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

26

Toro 136-1741-03

BRACKET-ARM, TRAILING (LH)

$13.99

$

Usually ships in 3-6 days

0

27

Toro 136-1742-03

BRACKET-ARM, TRAILING (RH)

$13.99

$

Usually ships in 3-6 days

0

28

Toro 127-0146

BEARING-FLANGE

$7.99

$

In Stock, only 2 left!

0

29

Toro 136-1739

ROD-PIVOT

$30.99

$

Usually ships in 3-6 days

0

30

Toro 131-4699

WASHER-PLASTIC

$5.49

$

Usually ships in 3-6 days

0

31

Toro 133-5193

SHOCK/SPRING ASM

$128.99

$

Usually ships in 3-6 days

0

32

Toro 136-1720

DECAL-MYRIDE

$25.99

$

Usually ships in 3-6 days

0

33

Toro 136-9017

CAM LOCK ASM

$38.99

$

Usually ships in 3-6 days

0

34

Toro 133-5109

BEARING-SLEEVE

$2.99

$

Usually ships in 3-6 days

0

35

Toro 136-5636

KNOB-LOCK, CAM

$12.99

$

Usually ships in 3-6 days

0

36

Toro 3-6803

WASHER-ADJUSTING

$8.49

$

Usually ships in 3-6 days

0

37

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

38

Toro 133-4401

BOLT-SHOULDER

$14.99

$

Usually ships in 3-6 days

0

39

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

40

Toro 136-8979

TRAILING ARM

$34.99

$

Usually ships in 3-6 days

0

41

Toro 137-9754-03

TUBE-ARM, TRAILING

$136.99

$

Usually ships in 3-6 days

0

42

Toro 3229-20

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

43

Toro 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

44

Toro 125-5239

BUSHING-FLANGE

$7.99

$

In Stock, Qty 6

0

45

Toro 144-3771

SEAT-FIXED TORO

$953.99

$

Usually ships in 3-6 days

0

46

Toro 136-7470

DECAL

$6.49

$

Usually ships in 3-6 days

0

47

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

52

Toro 131-8834

BUMPER

$11.99

$

Usually ships in 3-6 days

0

53

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

54

Toro 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 11

0

55

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

56

Toro 135-2015

SCREW-SHOULDER

$3.49

$

Usually ships in 3-6 days

0

58

Toro 136-9024

DECAL-AID, SERVICE

$5.49

$

Usually ships in 3-6 days

0
