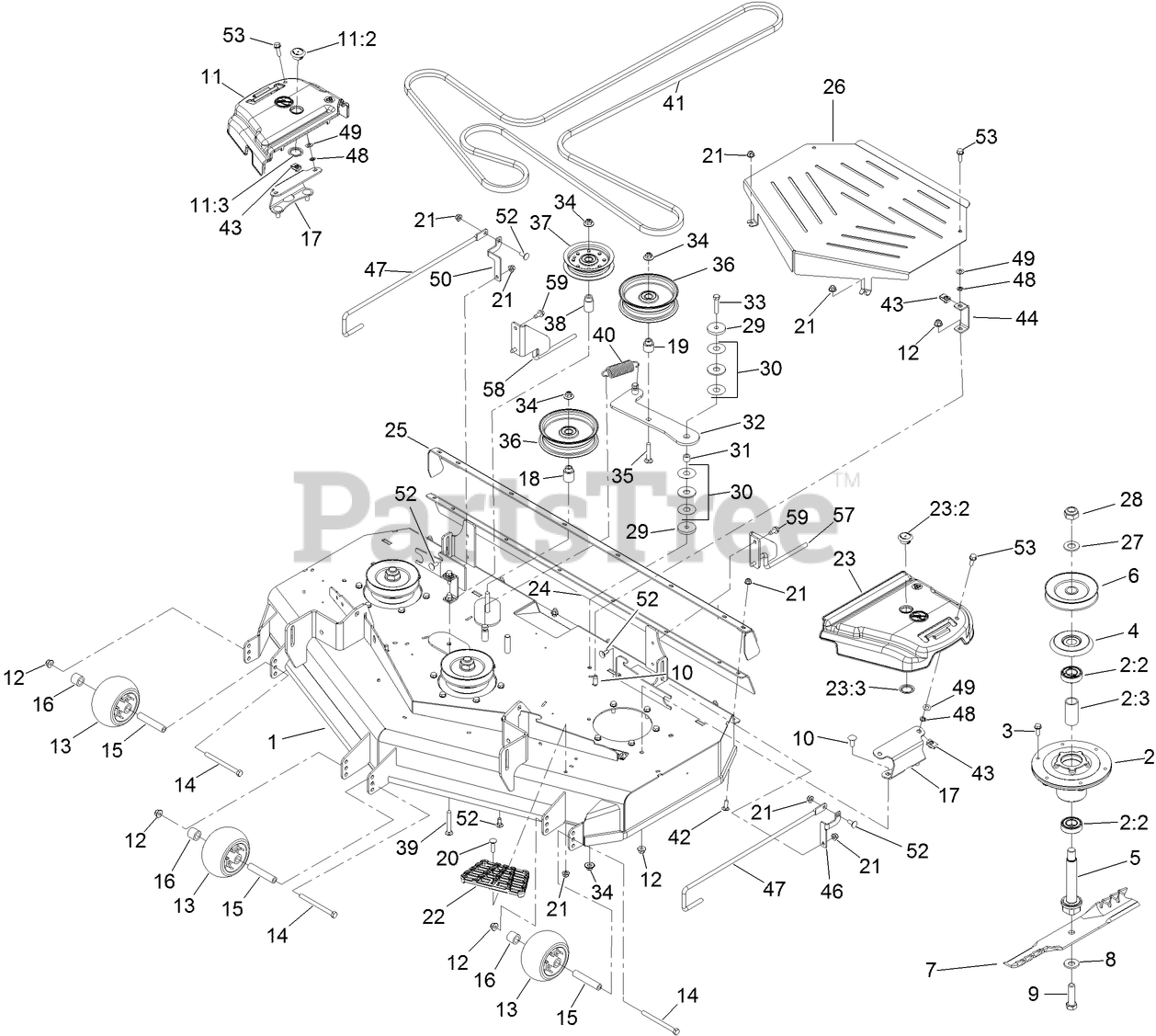

74456 TE (2000) - Toro 122cm HDX Zero-Turn Mower, Rear-Discharge Deck (SN: 400000000 - 410019999) Deck Assembly Parts Diagram

122cm HDX Zero-Turn Mower, Rear-Discharge Deck

Deck Assembly Parts Diagram

  • Title

1

Toro 134-3890

DECK DECAL ASM

$

$

Currently unavailable

2

Toro 120-5477

SPINDLE ASM
(Superseded to 139-2357)

$102.99

$

In Stock, only 2 left!

0

2:2

Toro 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 20+

0

2:3

Toro 115-2641

SPACER-BEARING

$12.99

$

In Stock, only 2 left!

0

3

Toro 32144-49

SCREW-HWHTF

$5.49

$

In Stock, only 1 left!

0

4

Toro 117-7210

SHIELD-BEARING

$10.99

$

In Stock, only 2 left!

0

5

Toro 126-7629

SHAFT-SPINDLE

$42.99

$

In Stock, only 1 left!

0

6

Toro 117-7326

PULLEY

$58.99

$

In Stock, Qty 10

0

7

Toro 133-2160

BLADE-ROTARY, ATOMIC 16.5

$36.99

$

Usually ships in 3-6 days

0

8

Toro 125-1736

WASHER-BELLEVILLE

$4.49

$

In Stock, only 3 left!

0

9

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

10

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

11

Toro 126-9325

RH BELT COVER ASM

$28.99

$

Usually ships in 3-6 days

0

11:2

Toro 126-9323

PLUG

$2.99

$

Usually ships in 3-6 days

0

11:3

Toro 126-9324

RING-RETAINING

$1.49

$

Usually ships in 3-6 days

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

14

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

15

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

16

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

17

Toro 126-9121-01

BRACKET-COVER, BELT

$30.99

$

Usually ships in 3-6 days

0

18

Toro 126-7683

BUSHING-IDLER

$5.49

$

In Stock, only 1 left!

0

19

Toro 126-7684

BUSHING-IDLER

$3.49

$

In Stock, Qty 9

0

20

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

22

Toro 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

23

Toro 126-9326

LH BELT COVER ASM

$40.99

$

Usually ships in 3-6 days

0

23:2

Toro 126-9323

PLUG

$2.99

$

Usually ships in 3-6 days

0

23:3

Toro 126-9324

RING-RETAINING

$1.49

$

Usually ships in 3-6 days

0

24

Toro 134-2542

DEFLECTOR

$

$

Not available

25

Toro 134-3728-01

BRACKET-DEFLECTOR

$

$

Currently unavailable

26

Toro 134-5091-03

GUARD-CENTER BELT 48 (RD)

$62.99

$

Usually ships in 3-6 days

0

27

Toro 92-5836

WASHER

$5.99

$

In Stock, only 1 left!

0

28

Toro 3296-67

NUT-LOCK, NI

$5.49

$

In Stock, only 4 left!

0

29

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

30

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 11

0

31

Toro 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

32

Toro 115-5054

ARM-IDLER

$72.99

$

In Stock, only 2 left!

0

33

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

35

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 19

0

36

Toro 116-4669

IDLER-PULLEY, FLAT

$79.99

$

In Stock, Qty 20+

0

37

Toro 116-3626

See Supercession: 132-4718
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 16

0

38

Toro 1-413113

BUSHING-IDLER

$5.99

$

In Stock, only 1 left!

0

39

Toro 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

40

Toro 139-3616

SPRING-EXTENSION

$11.99

$

In Stock, Qty 20+

0

41

Toro 126-7731

BELT, DECK DRIVE

$132.99

$

In Stock, only 1 left!

0

42

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, only 4 left!

0

43

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

44

Toro 126-9646

BRACKET-GUARD

$27.99

$

Usually ships in 3-6 days

0

46

Toro 126-7761

BRACKET-MOUNT, REAR (LH)

$53.99

$

Usually ships in 3-6 days

0

47

Toro 126-7759

ROD-SUPPORT, LOWER

$92.99

$

Usually ships in 3-6 days

0

48

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

49

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

50

Toro 126-7762

BRACKET-MOUNT, REAR (RH)

$53.99

$

Usually ships in 3-6 days

0

52

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

53

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

57

Toro 126-7776

SUPPORT-LOWER, LH

$108.99

$

Usually ships in 3-6 days

0

58

Toro 126-7777

SUPPORT-LOWER, RH

$108.99

$

Usually ships in 3-6 days

0

59

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0
