74450 TE (Z 400) - Toro 122cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 310000001 - 310999999) (2010) MOTION CONTROL ASSEMBLY Parts Diagram

122cm Z Master Zero-Turn Mower, Side-Discharge Deck

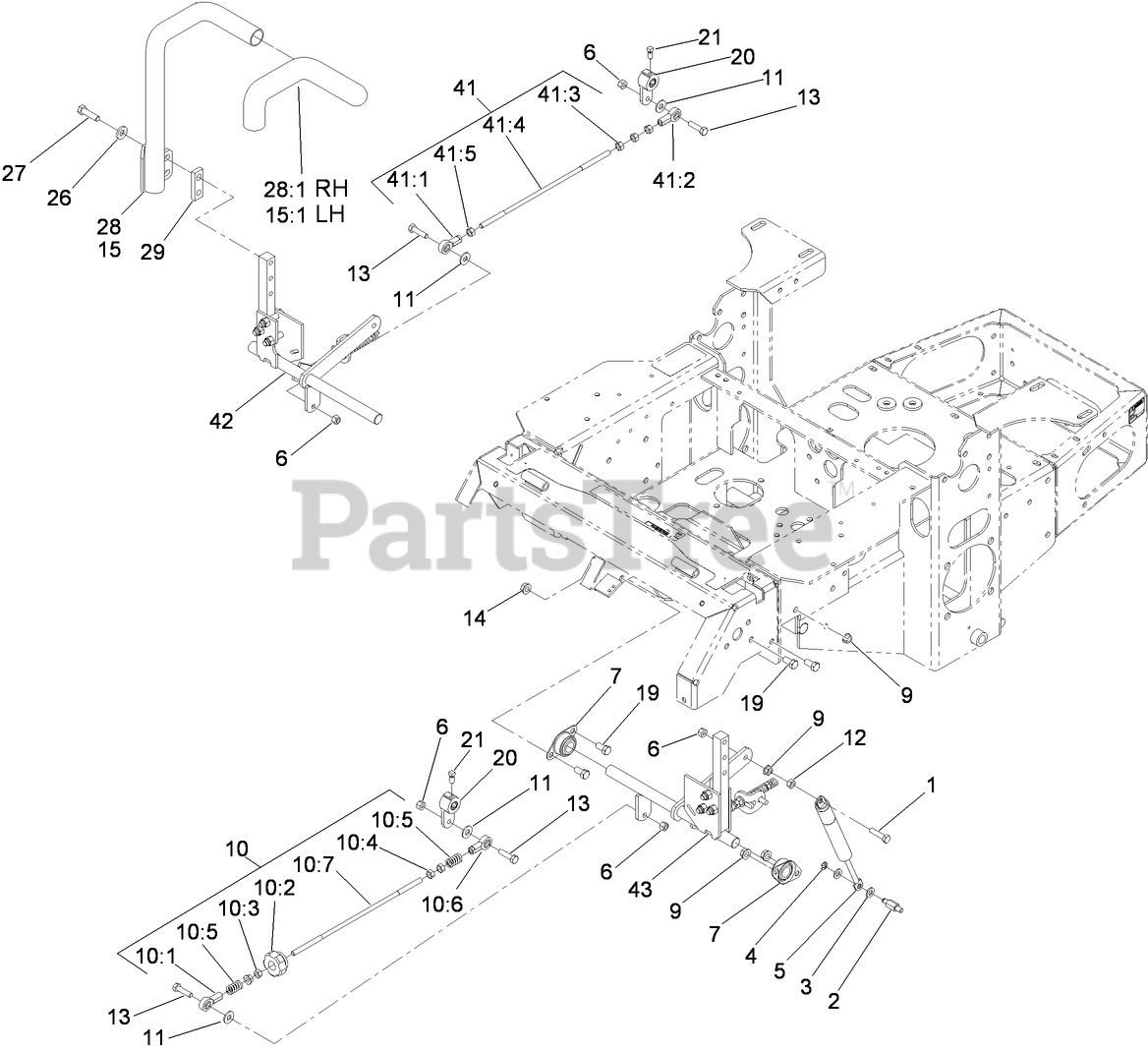

MOTION CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

2

Toro 103-4101

PIN-DAMPER

$21.99

$

In Stock, only 1 left!

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, Qty 6

0

5

Toro 109-2339

DAMPER-CONTROL, MOTION

$76.99

$

In Stock, only 3 left!

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

9

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 103-4326

TRACKING ROD ASM

$84.99

$

Usually ships in 3-6 days

0

10:1

Toro 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

10:2

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

10:3

Toro 103-3060

KNOB-TRACKING

$6.99

$

In Stock, only 2 left!

0

10:4

$2.99

$

In Stock, only 2 left!

0

10:5

Toro 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

10:6

Toro 1-633152

BALLJOINT-LH

$20.99

$

In Stock, only 3 left!

0

10:7

Toro 103-3066

Link-Rod, Tracking

$

$

Not available

11

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

13

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

14

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

15

Toro 108-7238

LH LEVER ASM

$137.99

$

In Stock, only 1 left!

0

15:1

Toro 106-9987

Grip-Control, Motion

$19.99

$

In Stock, only 4 left!

0

19

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

20

Toro 103-3717

ARM-CONTROL

$18.99

$

In Stock, only 3 left!

0

21

Toro 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

26

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

27

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 6

0

28

Toro 108-7237

RH LEVER ASM

$137.99

$

Usually ships in 3-6 days

0

28:1

Toro 106-9987

Grip-Control, Motion

$19.99

$

In Stock, only 4 left!

0

29

Toro 117-0948-03

SPACER, CONTROL LEVER

$11.99

$

Usually ships in 3-6 days

0

41

Toro 103-4327

TRACKING ASM

$66.99

$

Usually ships in 3-6 days

0

41:1

Toro 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

41:2

Toro 1-633152

BALLJOINT-LH

$20.99

$

In Stock, only 3 left!

0

41:3

$2.99

$

In Stock, only 2 left!

0

41:4

Toro 103-3066

Link-Rod, Tracking

$

$

Not available

41:5

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

42

Toro 109-3911

RH MOTION CONTROL ASM

$

$

Not available

43

Toro 109-3912

LH MOTION CONTROL ASM

$249.99

$

Usually ships in 3-6 days

0
