74450 TE (Z 400) - Toro 122cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 310000001 - 310999999) (2010) IDLER ASSEMBLY Parts Diagram

122cm Z Master Zero-Turn Mower, Side-Discharge Deck

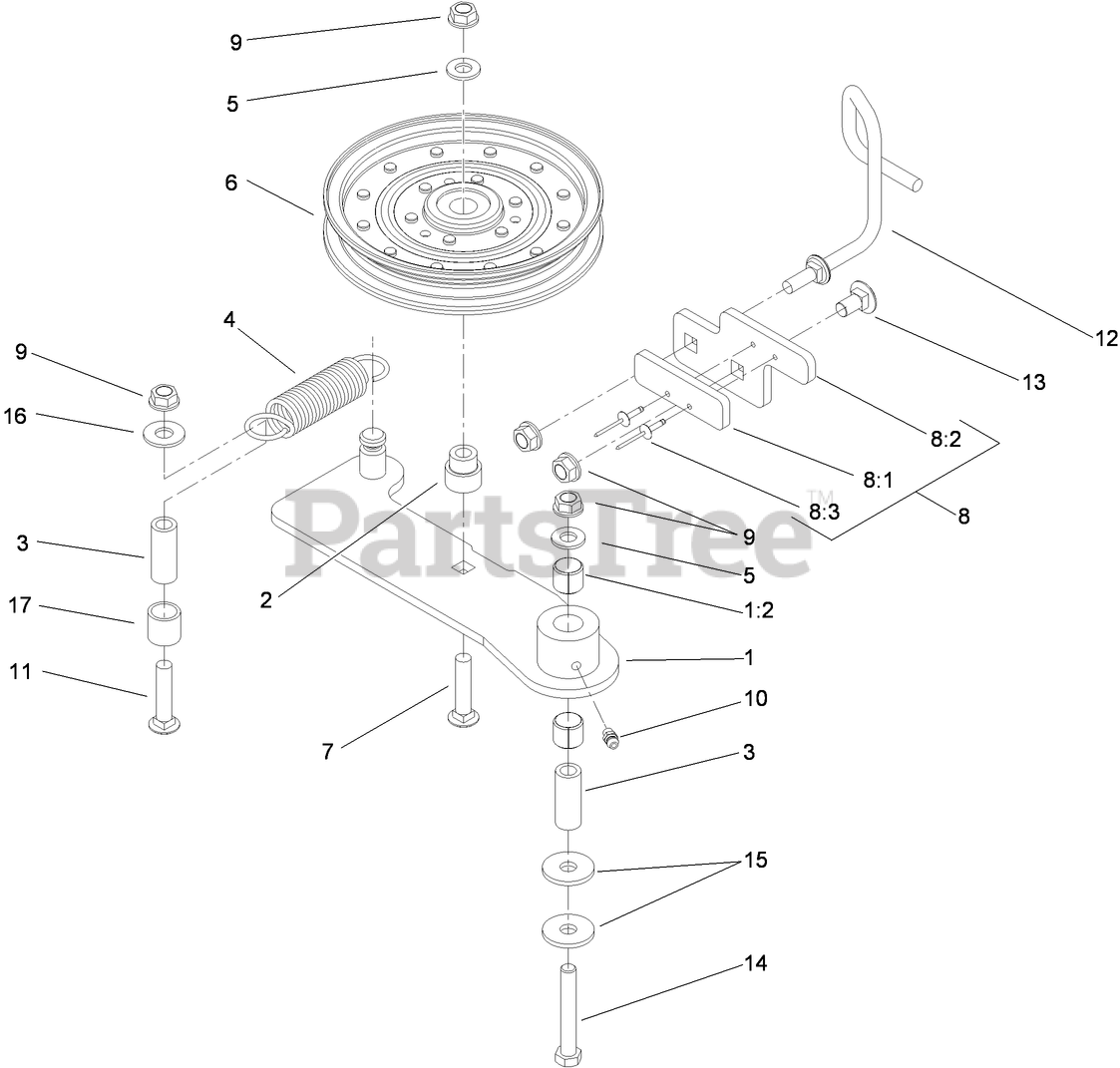

IDLER ASSEMBLY Parts Diagram

  • Title

1

Toro 108-4062

IDLER ARM ASM

$262.99

$

Usually ships in 3-6 days

0

1:2

Toro 103-4681

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

0

2

Toro 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

3

Toro 1-603044

BUSHING

$14.99

$

In Stock, Qty 20+

0

4

Toro 108-4056

SPRING-EXTENSION

$8.49

$

In Stock, Qty 20+

0

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 1-633109

Idler-Flat
(Superseded to 132-9424)

$43.99

$

In Stock, Qty 20+

0

7

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 19

0

8

STOP PAD ASM

Note: Not serviced separately

$

$

Not available

8:1

Toro 106-3229

PAD-BUMPER

$8.99

$

In Stock, only 1 left!

0

8:2

Toro 107-1697-01

PLATE-STOP

$54.99

$

Usually ships in 3-6 days

0

8:3

Toro 3269-24

RIVET

$2.99

$

In Stock, Qty 12

0

9

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

11

Toro 3231-31

SCREW-CARR

$7.49

$

In Stock, Qty 20+

0

12

Toro 108-4072

GUIDE-BELT

$

$

Not available

13

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

14

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

16

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

17

Toro 108-4063

SPACER-RUBBER

$6.49

$

In Stock, only 1 left!

0
