74450 TE (Z 400) - Toro 122cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 310000001 - 310999999) (2010) DECK ASSEMBLY Parts Diagram

122cm Z Master Zero-Turn Mower, Side-Discharge Deck

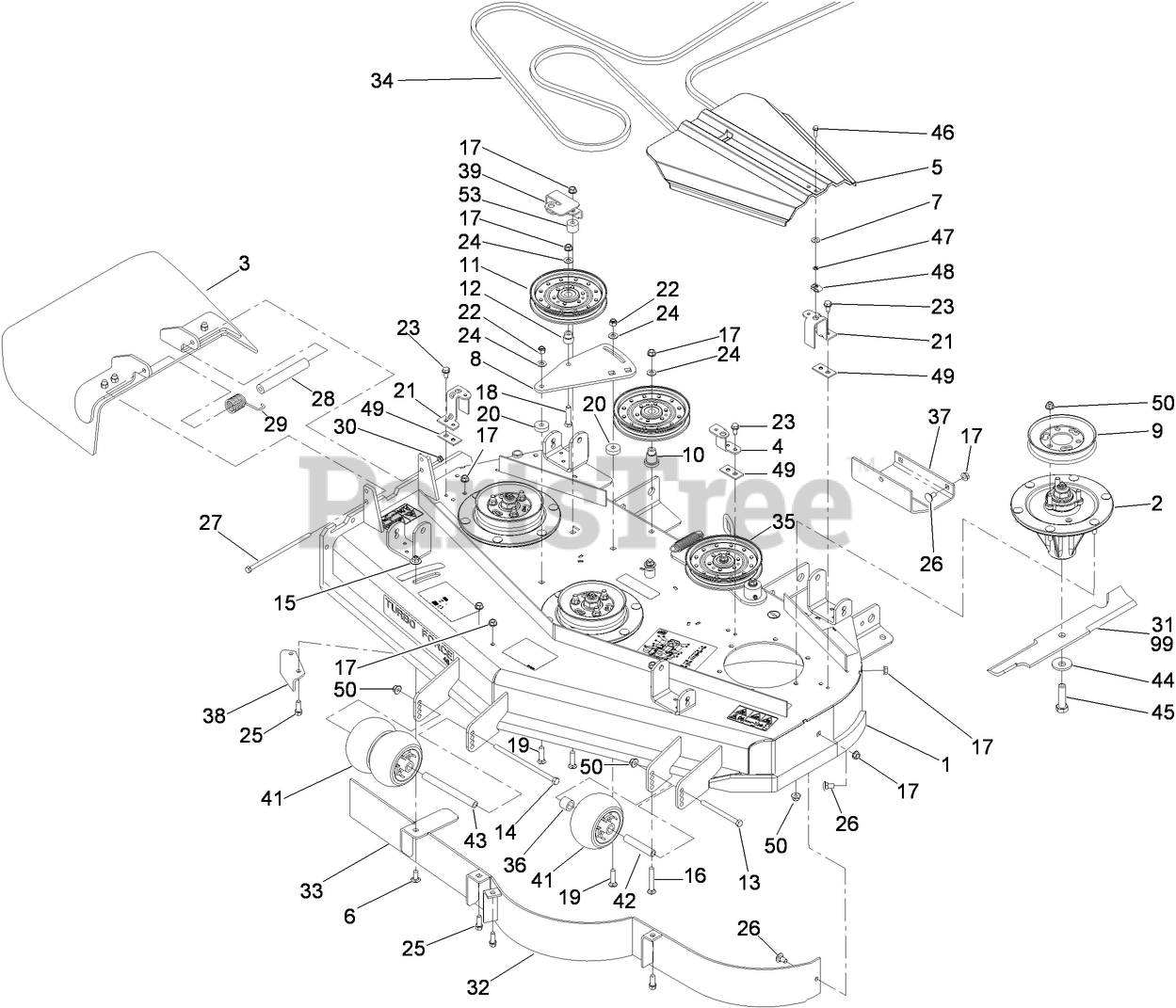

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 119-4227

DECK ASM

$2745.99

$

Usually ships in 3-6 days

0

2

Toro 117-6158

SPINDLE ASM
(Superseded to 119-8560)

$581.99

$

In Stock, Qty 11

0

3

Toro 108-7770

RUBBER DEFLECTOR ASM

$227.99

$

In Stock, only 3 left!

0

4

Toro 108-2177-01

BRACKET-COVER, TALL

$31.99

$

In Stock, only 1 left!

0

5

Toro 107-8536

COVER-BELT

$22.99

$

In Stock, only 2 left!

0

6

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

7

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

8

Toro 119-4223-01

PLATE - IDLER

$

$

Not available

9

Toro 107-1684

PULLEY

$21.99

$

In Stock, only 1 left!

0

10

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, only 4 left!

0

11

Toro 1-633109

Idler-Flat
(Superseded to 132-9424)

$43.99

$

In Stock, Qty 16

0

12

Toro 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

13

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

14

Toro 108-5388

SCREW-HH

$15.99

$

In Stock, only 2 left!

0

15

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

17

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

18

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

20

Toro 105-7788

Spacer

$9.49

$

In Stock, only 2 left!

0

21

Toro 108-4121-01

BRACKET-COVER
(Superseded to 119-4220-01)

$12.99

$

In Stock, Qty 6

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

23

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

25

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

26

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

27

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

28

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

29

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

30

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

31

Toro 107-3192-03

BLADE-16.5 INCH (HIGH FLOW)

$30.99

$

In Stock, only 4 left!

0

32

Toro 107-8510-01

BAFFLE ASM

$412.99

$

Usually ships in 3-6 days

0

33

Toro 115-7455-01

BAFFLE ASM

$121.99

$

Usually ships in 3-6 days

0

34

Toro 114-8154

BELT-V

$161.99

$

In Stock, Qty 5

0

35

SPRING IDLER ASM

Note: Not serviced separately

$

$

Not available

36

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

37

Toro 107-3166-01

SKID

$65.99

$

Usually ships in 3-6 days

0

38

Toro 107-8541-01

BAFFLE-DISCHARGE

$21.99

$

Usually ships in 3-6 days

0

39

Toro 119-4226-01

BRACKET - COVER

$29.99

$

Usually ships in 3-6 days

0

41

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

42

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

43

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 8

0

44

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 18

0

45

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

46

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

47

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

48

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

49

Toro 112-8663-01

SPACER-COVER, BELT
(Superseded to 119-4222-01)

$20.99

$

Usually ships in 3-6 days

0

50

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

53

Toro 92-5791

SPACER

$10.99

$

In Stock, Qty 17

0

99

Toro 107-3194-03

BLADE-ROTARY, 16.5 INCH (MED FLOW)

Note: Optional Equipment

$27.99

$

In Stock, only 1 left!

0

99

Toro 107-3195-03

BLADE-ROTARY, 16.5 INCH (ATOMIC)

Note: Optional Equipment

$39.99

$

In Stock, Qty 9

0

99

Toro 107-3196-03

BLADE-RECYCLER, 16.5 INCH

Note: Optional Equipment

$31.99

$

Usually ships in 3-6 days

0

99

Toro 107-3193-03

BLADE-ROTARY, 16.5 INCH (LOW FLOW)

Note: Optional Equipment

$33.99

$

Usually ships in 3-6 days

0
