74450 (HD 1500) - Toro 48" Titan Zero-Turn Mower (SN: 400000000 - 402099999) FRAME AND ROLL-OVER PROTECTION SYSTEM ASSEMBLY Parts Diagram

48" Titan Zero-Turn Mower

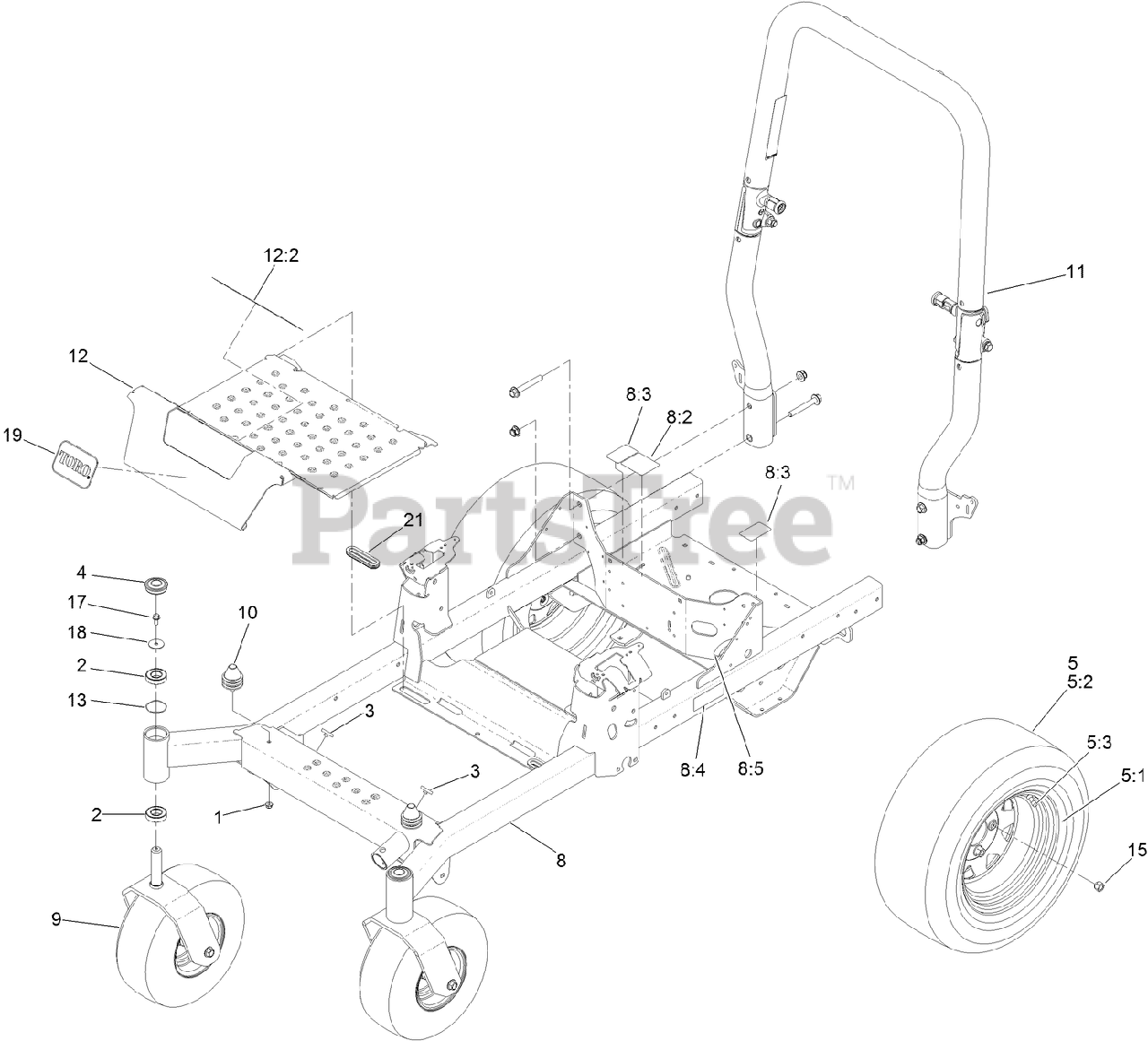

FRAME AND ROLL-OVER PROTECTION SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

2

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 14

0

3

Toro 109-9233

BUMPER-PUSH-IN, RUBBER

$5.49

$

In Stock, Qty 17

0

4

Toro 116-4348

CAP-GREASE

$5.49

$

In Stock, Qty 14

0

5

Toro 126-3280

WHEEL AND TIRE ASM

$496.99

$

Usually ships in 3-6 days

0

5:1

$140.99

$

Usually ships in 3-6 days

0

5:2

Toro 120-3271

TIRE
(Superseded to 142-4282)

$198.99

$

Usually ships in 3-6 days

0

5:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

8

Toro 126-4699

FRAME ASM

$976.99

$

Usually ships in 3-6 days

0

8:2

Toro 109-6014

DECAL-ROUTING, BELT

$7.49

$

In Stock, only 4 left!

0

8:3

Toro 116-8588

DECAL-RELEASE, DRIVE

$2.99

$

Usually ships in 3-6 days

0

8:4

Toro 126-4363

DECAL-WARNING

$17.99

$

Usually ships in 3-6 days

0

8:5

Toro 127-6618

STRIP-SEAL

$5.99

$

Usually ships in 3-6 days

0

9

FRONT CASTER ASM (W/FORK)

Note: Not serviced separately

$

$

Not available

10

Toro 126-5491

ISOLATOR

$19.99

$

Usually ships in 3-6 days

0

11

Toro 126-9526

ROPS ASM

$740.99

$

Usually ships in 3-6 days

0

12

Toro 126-5872

PAN-FLOOR

$169.99

$

Usually ships in 3-6 days

0

12:2

Toro 126-8383

DECAL-DANGER

$8.99

$

In Stock, only 1 left!

0

13

Toro 126-5897

SPRING

$1.49

$

In Stock, Qty 17

0

15

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

17

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

18

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 1 left!

0

19

Toro 67-1300

DECAL

$31.99

$

In Stock, only 2 left!

0

21

Toro 126-7065

GROMMET-RUBBER

$5.49

$

Usually ships in 3-6 days

0
