74450 (HD 1500) - Toro 48" Titan Zero-Turn Mower (SN: 400000000 - 402099999) DECK LIFT ASSEMBLY Parts Diagram

48" Titan Zero-Turn Mower

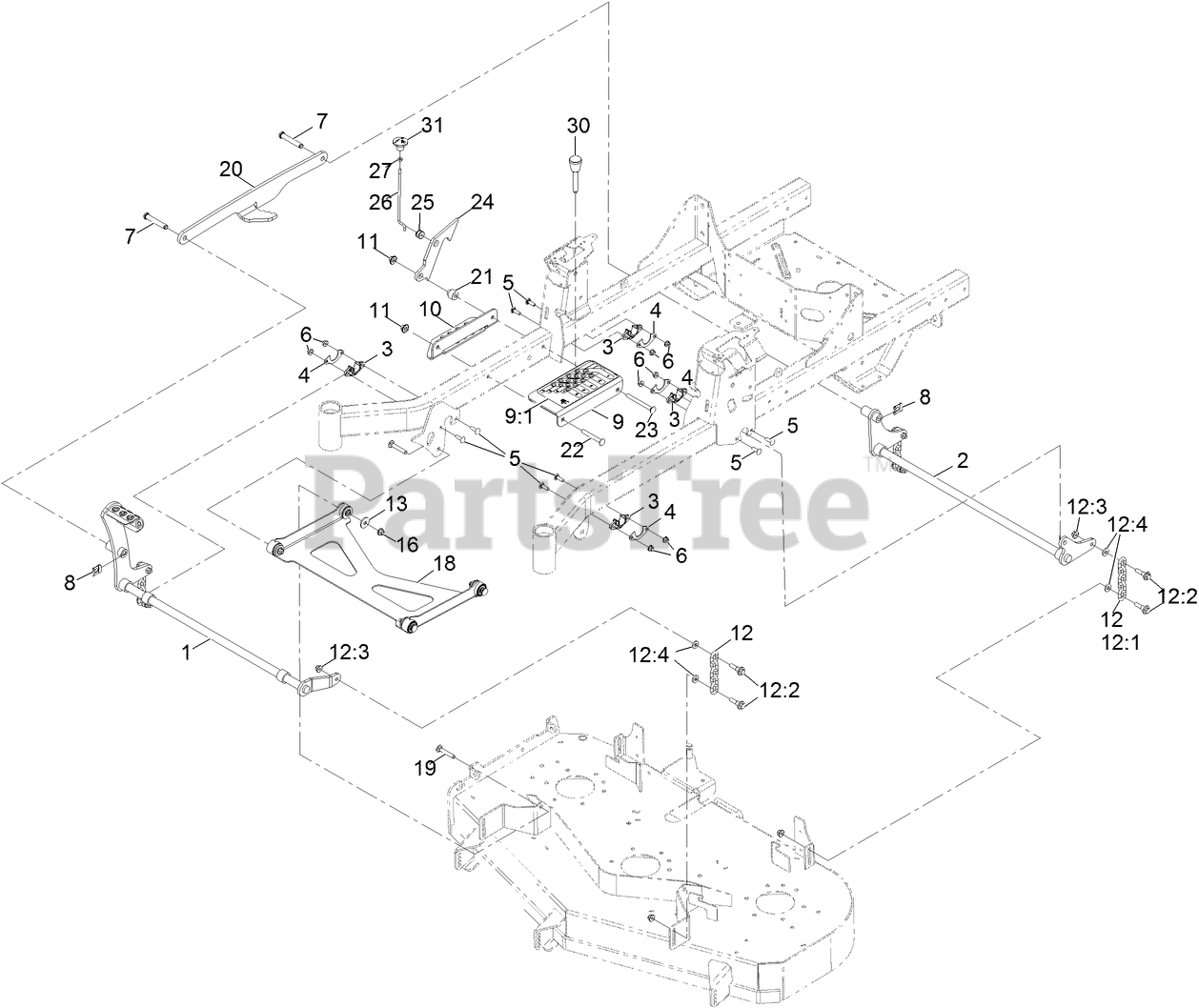

DECK LIFT ASSEMBLY Parts Diagram

  • Title
1

Toro 126-3342-03

SHAFT-LIFT, DECK

$113.99

$

Usually ships in 3-6 days

0

2

Toro 126-3343-03

SHAFT-LIFT, DECK (REAR)

$91.99

$

Usually ships in 3-6 days

0

3

Toro 115-5065

BUSHING-FLANGE

$7.99

$

In Stock, Qty 20+

0

4

Toro 116-2887

GUSSET-LIFT, DECK

$5.49

$

In Stock, Qty 15

0

5

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 126-9181

PIN-CLEVIS

$8.49

$

In Stock, only 2 left!

0

8

Toro 95-4064

CLIP-PIN
(Superseded to 138-8491)

$7.49

$

In Stock, only 2 left!

0

9

Toro 126-4535

BRACKET ASM

$36.99

$

Usually ships in 3-6 days

0

9:1

Toro 126-4784

DECAL-HOC

$10.99

$

Usually ships in 3-6 days

0

10

Toro 126-4640-03

ANGLE-HOC, LOWER

$112.99

$

Usually ships in 3-6 days

0

11

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 126-8877

DECK CHAIN ASM

$13.99

$

Usually ships in 3-6 days

0

12:1

Toro 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 12

0

12:2

Toro 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, Qty 20+

0

12:3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12:4

Toro 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

0

13

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

16

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 126-8365

DECK STRUT ASM

$146.99

$

Usually ships in 3-6 days

0

19

Toro 3231-7

SCREW-CARR

$6.99

$

In Stock, Qty 11

0

20

Toro 126-4639-03

LINK-LIFT

$69.99

$

Usually ships in 3-6 days

0

21

Toro 126-5221

SPACER-STEPPED

$6.49

$

Usually ships in 3-6 days

0

22

Toro 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 19

0

23

Toro 3231-37

SCREW-CARR

$4.99

$

Usually ships in 3-6 days

0

24

Toro 126-5222

PLATE-LOCK, TRANSPORT

$18.99

$

Usually ships in 3-6 days

0

25

Toro 126-5593

GROMMET

$1.49

$

Usually ships in 3-6 days

0

26

Toro 126-5223

ROD-LOCK, TRANSPORT

$5.49

$

Usually ships in 3-6 days

0

27

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

30

Toro 126-5401

PIN-HOC

$21.99

$

Usually ships in 3-6 days

0

31

$10.99

$

Usually ships in 3-6 days

0
