74449 (Z 400) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) HEIGHT-OF-CUT ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

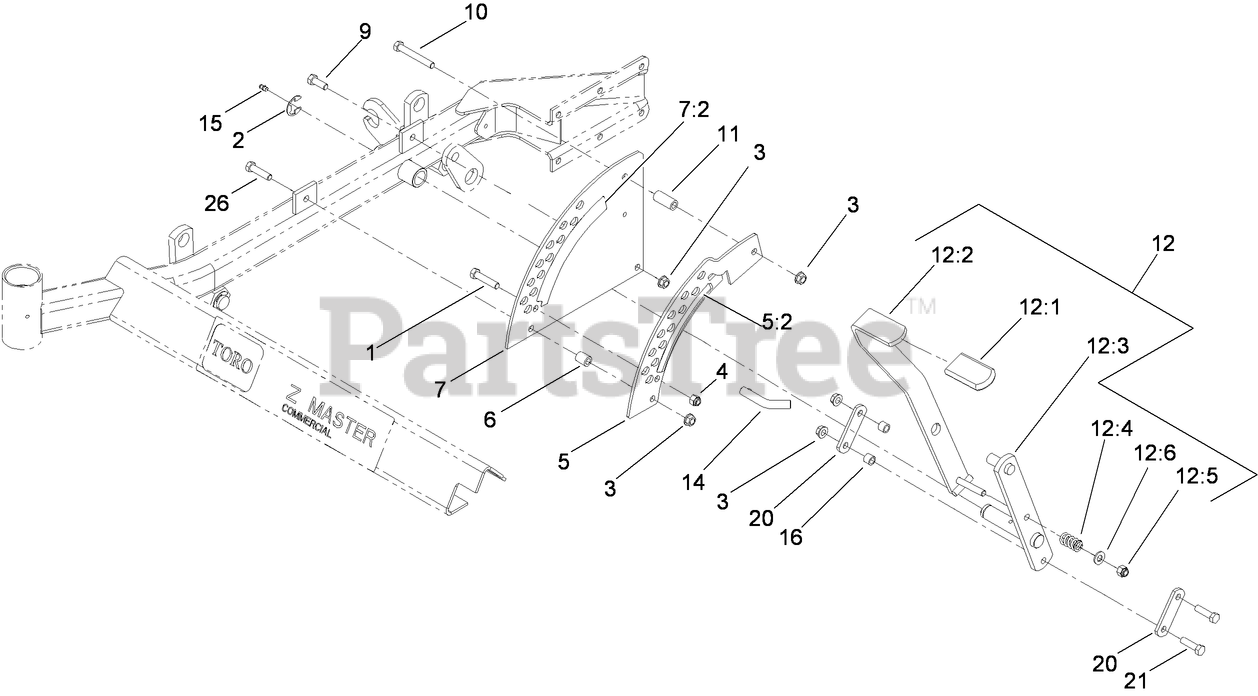

HEIGHT-OF-CUT ASSEMBLY Parts Diagram

  • Title

1

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 9

0

3

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 117-0372

PLATE-HOC, INNER

$

$

Not available

5:2

Toro 108-1050

DECAL-DECK HEIGHT, INNER

$15.99

$

Usually ships in 3-6 days

0

6

Toro 1-633080

BUSHING-LEVER, LIFT

$10.99

$

Usually ships in 3-6 days

0

7

Toro 117-0371

PLATE-HOC, OUTER

$

$

Not available

7:2

Toro 108-1051

DECAL-DECK HEIGHT, OUTER

$23.99

$

In Stock, only 1 left!

0

9

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

10

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Toro 1-633082

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

12

Toro 110-5870

DECK LIFT HANDLE ASM

$

$

Not available

12:1

Toro 1-633295

GRIP-LEVER, LIFT

$7.99

$

In Stock, only 3 left!

0

12:2

Toro 103-2078

HANDLE-LIFT
(Superseded to 103-2078-03)

$64.99

$

Usually ships in 3-6 days

0

12:3

Toro 106-6598

LIFT ARM ASM

$

$

Not available

12:4

Toro 1-633325

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

12:5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12:6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 109-8757

PIN-HOC

$8.99

$

In Stock, only 3 left!

0

15

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

16

Toro 103-1918

Bushing

$7.99

$

In Stock, Qty 6

0

20

Toro 1-633068

ARM-LIFT, DECK

$11.99

$

Usually ships in 3-6 days

0

21

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

26

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
