74448 (Z 400) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) PISTON AND CRANKSHAFT ASSEMBLY KAWASAKI FH641V-DS19-R Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

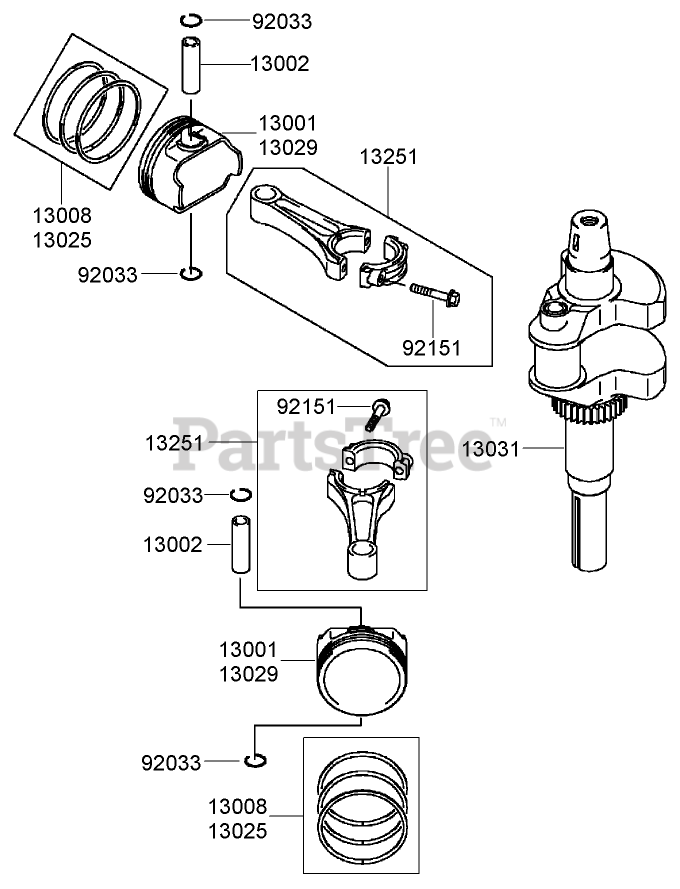

PISTON AND CRANKSHAFT ASSEMBLY KAWASAKI FH641V-DS19-R Parts Diagram

  • Title

13001

Kawasaki 13001-7007

Piston-Engine
(Superseded to 13001-7006)

Note: Obtain parts from www.kawpowerepc.com

$39.99

$

In Stock, only 3 left!

0

13002

Kawasaki 13002-7001

Pin-Piston

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 11

0

13008

Kawasaki 13008-6058

Piston Ring Set

Note: Obtain parts from www.kawpowerepc.com

$81.99

$

In Stock, Qty 20+

0

13025

Kawasaki 13025-7002

Piston Ring Set (L, 0.50)

Note: Obtain parts from www.kawpowerepc.com

$54.99

$

In Stock, only 2 left!

0

13029

Kawasaki 13029-7003

Piston-Engine (L, 0.50)
(Superseded to 13029-7002)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

13031

Kawasaki 13031-7048

CRANKSHAFT

Note: Obtain parts from www.kawpowerepc.com

$354.99

$

Usually ships in 2-5 days

0

13251

Kawasaki 13251-7005

Connecting Rod ASM
(Superseded to 13251-0048)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92033

Kawasaki 92033-7002

Ring-Snap
(Superseded to 92033-0725)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 11

0

92151

Kawasaki 92151-7017

BOLT (6X35)
(Superseded to 921542842)

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 20+

0
