74448 (Z 400) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) DECK ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

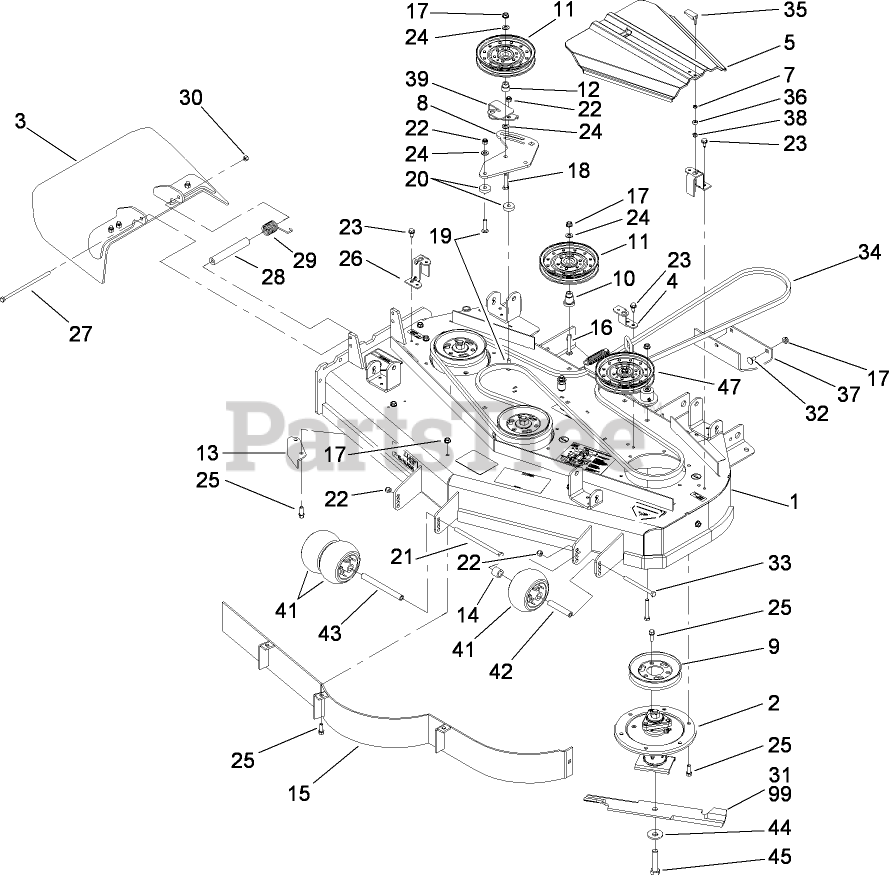

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 114-1515

DECK DECAL ASM

$

$

Not available

2

Toro 107-8504

SPINDLE ASM

$387.99

$

In Stock, only 3 left!

0

3

Toro 108-7770

RUBBER DEFLECTOR ASM

$227.99

$

In Stock, only 3 left!

0

4

Toro 108-2177-01

BRACKET-COVER, TALL

$31.99

$

In Stock, only 1 left!

0

5

Toro 107-8536

COVER-BELT

$22.99

$

In Stock, only 2 left!

0

7

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

8

Toro 107-8516-01

PLATE-IDLER

$59.99

$

Usually ships in 3-6 days

0

9

Toro 107-1684

PULLEY

$21.99

$

In Stock, only 1 left!

0

10

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, only 4 left!

0

11

Toro 1-633109

Idler-Flat
(Superseded to 132-9424)

$43.99

$

In Stock, Qty 16

0

12

Toro 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

13

Toro 107-8541-01

BAFFLE-DISCHARGE

$21.99

$

Usually ships in 3-6 days

0

14

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

15

Toro 108-2187-01

BAFFLE ASM

$228.99

$

Usually ships in 3-6 days

0

16

Toro 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

17

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

18

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

20

Toro 105-7788

Spacer

$9.49

$

In Stock, only 2 left!

0

21

Toro 323-28

SCREW-HH

$8.49

$

In Stock, only 1 left!

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

23

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

25

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

26

Toro 108-4121-01

BRACKET-COVER
(Superseded to 119-4220-01)

$12.99

$

In Stock, Qty 6

0

27

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

28

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

29

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 107-3192-03

BLADE-16.5 INCH (HIGH FLOW)

$30.99

$

In Stock, only 4 left!

0

32

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

33

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

34

Toro 106-7369

BELT-V

$125.99

$

In Stock, only 1 left!

0

35

Toro 106-6777

HANDLE-LATCH, SWELL

$26.99

$

In Stock, Qty 9

0

36

Toro 106-6778

BUSHING-LATCH, SWELL

$1.99

$

In Stock, Qty 20+

0

37

Toro 107-3166-01

SKID

$65.99

$

Usually ships in 3-6 days

0

38

Toro 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 108-2228-01

BRACKET-COVER

$46.99

$

Usually ships in 3-6 days

0

41

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

42

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

43

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 8

0

44

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 18

0

45

Toro 103-0862

Screw-Cap

$5.99

$

In Stock, Qty 18

0

47

SPRING IDLER ASM

Note: Not serviced separately

$

$

Not available

99

Toro 107-3193-03

BLADE-ROTARY, 16.5 INCH (LOW FLOW)

Note: Optional Equipment

$33.99

$

Usually ships in 3-6 days

0

99

Toro 107-3194-03

BLADE-ROTARY, 16.5 INCH (MED FLOW)

Note: Optional Equipment

$27.99

$

In Stock, only 1 left!

0

99

Toro 107-3195-03

BLADE-ROTARY, 16.5 INCH (ATOMIC)

Note: Optional Equipment

$39.99

$

In Stock, Qty 9

0

99

Toro 107-3196-03

BLADE-RECYCLER, 16.5 INCH

Note: Optional Equipment

$31.99

$

Usually ships in 3-6 days

0
