74447 TE (HD 1500) - Toro 122cm Titan Zero-Turn Mower (SN: 400000000 - 999999999) DECK ASSEMBLY Parts Diagram

122cm Titan Zero-Turn Mower

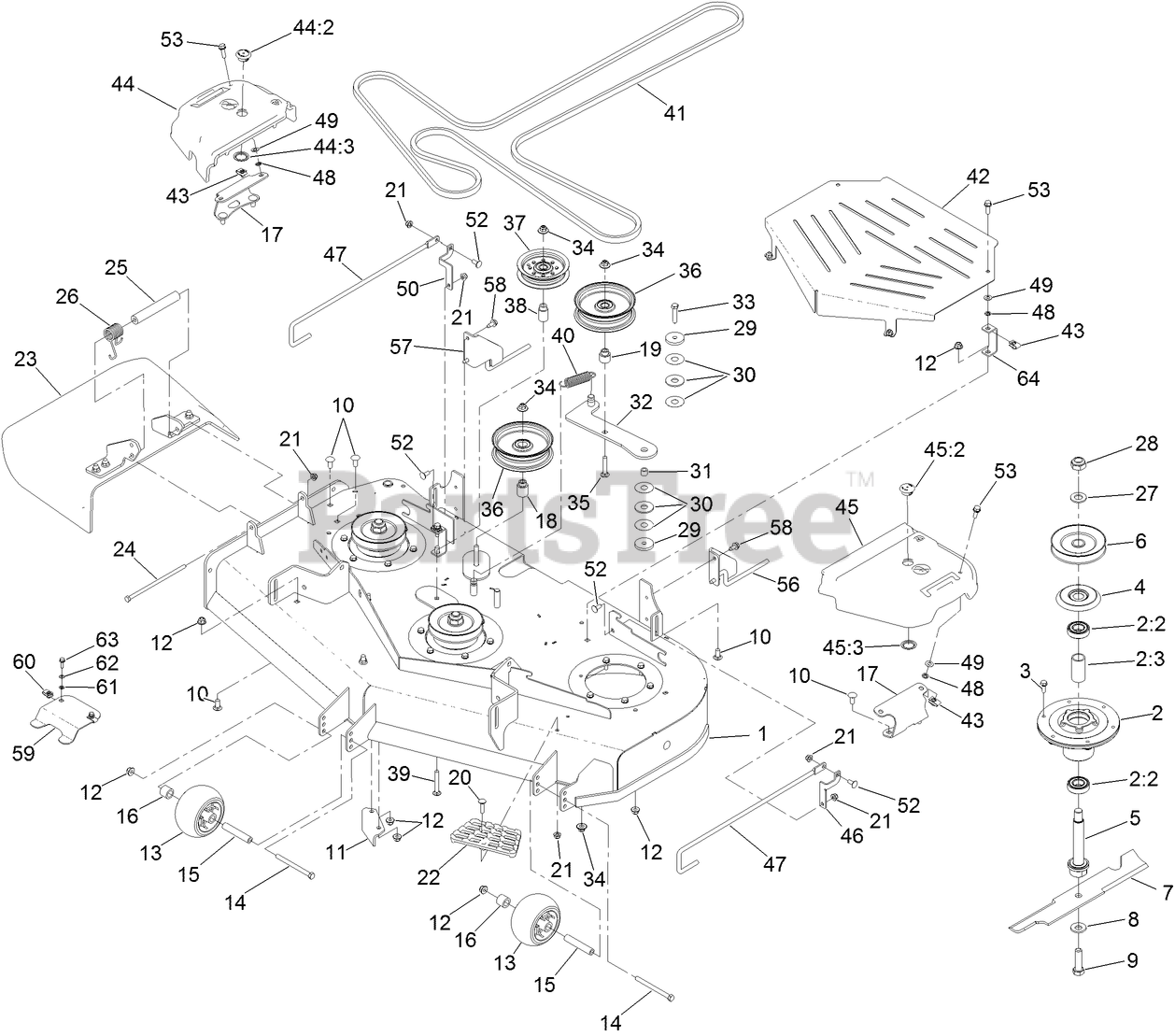

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 126-8956

DECK DECAL ASM

$2614.99

$

Usually ships in 3-6 days

0

2

Toro 120-5477

SPINDLE ASM
(Superseded to 139-2357)

$108.99

$

In Stock, Qty 20+

0

2:2

Toro 116-0720

BEARING-BALL

$23.99

$

In Stock, Qty 20+

0

2:3

Toro 115-2641

SPACER-BEARING

$13.99

$

In Stock, Qty 5

0

3

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

4

Toro 117-7210

SHIELD-BEARING

$11.99

$

In Stock, Qty 20+

0

5

Toro 126-7629

SHAFT-SPINDLE

$44.99

$

In Stock, Qty 6

0

6

Toro 117-7326

PULLEY

$61.99

$

In Stock, only 2 left!

0

7

Toro 133-2137

BLADE-ROTARY, 16.5IN (HI FLOW)

$31.99

$

In Stock, Qty 11

0

8

Toro 125-1736

WASHER-BELLEVILLE

$4.49

$

In Stock, Qty 20+

0

9

Toro 51-4060

SCREW-BLADE

$8.49

$

In Stock, Qty 20+

0

10

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 6

0

11

Toro 107-8541-01

BAFFLE-DISCHARGE

$22.99

$

Usually ships in 3-6 days

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

14

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

15

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 20+

0

16

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

17

Toro 126-9121-01

BRACKET-COVER, BELT

$33.99

$

Usually ships in 3-6 days

0

18

Toro 126-7683

BUSHING-IDLER

$5.49

$

In Stock, Qty 10

0

19

Toro 126-7684

BUSHING-IDLER

$3.49

$

In Stock, only 3 left!

0

20

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 126-4781-03

STEP-DECK

$30.99

$

In Stock, only 2 left!

0

23

Toro 120-2451

DEFLECTOR ASM

$254.99

$

Usually ships in 3-6 days

0

24

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 12

0

25

Toro 105-4622

SPACER

$11.99

$

In Stock, only 4 left!

0

26

Toro 108-4052

SPRING-TORSION

$26.99

$

In Stock, Qty 5

0

27

Toro 92-5836

WASHER

$6.49

$

In Stock, Qty 19

0

28

Toro 3296-67

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

0

29

Toro 110-9981

WASHER-PLAIN

$15.99

$

In Stock, Qty 20+

0

30

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 20+

0

31

Toro 1-413088

BUSHING-LEVER, LIFT

$11.99

$

In Stock, Qty 11

0

32

Toro 115-5054

ARM-IDLER

$77.99

$

In Stock, only 2 left!

0

33

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

35

Toro 3231-6

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

36

Toro 116-4669

IDLER-PULLEY, FLAT

$84.99

$

In Stock, Qty 20+

0

37

Toro 116-3626

PULLEY-IDLER
(Superseded to 132-4718)

$35.99

$

In Stock, Qty 20+

0

38

Toro 1-413113

BUSHING-IDLER

$6.49

$

In Stock, Qty 20+

0

39

Toro 3231-31

SCREW-CARR

$7.99

$

In Stock, Qty 20+

0

40

Toro 108-4056

SPRING-EXTENSION

$8.99

$

In Stock, Qty 20+

0

41

Toro 126-7731

BELT, DECK DRIVE

$140.99

$

In Stock, only 4 left!

0

42

Toro 126-7820-03

GUARD-CENTER BELT 48

$176.99

$

Usually ships in 3-6 days

0

43

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 19

0

44

Toro 126-9325

RH BELT COVER ASM

$32.99

$

Usually ships in 3-6 days

0

44:2

Toro 126-9323

PLUG

$3.49

$

Usually ships in 3-6 days

0

44:3

Toro 126-9324

RING-RETAINING

$1.49

$

Usually ships in 3-6 days

0

45

Toro 126-9326

LH BELT COVER ASM

$46.99

$

Usually ships in 3-6 days

0

45:2

Toro 126-9323

PLUG

$3.49

$

Usually ships in 3-6 days

0

45:3

Toro 126-9324

RING-RETAINING

$1.49

$

Usually ships in 3-6 days

0

46

Toro 126-7761

BRACKET-MOUNT, REAR (LH)

$56.99

$

Usually ships in 3-6 days

0

47

Toro 126-7759

ROD-SUPPORT, LOWER

$98.99

$

Usually ships in 3-6 days

0

48

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

49

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

50

Toro 126-7762

BRACKET-MOUNT, REAR (RH)

$56.99

$

Usually ships in 3-6 days

0

52

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

53

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

56

Toro 126-7776

SUPPORT-LOWER, LH

$121.99

$

Usually ships in 3-6 days

0

57

Toro 126-7777

SUPPORT-LOWER, RH

$121.99

$

Usually ships in 3-6 days

0

58

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

59

Toro 126-7751-03

PLATE-CLAMP, FOOTPAN

$32.99

$

Usually ships in 3-6 days

0

60

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

61

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

62

Toro 3256-60

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

63

Toro 115-5103

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

64

Toro 126-9646

BRACKET-GUARD

$28.99

$

Usually ships in 3-6 days
