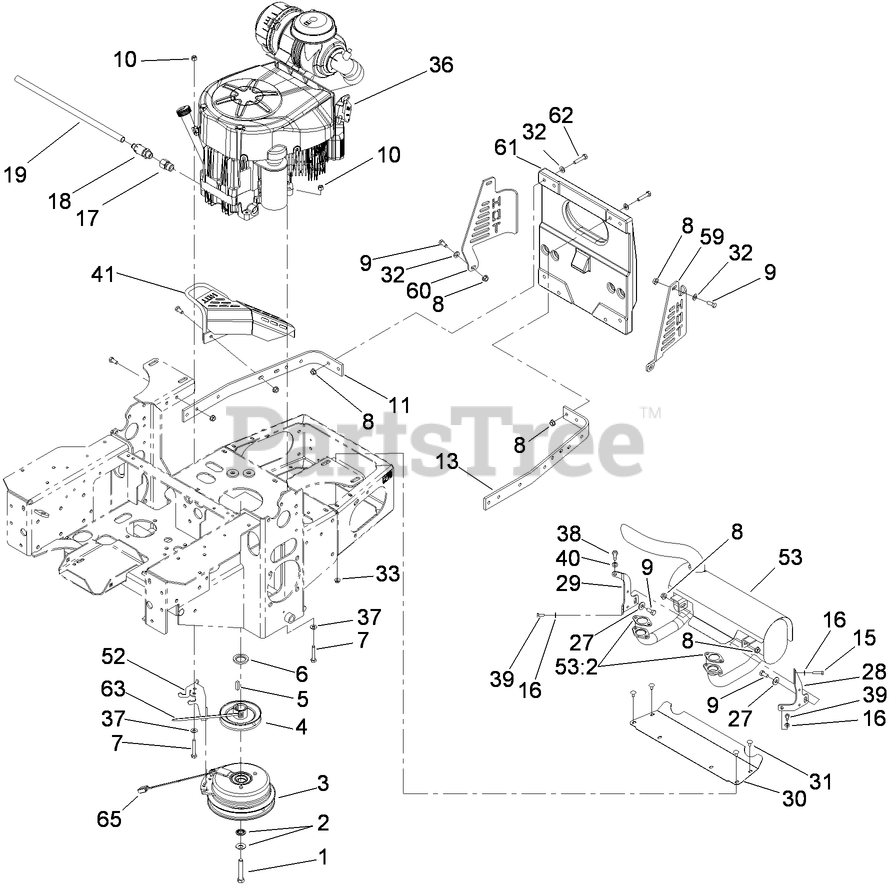

74445 (Z 400) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 310000001 - 310999999) (2010) ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram
52" Z Master Zero-Turn Mower, Side-Discharge Deck
ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram
Toro 3212-12
$3.49
$
Toro 1-603610
$5.49
$
Toro 109-9276
$626.99
$
Toro 103-3913
$70.99
$
Toro 1-807259
$2.49
$
Toro 103-2308
$9.49
$
Toro 322-10
$0.99
$
Toro 32128-20
$1.49
$
Toro 322-5
$0.99
$
Toro 3296-29
$2.49
$
Toro 103-3078-03
$
$
Not available
Toro 103-3164-03
$
$
Not available
Toro 33113-025
$2.49
$
Toro 1-805004
$1.49
$
Toro 103-1966
$19.99
$
Toro 92-6877
$43.99
$
Toro 106-7022
$9.99
$
Toro 3256-3
$0.99
$
Toro 103-2993-03
$60.99
$
Toro 103-2994-03
$33.99
$
Toro 103-2740-03
$
$
Not available
Toro 3229-10
$1.49
$
Toro 3256-23
$2.49
$
Toro 32128-33
$0.99
$
Note: Not serviced separately
$
$
Not available
Note: Obtain parts from www.kawpowerepc.com
$
$
Not available
Toro 1-303334
$2.99
$
Toro 33114-025
$1.99
$
Toro 33113-016
$0.99
$
Toro 1-805005
$1.49
$
Toro 103-3218-03
$
$
Not available
Toro 109-7070-03
$52.99
$
Toro 103-3427
$645.99
$
Toro 1-653313
$5.49
$
Toro 103-3287-03
$68.99
$
Toro 103-3288-03
$
$
Not available
Toro 107-8421-03
$
$
Not available
Toro 322-7
$1.49
$
$0.99
$
Toro 109-9274
$21.99
$
