74444 (Z 400) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 310000001 - 310999999) (2010) DECK CONNECTION ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

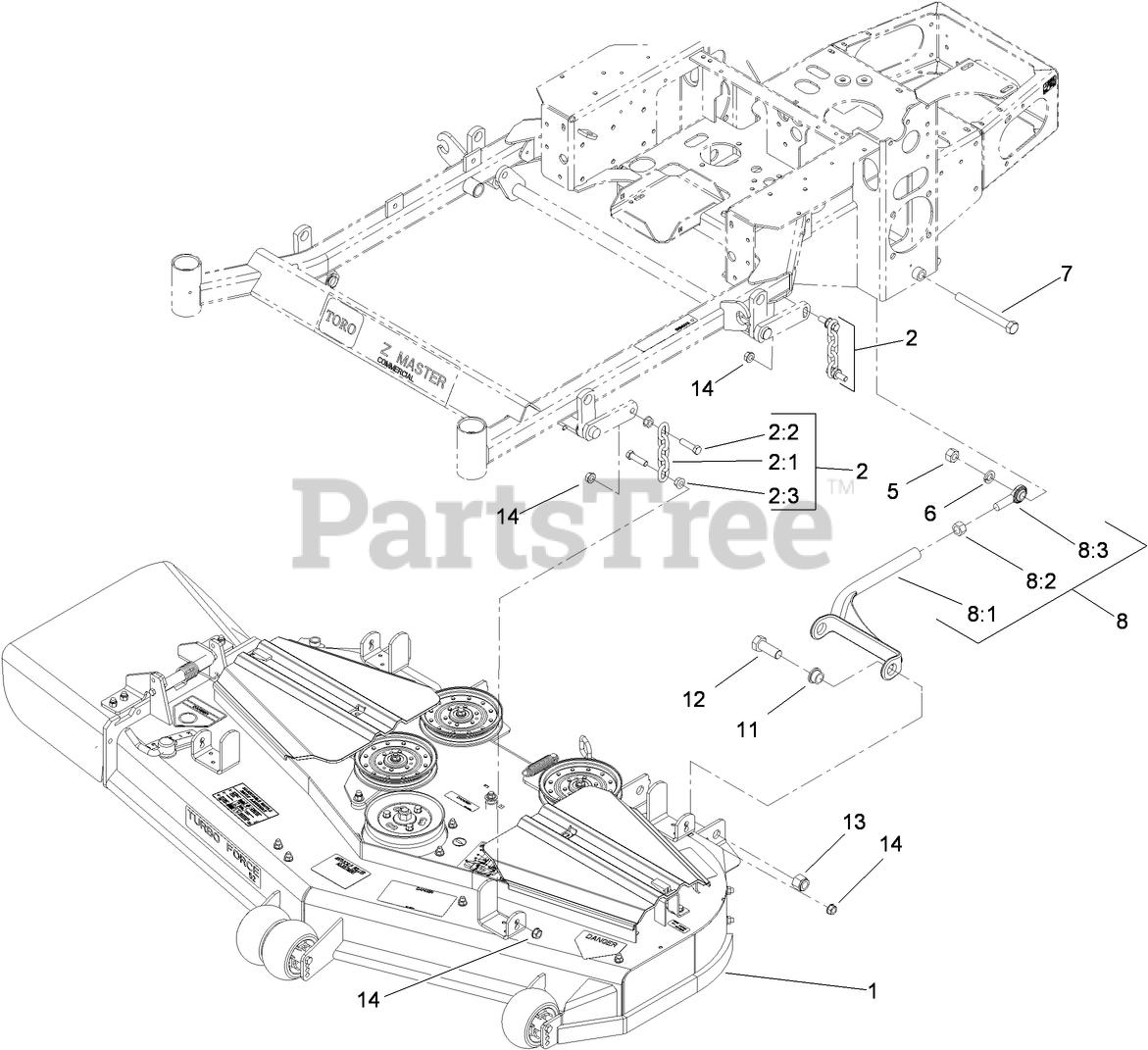

DECK CONNECTION ASSEMBLY Parts Diagram

  • Title

1

DECK ASM

Note: Not serviced separately

$

$

Not available

2

Toro 103-9792

DECK CHAIN ASM

$13.99

$

In Stock, only 1 left!

0

2:1

Toro 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

2:2

Toro 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

2:3

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 18

0

5

Toro 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 15

0

6

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 1-800344

SCREW

$15.99

$

In Stock, only 1 left!

0

8

Toro 108-7768

STRUT ASM

$243.99

$

In Stock, only 1 left!

0

8:1

Toro 108-7753-03

STRUT-DECK

$148.99

$

Usually ships in 3-6 days

0

8:2

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

8:3

Toro 1-633029

BALLJOINT-SPHERICAL

$66.99

$

In Stock, Qty 12

0

11

Toro 93-2877

BUSHING

$3.49

$

Usually ships in 3-6 days

0

12

Toro 328-24

SCREW-HH

$26.99

$

In Stock, only 4 left!

0

13

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 12

0

14

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 18

0
