74437 (ZD 420 T) - Toro 42" TimeCutter Zero-Turn Mower (SN: 290000001 - 290999999) (2009) ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

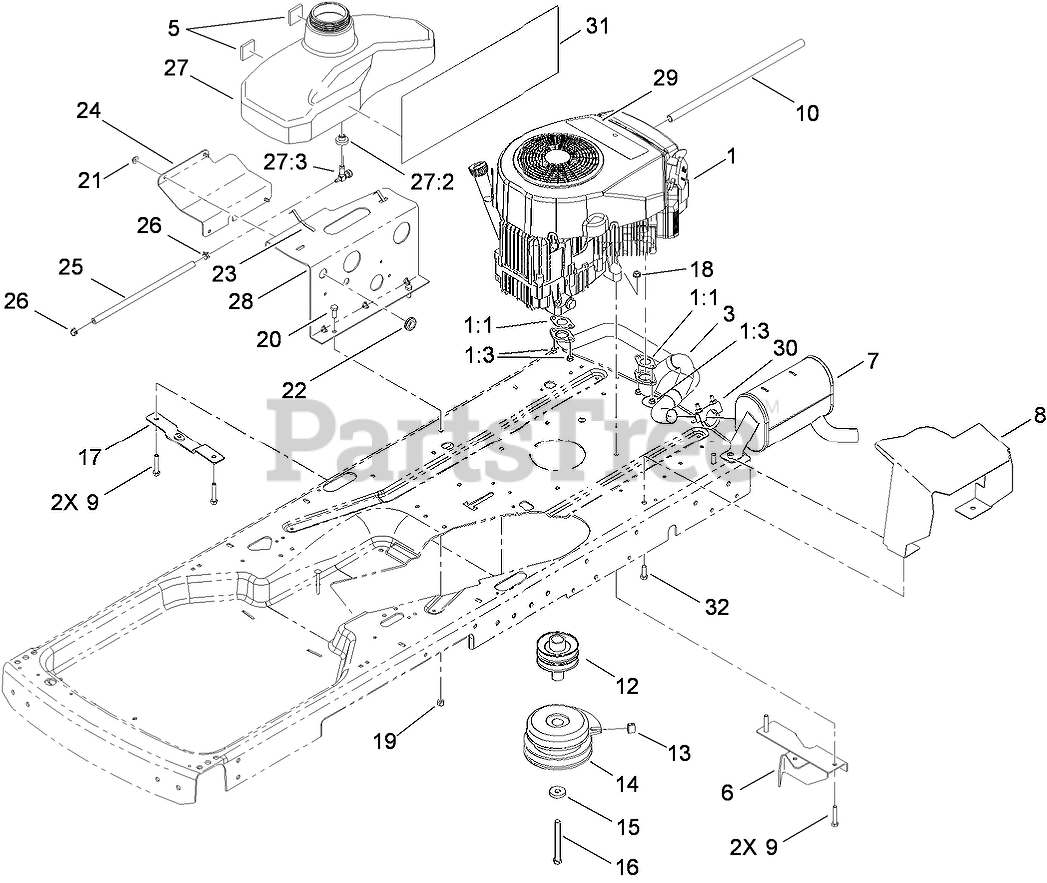

ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

  • Title
1

ENGINE-KAWASAKI, FH541V-CS50

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FH541V-CS50

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1:1

Toro 114-3661

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0

1:3

Toro 114-3693

NUT-M8

$

$

Not available

3

Toro 114-3667

MANIFOLD

$

$

Not available

5

Toro 104-2488

FOAM-SWITCH, SEAT

$7.99

$

Usually ships in 3-6 days

0

6

Toro 107-4873

BRACKET-PIVOT

$56.99

$

Usually ships in 3-6 days

0

7

Toro 114-3666

MUFFLER

$

$

Not available

8

Toro 114-9425-03

SHIELD-MUFFLER

$131.99

$

Usually ships in 3-6 days

0

9

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

10

Toro 106-7022

TUBE-DRAIN, OIL

$9.49

$

Usually ships in 3-6 days

0

12

Toro 105-3472

PULLEY-ENGINE

$298.99

$

Usually ships in 3-6 days

0

13

Toro 98-5023

BUMPER

$8.49

$

Usually ships in 3-6 days

0

14

Toro 104-3334

CLUTCH-ELECTRIC

$474.99

$

In Stock, only 2 left!

0

15

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

16

Toro 3212-16

SCREW-HH

$19.99

$

In Stock, Qty 12

0

17

Toro 106-2156

PLATE-MOUNT, IDLER

$37.99

$

Usually ships in 3-6 days

0

18

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

22

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

23

Toro 609830

SPRING

$5.49

$

In Stock, Qty 6

0

24

Toro 108-2315-03

PLATE-SUPPORT

$

$

Not available

25

Toro 114-9448

HOSE-FUEL

$

$

Not available

26

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

27

Toro 105-3464

GAS TANK ASM

$

$

Not available

27:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 10

0

27:3

Toro 110-6565

VALVE-FUEL

$38.99

$

Usually ships in 3-6 days

0

28

Toro 108-2314-03

PLATE-TANK

$

$

Not available

29

$

$

Not available

30

Toro 114-3668

CLAMP-MUFFLER

$

$

Not available

31

Toro 112-4776

FOIL-SHIELD, HEAT

$

$

Not available

32

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0
