74437 (ZD 420 T) - Toro 42" TimeCutter Zero-Turn Mower (SN: 290000001 - 290999999) (2009) CYLINDER AND CRANKCASE ASSEMBLY KAWASAKI FH541V-CS50 Parts Diagram

42" TimeCutter Zero-Turn Mower

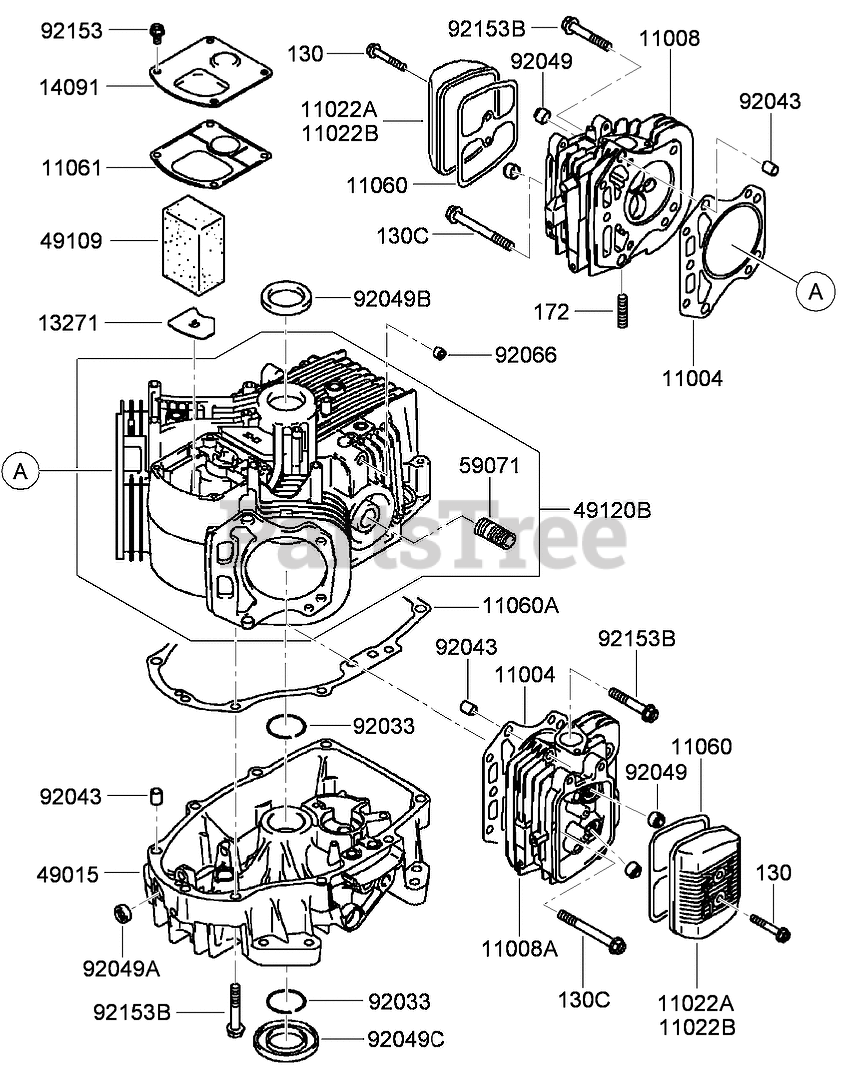

CYLINDER AND CRANKCASE ASSEMBLY KAWASAKI FH541V-CS50 Parts Diagram

  • Title

130

Kawasaki 130AA0640

BOLT-FLANGED (6X40)
(Superseded to 130B0640)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

130C

Kawasaki 130CA0875

BOLT-FLANGED (8X75)
(Superseded to 130T0875)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 9

0

172

Kawasaki 172BA0818

BOLT-STUD (8X18)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 20+

0

11004

Kawasaki 11004-7016

GASKET-HEAD
(Superseded to 11004-7010)

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, Qty 20+

0

11008

Kawasaki 11008-6043

HEAD-CYLINDER, NO. 1
(Superseded to 11008-6042)

Note: Obtain parts from www.kawpowerepc.com

$273.99

$

In Stock, Qty 9

0

11008A

Kawasaki 11008-7020

HEAD-CYLINDER, No. 2
(Superseded to 11008-7009)

Note: Obtain parts from www.kawpowerepc.com

$273.99

$

In Stock, only 4 left!

0

11022A

Kawasaki 11022-7018

CASE-ROCKER
(Superseded to 11022-7028)

Note: This part can be used as substitute on the product and is supplied until stock is exhausted

$14.99

$

In Stock, only 3 left!

0

11022A

Kawasaki 11022-7018

CASE-ROCKER
(Superseded to 11022-7028)

Note: Obtain parts from www.kawpowerepc.com

$14.99

$

In Stock, only 3 left!

0

11022B

Kawasaki 11022-7028

CASE-ROCKER
(Superseded to 11022-7018)

Note: Obtain parts from www.kawpowerepc.com

$14.99

$

In Stock, only 3 left!

0

11060

Kawasaki 11060-7001

GASKET-CASE, ROCKER

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-7008

GASKET-COVER, CRANKCASE
(Superseded to 11060-7007)

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-7001

GASKET-BREATHER
(Superseded to 99996-6104)

Note: Obtain parts from www.kawpowerepc.com

$18.99

$

In Stock, Qty 20+

0

13271

Kawasaki 13271-7016

Plate

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, only 3 left!

0

14091

Toro 14091-7006

Cover

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

49015

Kawasaki 49015-6253

Cover-Crankcase
(Superseded to 49015-6226)

Note: Obtain parts from www.kawpowerepc.com

$180.99

$

Usually ships in 2-5 days

0

49109

Toro 49109-7002

Element-Breather

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

49120B

Kawasaki 49120-7113

CRANKCASE
(Superseded to 49120-7023)

Note: Obtain parts from www.kawpowerepc.com

$552.99

$

Usually ships in 2-5 days

0

59071

Kawasaki 59071-2079

Joint

Note: Obtain parts from www.kawpowerepc.com

$6.49

$

In Stock, Qty 8

0

92033

Kawasaki 92033-7003

Ring-Snap

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

92043

Kawasaki 92043-7001

Pin

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

92049

Kawasaki 92049-7001

SEAL-OIL, R V C2 (6X11X10.2)

Note: Obtain parts from www.kawpowerepc.com

$8.49

$

Usually ships in 2-5 days

0

92049A

Kawasaki 92049-7005

SEAL-OIL, S O (8X14X5 H S)
(Superseded to 920497019)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

92049B

Kawasaki 92049-7010

SEAL-OIL, SD (35X48X8 R HS)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0

92049C

Kawasaki 92049-7011

SEAL-OIL, S D (35X62X8 L H S)

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-7026

PLUG
(Superseded to 920660881)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 6

0

92153

Kawasaki 92153-7043

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92153B

Kawasaki 92153-7054

BOLT (8X50)

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, Qty 20+

0
