74434 (ZD 530) - Toro 42" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) STARTER MOTOR ASSEMBLY HONDA GXV530 EXA2 Parts Diagram

42" TimeCutter Zero-Turn Mower

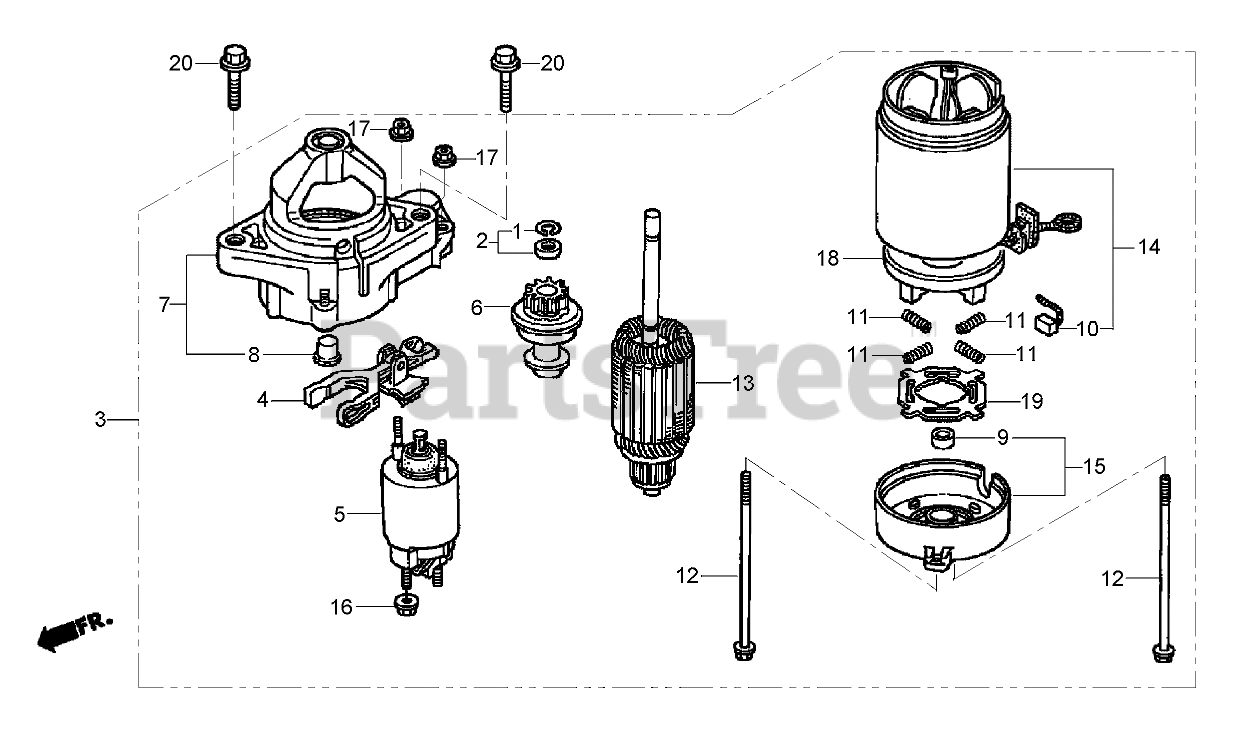

STARTER MOTOR ASSEMBLY HONDA GXV530 EXA2 Parts Diagram

  • Title

1

Honda 30201-PH9-004

RING-SNAP (DENSO)

Note: Obtain parts from www.honda-engines.com

$3.99

$

Usually ships in 3-6 days

0

2

Honda 30202-PZ1-003

CLUTCH STOP COLLAR SET

Note: Obtain parts from www.honda-engines.com

$23.99

$

Usually ships in 3-6 days

0

3

Toro 31200-Z0A-003

STARTER MOTOR ASM

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

4

Honda 31203-PH9-004

LEVER-DRIVE, PINION

Note: Obtain parts from www.honda-engines.com

$44.99

$

Usually ships in 3-6 days

0

5

Toro 31204-ZG4-801

MAGNETIC SWITCH ASM

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

6

Honda 31207-Z0A-003

CLUTCH-OVERRUNNING

Note: Obtain parts from www.honda-engines.com

$170.99

$

Usually ships in 3-6 days

0

7

Honda 31208-Z0A-003

HOUSING-DRIVE SIDE

Note: Obtain parts from www.honda-engines.com

$106.99

$

Usually ships in 3-6 days

0

8

Honda 31209-PH9-004

BEARING (A)

Note: Obtain parts from www.honda-engines.com

$11.99

$

Usually ships in 3-6 days

0

9

Honda 31210-PH9-004

BEARING (B)

Note: Obtain parts from www.honda-engines.com

$14.99

$

Usually ships in 3-6 days

0

10

Honda 31211-PH9-004

BRUSH

Note: Obtain parts from www.honda-engines.com

$21.99

$

Usually ships in 3-6 days

0

11

Honda 31212-PH9-004

SPRING-BRUSH

Note: Obtain parts from www.honda-engines.com

$7.99

$

Usually ships in 3-6 days

0

12

Honda 31214-PH9-004

BOLT-THROUGH

Note: Obtain parts from www.honda-engines.com

$12.99

$

Usually ships in 3-6 days

0

13

Honda 31217-Z0A-003

ARMATURE

Note: Obtain parts from www.honda-engines.com

$153.99

$

Usually ships in 3-6 days

0

14

Honda 31218-P64-N01

YOKE

Note: Obtain parts from www.honda-engines.com

$356.99

$

Usually ships in 3-6 days

0

15

Honda 31219-Z0A-003

FRAME-END, COMMUTATOR

Note: Obtain parts from www.honda-engines.com

$26.99

$

Usually ships in 3-6 days

0

16

Honda 31220-PH9-004

NUT-HEX (8MM)

Note: Obtain parts from www.honda-engines.com

$4.99

$

Usually ships in 3-6 days

0

17

Honda 31223-PA0-006

NUT-FLANGE (5MM)

Note: Obtain parts from www.honda-engines.com

$4.99

$

Usually ships in 3-6 days

0

18

Honda 31231-PH9-004

HOLDER-BRUSH

Note: Obtain parts from www.honda-engines.com

$67.99

$

Usually ships in 3-6 days

0

19

Honda 31233-PH9-004

INSULATOR-HOLDER, BRUSH

Note: Obtain parts from www.honda-engines.com

$41.99

$

Usually ships in 3-6 days

0

20

Honda 95701-10040-00

BOLT-FLANGE (10X40)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, only 4 left!

0
