74434 (ZD 530) - Toro 42" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) OIL PAN ASSEMBLY HONDA GXV530 EXA2 Parts Diagram

42" TimeCutter Zero-Turn Mower

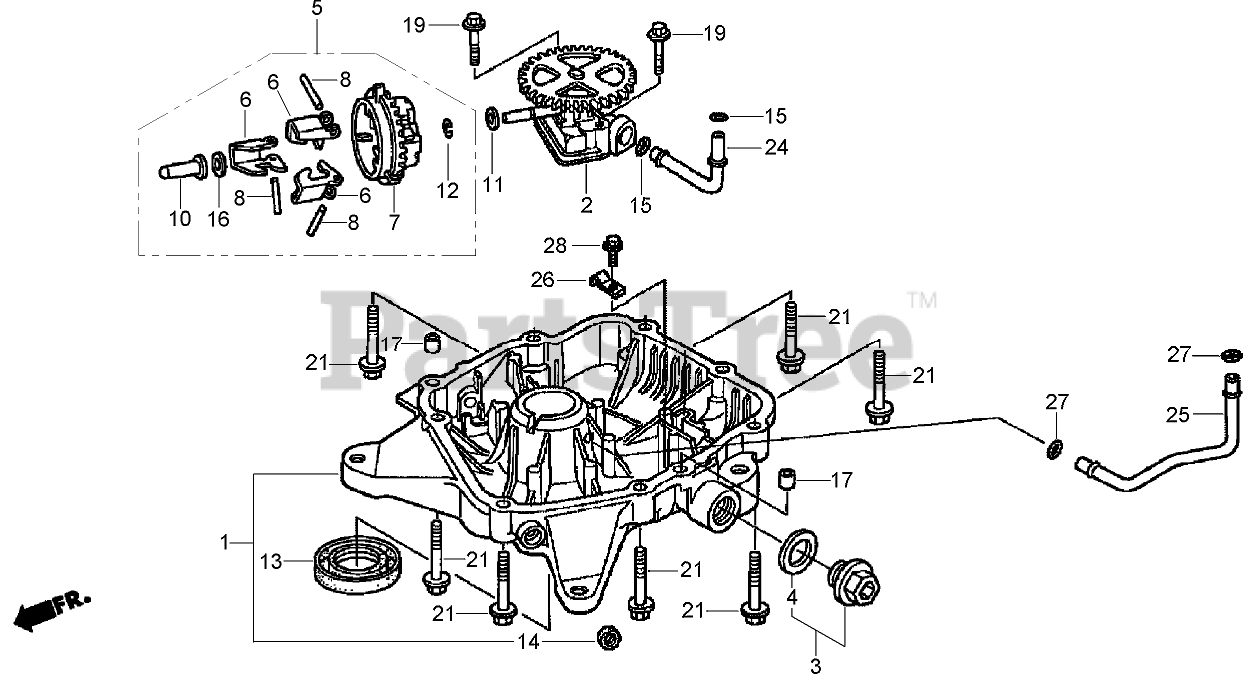

OIL PAN ASSEMBLY HONDA GXV530 EXA2 Parts Diagram

  • Title

1

Honda 11300-Z0A-830

OIL PAN ASM

Note: Obtain parts from www.honda-engines.com

$161.99

$

Usually ships in 3-6 days

0

2

Honda 15100-Z0A-811

OIL PUMP ASM

Note: Obtain parts from www.honda-engines.com

$110.99

$

Usually ships in 3-6 days

0

3

Honda 15550-Z0A-810

DRAIN CAP ASM

Note: Obtain parts from www.honda-engines.com

$7.49

$

In Stock, only 3 left!

0

4

Honda 15625-ZE1-003

GASKET-CAP, OIL FILLER

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 3 left!

0

5

Honda 16510-Z0A-000

GOVERNOR ASM

Note: Obtain parts from www.honda-engines.com

$29.99

$

Usually ships in 3-6 days

0

6

Honda 16511-Z0A-000

WEIGHT-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$3.99

$

Usually ships in 3-6 days

0

7

Honda 16512-Z0A-000

HOLDER-WEIGHT, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$20.99

$

Usually ships in 3-6 days

0

8

Honda 16513-ZE2-000

PIN-WEIGHT, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$2.49

$

Usually ships in 3-6 days

0

10

Honda 16531-Z0A-000

SLIDER-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$3.99

$

In Stock, only 3 left!

0

11

Honda 90473-147-000

WASHER (6X16)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, only 1 left!

0

12

Honda 90602-ZE1-000

CLIP-HOLDER, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, only 3 left!

0

13

Honda 91202-Z0A-003

SEAL-OIL (31X50X8)

Note: Obtain parts from www.honda-engines.com

$12.99

$

In Stock, Qty 5

0

14

Honda 91259-VM0-000

SEAL-OIL (10X16X4.5)

Note: Obtain parts from www.honda-engines.com

$6.49

$

In Stock, only 1 left!

0

15

Honda 91301-Z0A-003

O-RING (7.5X2.3)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 2 left!

0

16

Honda 94101-06800

WASHER-PLAIN (6MM)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 20+

0

17

Honda 94301-08140

Pin-Dowel (8X14)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, Qty 8

0

19

Honda 95701-06035-00

BOLT-FLANGE (6X35)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 2 left!

0

21

Honda 95701-08040-00

BOLT-FLANGE (8X40)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 20+

0

24

Honda 15161-Z0A-000

PIPE-PUMP, OIL

Note: Obtain parts from www.honda-engines.com

$9.49

$

Usually ships in 3-6 days

0

25

Honda 15162-Z0A-800

PIPE-SUPPLY, OIL

Note: Obtain parts from www.honda-engines.com

$18.99

$

Usually ships in 3-6 days

0

26

Honda 15163-Z0A-000

HOLDER-PIPE, OIL

Note: Obtain parts from www.honda-engines.com

$2.49

$

Usually ships in 3-6 days

0

27

Honda 91302-Z0A-003

O-RING (5.8X2)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 2 left!

0

28

Honda 95701-06012-00

BOLT-FLANGE (6X12)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 20+

0
