74434 (ZD 530) - Toro 42" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) CYLINDER ASSEMBLY HONDA GXV530 EXA2 Parts Diagram

42" TimeCutter Zero-Turn Mower

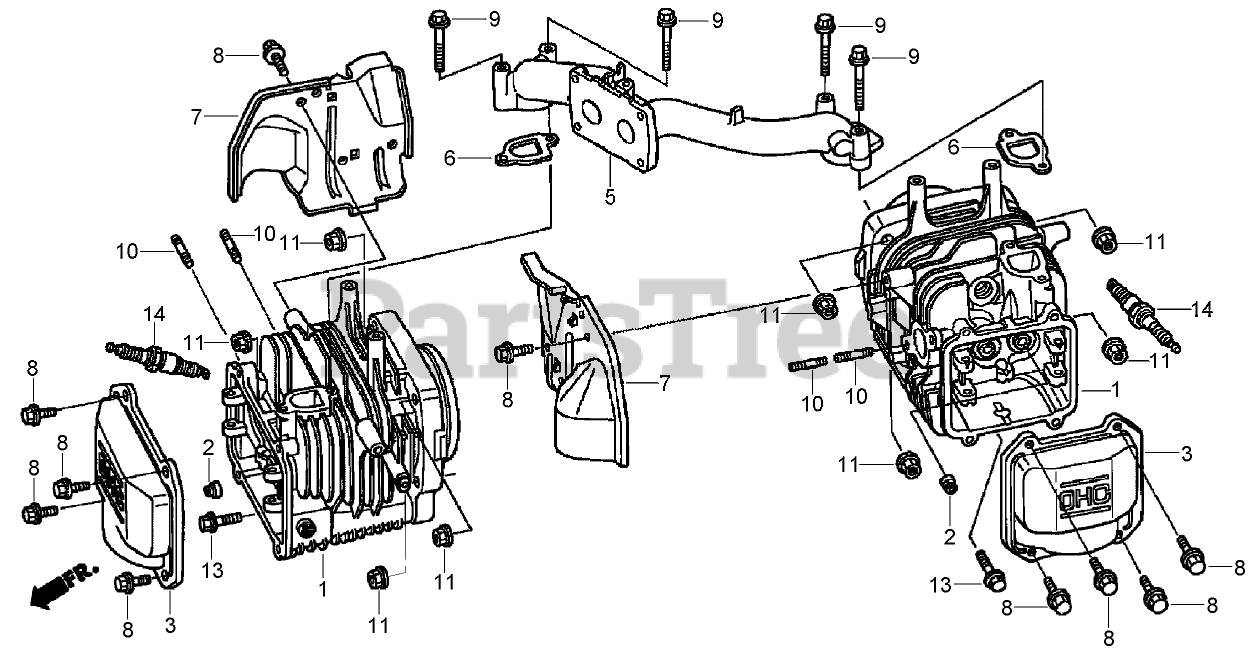

CYLINDER ASSEMBLY HONDA GXV530 EXA2 Parts Diagram

  • Title

1

Honda 12100-Z0A-406

CYLINDER

Note: Obtain parts from www.honda-engines.com

$280.99

$

Usually ships in 3-6 days

0

2

Honda 12209-422-005

SEAL-STEM, VALVE

Note: Obtain parts from www.honda-engines.com

$18.99

$

In Stock, only 2 left!

0

3

Honda 12311-Z0A-000

COVER-HEAD

Note: Obtain parts from www.honda-engines.com

$24.99

$

Usually ships in 3-6 days

0

5

Honda 17101-Z0A-000

MANIFOLD-INTAKE

Note: Obtain parts from www.honda-engines.com

$165.99

$

Usually ships in 3-6 days

0

6

Honda 17151-Z0A-000

GASKET-MANIFOLD, INTAKE

Note: Obtain parts from www.honda-engines.com

$5.99

$

In Stock, only 2 left!

0

7

Honda 19631-Z0A-000

SHROUD

Note: Obtain parts from www.honda-engines.com

$20.99

$

Usually ships in 3-6 days

0

8

Honda 90013-883-000

BOLT-FLANGE (6X12) (C T200)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 20+

0

9

Honda 90016-ZE8-000

BOLT-FLANGE (6X45) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 2 left!

0

10

Honda 90045-892-000

BOLT-STUD (6X28)

Note: Obtain parts from www.honda-engines.com

$5.49

$

Usually ships in 3-6 days

0

11

Honda 90201-Z0A-000

NUT-FLANGE (8MM)

Note: Obtain parts from www.honda-engines.com

$2.99

$

Usually ships in 3-6 days

0

13

Honda 95701-06030-00

BOLT-FLANGE (6X30)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 4 left!

0

14

Honda 98079-54846

SPARK PLUG (B P R4E S) (N G K)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, Qty 11

0

14

Honda 98079-54855

SPARK PLUG (W14E P R-U) (DENSO)

Note: Obtain parts from www.honda-engines.com

$3.99

$

In Stock, only 3 left!

0

14

Honda 98079-55846

SPARK PLUG (B P R 5E S) (N G K)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, Qty 20+

0

14

Honda 98079-55855

SPARK PLUG (W16E P R-U) (DENSO)

Note: Obtain parts from www.honda-engines.com

$3.49

$

Usually ships in 3-6 days
