74434 (ZD 530) - Toro 42" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) CRANKCASE ASSEMBLY HONDA GXV530 EXA2 Parts Diagram

42" TimeCutter Zero-Turn Mower

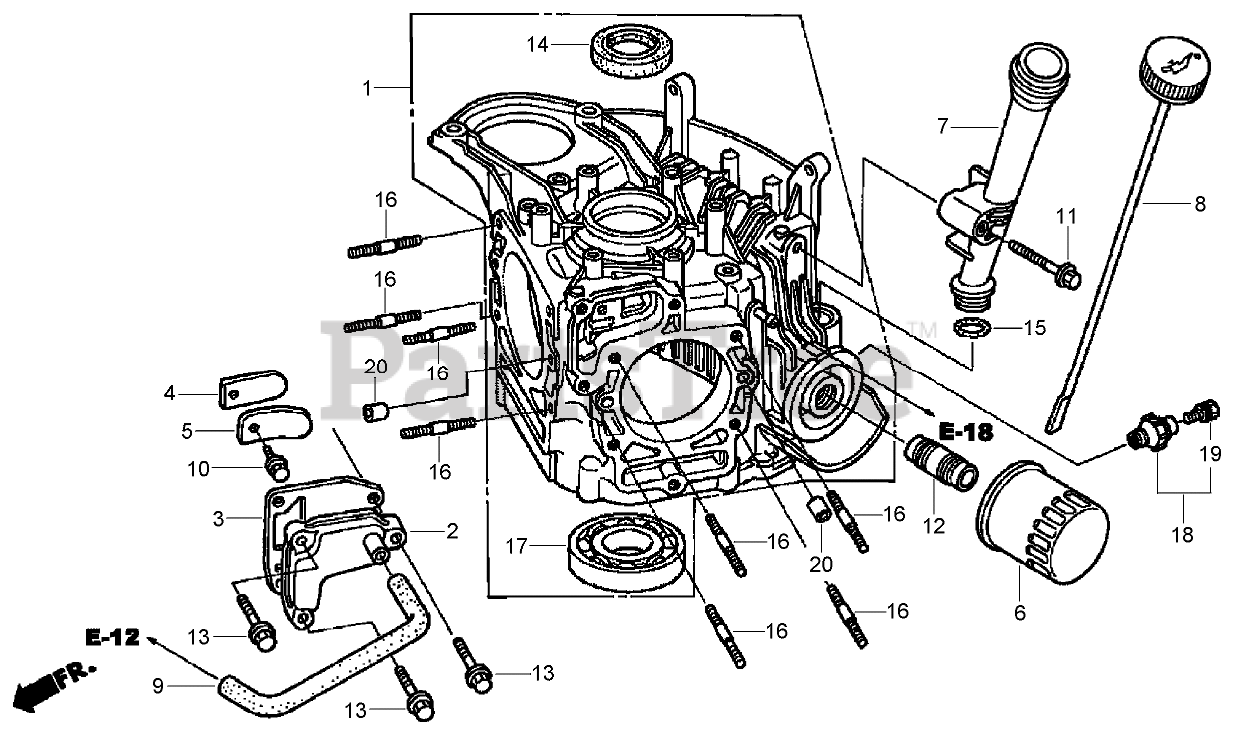

CRANKCASE ASSEMBLY HONDA GXV530 EXA2 Parts Diagram

  • Title

1

Honda 11100-Z0A-409

CRANKCASE ASM (840)

Note: Obtain parts from www.honda-engines.com

$502.99

$

Usually ships in 3-6 days

0

2

Honda 12356-Z0A-000

COVER-BREATHER

Note: Obtain parts from www.honda-engines.com

$24.99

$

Usually ships in 3-6 days

0

3

Honda 12358-Z0A-000

GASKET-COVER, BREATHER

Note: Obtain parts from www.honda-engines.com

$4.49

$

Usually ships in 3-6 days

0

4

Honda 12372-ZA0-701

PLATE-VALVE

Note: Obtain parts from www.honda-engines.com

$8.99

$

Usually ships in 3-6 days

0

5

Honda 12374-Z0A-000

STOPPER-VALVE

Note: Obtain parts from www.honda-engines.com

$4.49

$

In Stock, only 1 left!

0

6

Toro 15410-MCJ-000

FILTER-OIL (TOYO ROKI)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

7

Honda 15631-Z0A-000

EXTENSION-FILLER, OIL

Note: Obtain parts from www.honda-engines.com

$35.99

$

Usually ships in 3-6 days

0

8

Honda 15655-Z0A-800

DIPSTICK-OIL

Note: Obtain parts from www.honda-engines.com

$17.99

$

Usually ships in 3-6 days

0

9

Honda 15721-Z0A-000

TUBE-BREATHER

Note: Obtain parts from www.honda-engines.com

$11.99

$

Usually ships in 3-6 days

0

10

Honda 90002-892-000

BOLT-FLANGE (5X10)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 5

0

11

Honda 90016-ZE8-000

BOLT-FLANGE (6X45) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 2 left!

0

12

Honda 90018-PN3-000

HOLDER-FILTER, OIL

Note: Obtain parts from www.honda-engines.com

$9.99

$

In Stock, only 1 left!

0

13

Honda 90121-952-000

BOLT-FLANGE (6X25) (C T 200)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, Qty 20+

0

14

Honda 91201-ZE3-004

SEAL-OIL (35X5X8)

Note: Obtain parts from www.honda-engines.com

$11.99

$

In Stock, Qty 7

0

15

Honda 91301-ZE9-003

O-Ring (22.5X2.2)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 12

0

16

Honda 92900-08028-0E

BOLT-STUD (8X28)

Note: Obtain parts from www.honda-engines.com

$3.49

$

Usually ships in 3-6 days

0

17

Honda 96100-62070-00

BEARING-BALL, RADIAL

Note: Obtain parts from www.honda-engines.com

$56.99

$

Usually ships in 3-6 days

0

18

Honda 35490-Z0A-003

OIL PRESSURE SWITCH ASM

Note: Obtain parts from www.honda-engines.com

$48.99

$

Usually ships in 3-6 days

0

19

Honda 90002-PA6-003

BOLT-WASHER (4X8) (DENSO)

Note: Obtain parts from www.honda-engines.com

$7.99

$

Usually ships in 3-6 days

0

20

Honda 94301-08140

Pin-Dowel (8X14)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, Qty 8

0
