74434 (ZD 530) - Toro 42" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) CARBURETOR ASSEMBLY HONDA GXV530 EXA2 Parts Diagram

42" TimeCutter Zero-Turn Mower

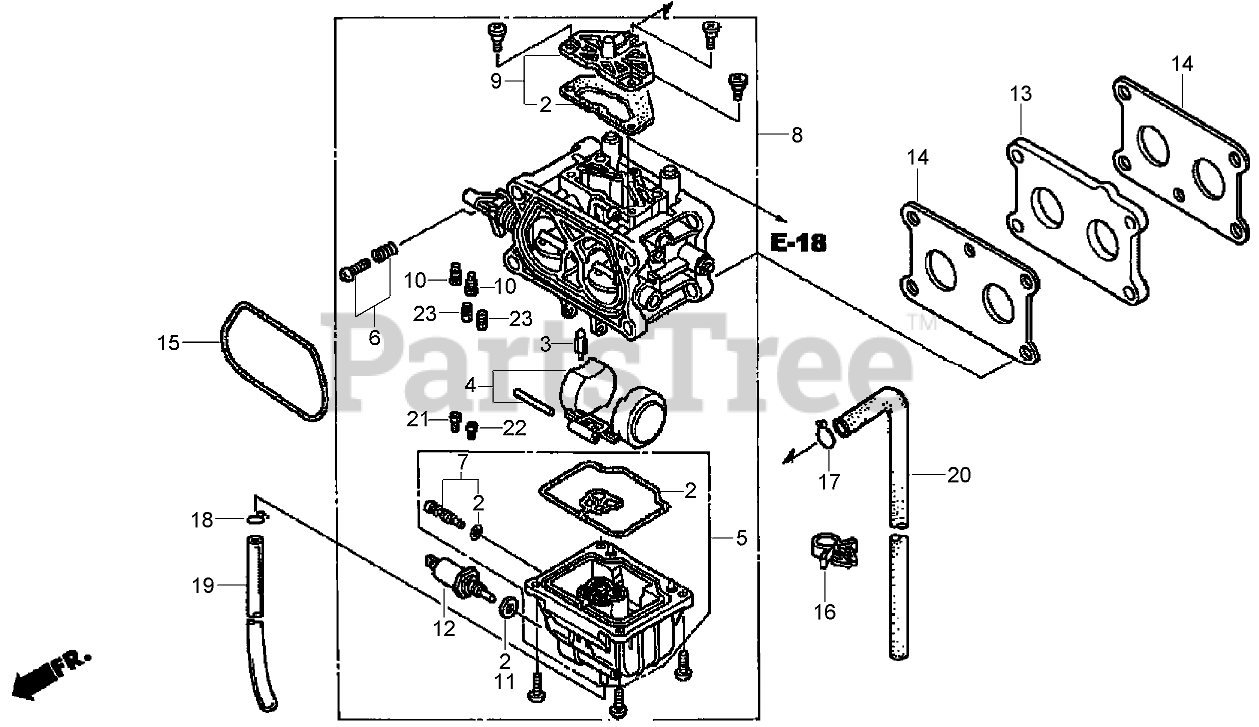

CARBURETOR ASSEMBLY HONDA GXV530 EXA2 Parts Diagram

  • Title

2

Honda 16010-Z0A-802

GASKET SET

Note: Obtain parts from www.honda-engines.com

$20.99

$

In Stock, only 1 left!

0

3

Honda 16011-Z0A-004

VALVE-FLOAT

Note: Obtain parts from www.honda-engines.com

$24.99

$

In Stock, only 1 left!

0

4

Honda 16013-Z0A-004

FLOAT SET

Note: Obtain parts from www.honda-engines.com

$25.99

$

Usually ships in 3-6 days

0

5

Honda 16015-Z0A-802

FLOAT CHAMBER SET

Note: Obtain parts from www.honda-engines.com

$

$

Not available

6

Honda 16016-Z0A-004

SCREW-SET

Note: Obtain parts from www.honda-engines.com

$11.99

$

Usually ships in 3-6 days

0

7

Honda 16024-Z0A-004

SCREW-SET, DRAIN

Note: Obtain parts from www.honda-engines.com

$10.99

$

Usually ships in 3-6 days

0

8

Toro 16100-Z0A-813

CARBURETOR ASM (Up to Engine Serial No. 1014986)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

8

Toro 16100-Z0A-814

CARBURETOR ASM (BW02B C) (Up to Engine Serial No. 1027210)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

8

Honda 16100-Z0A-815

CARBURETOR ASM (BW02B C) (From Engine Serial No.1027211 to 1061017)

Note: Obtain parts from www.honda-engines.com

$186.99

$

In Stock, only 1 left!

0

8

Honda 16100-Z0P-V02

CARBURETOR ASM (BW02C A) (From Engine Serial No. 1061018)

Note: Obtain parts from www.honda-engines.com

$184.99

$

Usually ships in 3-6 days

0

9

Honda 16139-Z0A-004

AIR VENT COVER SET

Note: Obtain parts from www.honda-engines.com

$32.99

$

In Stock, only 4 left!

0

10

Honda 16168-Z0A-004

CAP

Note: Obtain parts from www.honda-engines.com

$5.99

$

In Stock, only 2 left!

0

11

Honda 16178-Z0A-802

GASKET

Note: Obtain parts from www.honda-engines.com

$6.99

$

Usually ships in 3-6 days

0

12

Honda 16200-Z0A-802

SOLENOID VALVE ASM

Note: Obtain parts from www.honda-engines.com

$62.99

$

In Stock, only 1 left!

0

13

Honda 16211-Z0A-000

INSULATOR-CARBURETOR

Note: Obtain parts from www.honda-engines.com

$14.99

$

In Stock, only 1 left!

0

14

Honda 16212-Z0A-000

GASKET-INSULATOR

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, only 2 left!

0

15

Honda 17228-Z0A-003

GASKET-CLEANER, AIR

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 2 left!

0

16

Honda 90659-680-013

CLIP-HARNESS, WIRE

Note: Obtain parts from www.honda-engines.com

$8.49

$

Usually ships in 3-6 days

0

17

Honda 95002-02080

CLIP-TUBE (B8)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 10

0

18

Honda 95002-02650

CLIP-TUBE (B6.5)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 5

0

19

Honda 95003-07008-60M

HOSE-BULK, VINYL (4X7X8000) (4X7X300)

Note: Obtain parts from www.honda-engines.com

$36.99

$

Usually ships in 3-6 days

0

20

Honda 95005-45001-20M

HOSE-BULK, VACUUM (45X1000) (45X400)

Note: Obtain parts from www.honda-engines.com

$51.99

$

Usually ships in 3-6 days

0

21

Honda 99131-Z0A-0820

JET-MAIN (No. 82.5)

Note: Obtain parts from www.honda-engines.com

$19.99

$

Usually ships in 3-6 days

0

21

Honda 99131-Z0A-0850

JET-MAIN (No. 85)

Note: Obtain parts from www.honda-engines.com

$19.99

$

Usually ships in 3-6 days

0

21

Honda 99131-Z0A-0870

JET-MAIN (No. 87.5)

Note: Obtain parts from www.honda-engines.com

$19.99

$

Usually ships in 3-6 days

0

22

Honda 99131-Z0A-0850

JET-MAIN (No. 85)

Note: Obtain parts from www.honda-engines.com

$19.99

$

Usually ships in 3-6 days

0

22

Honda 99131-Z0A-0870

JET-MAIN (No. 87.5)

Note: Obtain parts from www.honda-engines.com

$19.99

$

Usually ships in 3-6 days

0

22

Honda 99131-Z0A-0900

JET-MAIN (No. 90)

Note: Obtain parts from www.honda-engines.com

$19.99

$

Usually ships in 3-6 days

0

23

Honda 99133-Z0A-0370

JET-PILOT (No. 37.5)

Note: Obtain parts from www.honda-engines.com

$22.99

$

Usually ships in 3-6 days

0

23

Honda 99134-Z0A-0370

JET-PILOT (No. 37.5)

Note: Obtain parts from www.honda-engines.com

$19.99

$

Usually ships in 3-6 days

0
