74433 (ZD 420) - Toro 42" TimeCutter Zero-Turn Mower (SN: 290000001 - 290999999) (2009) CARBURETOR OVERHAUL KIT (NIKKI) BRIGGS AND STRATTON MODEL 31P777-0133-E1 Parts Diagram

42" TimeCutter Zero-Turn Mower

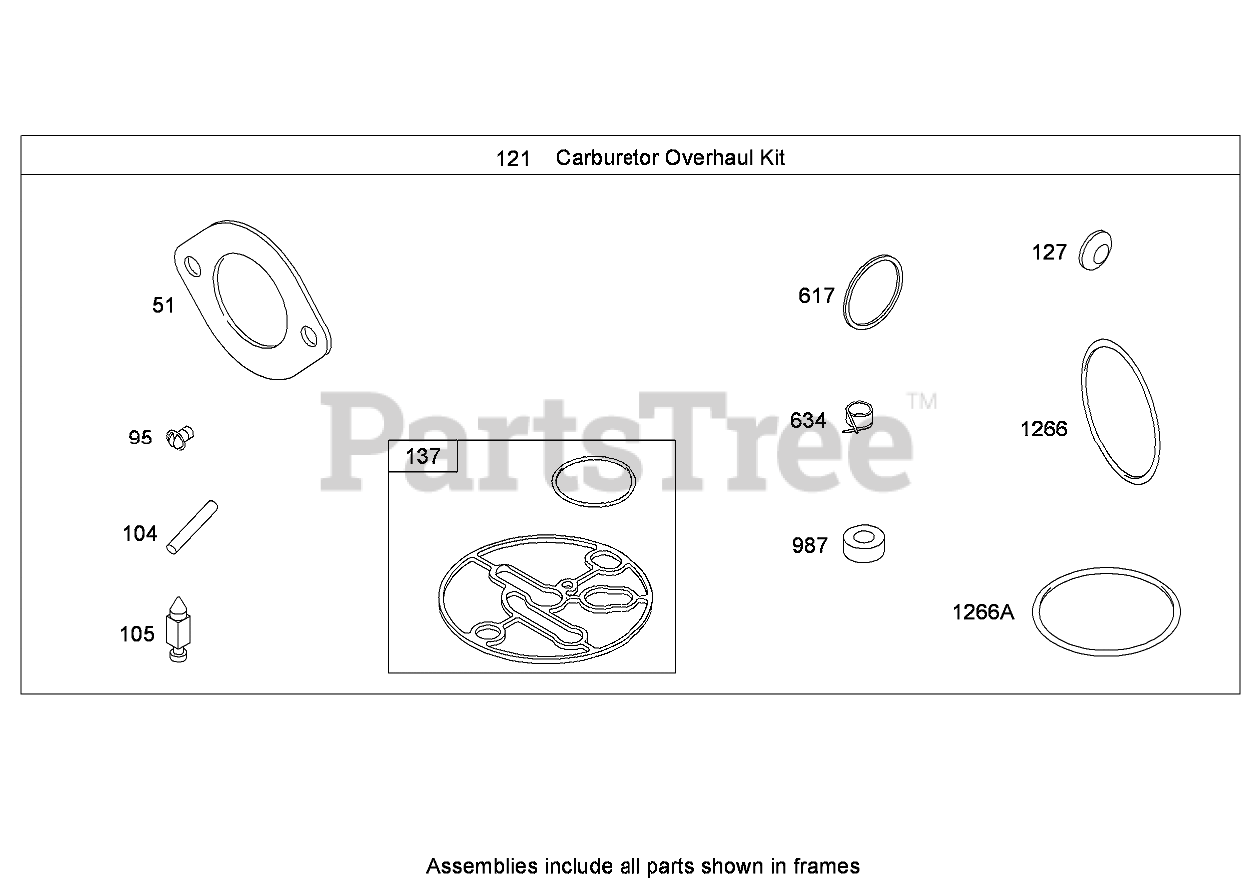

CARBURETOR OVERHAUL KIT (NIKKI) BRIGGS AND STRATTON MODEL 31P777-0133-E1 Parts Diagram

  • Title

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Valve Gasket Set (Ref. No. 1095)

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$3.49

$

In Stock, Qty 20+

0

95

Briggs & Stratton 690718

Screw (Throttle Valve)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$5.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690718

Screw (Throttle Valve)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 694918

Pin-Hinge, Float

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 2 left!

0

104

Briggs & Stratton 694918

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 696136

Valve-Float, Needle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$15.99

$

In Stock, Qty 20+

0

105

Briggs & Stratton 696136

Valve-Float, Needle

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

In Stock, Qty 20+

0

121

Briggs & Stratton 699521

Carburetor Overhaul Kit
(Superseded to 796184)

Note: Obtain parts from www.briggsandstratton.com

$63.99

$

In Stock, Qty 20+

0

127

Briggs & Stratton 690727

Plug-Welch

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

127

Briggs & Stratton 690727

Plug-Welch

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$4.49

$

In Stock, only 2 left!

0

137

Briggs & Stratton 698781

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$9.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 698781

Gasket-Bowl, Float

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

In Stock, Qty 20+

0

617

Briggs & Stratton 692138

Seal-O Ring (Intake Manifold)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 18

0

617

Briggs & Stratton 692138

Seal-O Ring (Intake Manifold)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$5.49

$

In Stock, Qty 18

0

617

Briggs & Stratton 692138

Seal-O Ring (Intake Manifold)

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.49

$

In Stock, Qty 18

0

634

Briggs & Stratton 698779

Spring and Seal Asm

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$8.99

$

In Stock, only 1 left!

0

634

Briggs & Stratton 698779

Spring and Seal Asm

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, only 1 left!

0

987

Briggs & Stratton 698777

Seal-Shaft, Throttle
(Superseded to 690998)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 698777

Seal-Shaft, Throttle
(Superseded to 690998)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$7.99

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

Seal-O Ring (Intake Elbow)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.49

$

In Stock, Qty 20+

0

1266

Briggs & Stratton 691917

Seal-O Ring (Intake Elbow)

Note: Included in Engine Gasket Set (Ref. No. 358)

$4.49

$

In Stock, Qty 20+

0

1266

Briggs & Stratton 691917

Seal-O Ring (Intake Elbow)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring (Intake Elbow)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 19

0

1266A

Briggs & Stratton 697123

Seal-O Ring (Intake Elbow)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$5.99

$

In Stock, Qty 19

0

1266A

Briggs & Stratton 697123

Seal-O Ring (Intake Elbow)

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.99

$

In Stock, Qty 19

0
