74433 (ZD 420) - Toro 42" TimeCutter Zero-Turn Mower (SN: 290000001 - 290999999) (2009) 42 INCH TOP DECK ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

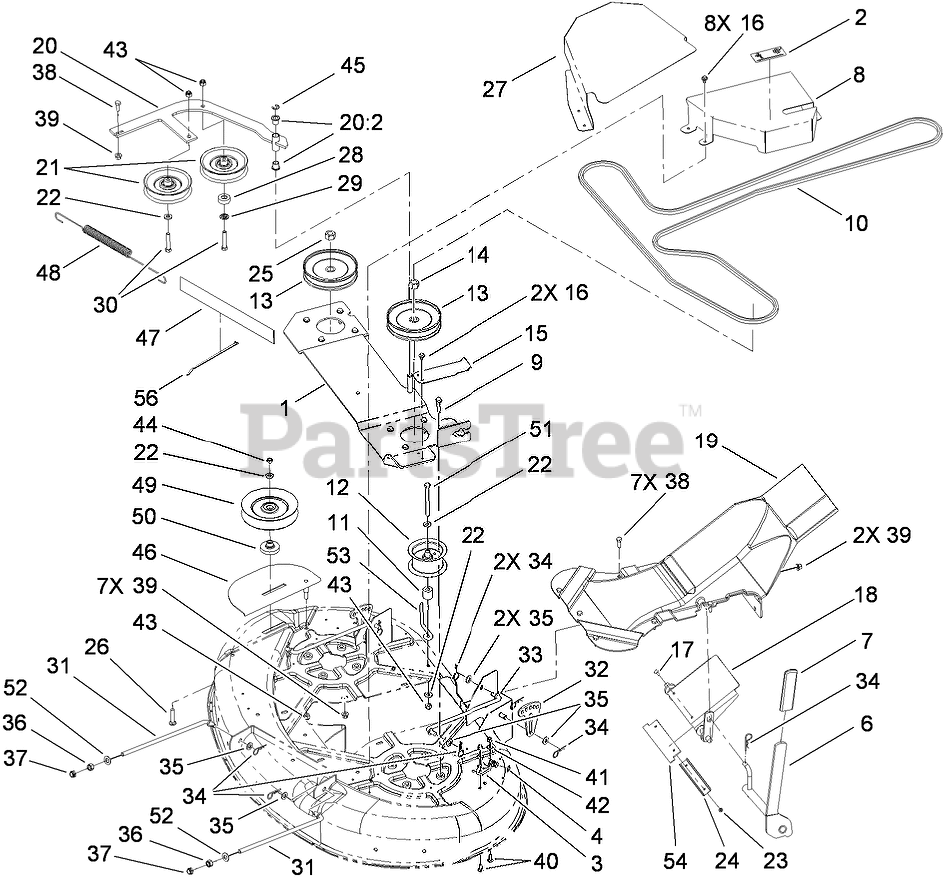

42 INCH TOP DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 112-6737-03

STIFFENER ASM

$

$

Not available

2

Toro 108-8769

DECAL-BAG ON DEMAND

$

$

Not available

3

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

4

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

6

Toro 110-8811-03

CONTROL LEVER ASM

$

$

Not available

7

Toro 105-3450

GRIP-LEVER, LIFT

$9.49

$

In Stock, only 3 left!

0

8

Toro 112-3481-03

COVER-BELT, LH

$

$

Not available

9

Toro 32144-57

SCREW

$2.49

$

In Stock, Qty 20+

0

10

Toro 108-9459

BELT-AA

$164.99

$

Usually ships in 3-6 days

0

11

Toro 61-2220

SPACER

$10.99

$

Usually ships in 3-6 days

0

12

Toro 107280

PULLEY-IDLER

$89.99

$

Usually ships in 3-6 days

0

13

Toro 88-5330

PULLEY

$122.99

$

In Stock, only 2 left!

0

14

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

15

Toro 112-6675

SPRING-DETENT

$

$

Not available

16

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

17

Toro 3229-34

SCREW-CARR

$2.49

$

Usually ships in 3-6 days

0

18

Toro 112-3428-03

38 INCH DOOR ASM

$168.99

$

Usually ships in 3-6 days

0

19

Toro 108-8865

ADAPTER-DISCHARGE

$

$

Not available

20

Toro 110-3681

IDLER ARM W/BUSHINGS ASM

$

$

Not available

20:2

Toro 256-219

BUSHING

$9.49

$

In Stock, only 1 left!

0

21

Toro 94-2447

PULLEY-IDLER

$124.99

$

In Stock, only 1 left!

0

22

Toro 65-9130

WASHER

$3.99

$

Usually ships in 3-6 days

0

23

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

24

Toro 110-8575

PLATE-SEAL, DOOR

$

$

Not available

25

Toro 3219-16

NUT-HEX

$7.49

$

Usually ships in 3-6 days

0

26

Toro 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

27

Toro 112-3480-03

COVER-BELT, RH

$155.99

$

Usually ships in 3-6 days

0

28

Toro 108-8807

SLIDER

$23.99

$

Usually ships in 3-6 days

0

29

Toro 108-8808

WASHER-SHOULDER

$20.99

$

Usually ships in 3-6 days

0

30

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Toro 105-3437

ROD-HANGER

$32.99

$

In Stock, only 4 left!

0

32

Toro 88-5570-03

LINK-ADJUSTING, HOC

$15.99

$

Usually ships in 3-6 days

0

33

Toro 108-8834

ROD-LIFT, DECK

$

$

Not available

34

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

35

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

36

Toro 3219-4

NUT-HEX

$3.99

$

Usually ships in 3-6 days

0

37

Toro 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 4 left!

0

38

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

40

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

41

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

42

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

43

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

44

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

45

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

46

Toro 110-3625-03

IDLER BRACKET ASM

$

$

Not available

47

Toro 74-3280

GUARD-SPLASH

$28.99

$

Usually ships in 3-6 days

0

48

Toro 112-4763

SPRING-ARM, IDLER

$37.99

$

Usually ships in 3-6 days

0

49

Toro 1-633166

PULLEY-IDLER

$56.99

$

In Stock, only 3 left!

0

50

Toro 108-8802

IDLER BUSHING AND SPACER ASM

$78.99

$

Usually ships in 3-6 days

0

51

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.49

$

Usually ships in 3-6 days

0

52

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

53

Toro 112-4787

GUIDE-BELT, IDLER

$20.99

$

Usually ships in 3-6 days

0

54

Toro 114-3600

SEAL-DOOR, RECYCLE

$10.99

$

Usually ships in 3-6 days

0

56

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
