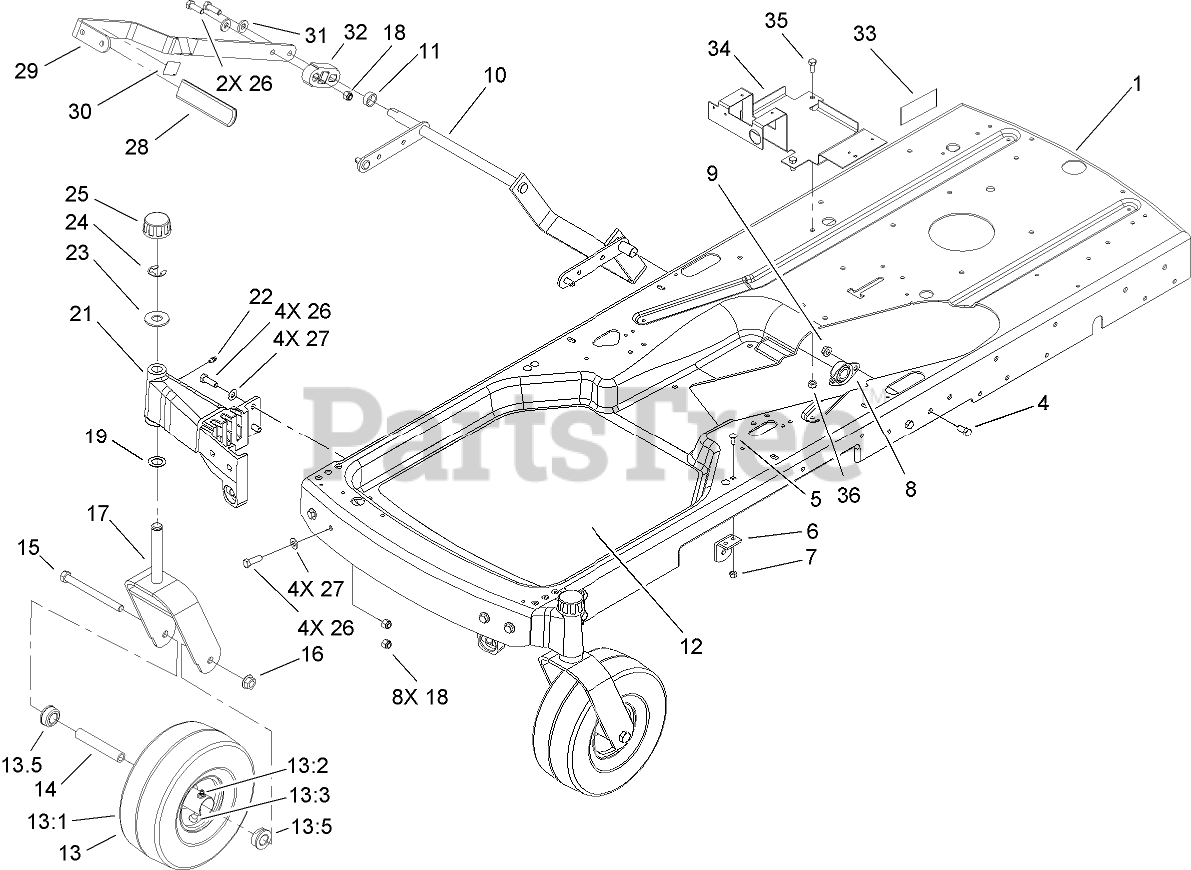

74432 (ZD 380) - Toro 97cm TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) FRAME ASSEMBLY Parts Diagram

97cm TimeCutter Zero-Turn Mower

FRAME ASSEMBLY Parts Diagram

  • Title

$

$

Not available

4

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

5

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

6

Toro 105-3439

BRACKET-LIFT

$

$

Not available

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

8

Toro 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 3 left!

0

9

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Toro 114-3601-03

LIFT ARM ASM

$

$

Not available

11

Toro 106-2222

SPACER

$

$

Not available

12

Toro 105-3460

PAD-ANTISKID

$

$

Not available

13

Toro 105-3471

FRONT WHEEL AND TIRE ASM

$79.99

$

In Stock, Qty 17

0

13:1

$62.99

$

In Stock, only 1 left!

0

13:2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

13:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

13:5

Toro 114-1640

BUSHING-FLANGE

$12.99

$

In Stock, Qty 20+

0

13:99

Toro 93-4244

TUBE-INNER (W/VALVE)

Note: Not illustrated

$16.99

$

In Stock, only 2 left!

0

14

Toro 104-3667

BUSHING-SPANNER

$19.99

$

In Stock, Qty 20+

0

15

Toro 325-22

SCREW-HH

$8.49

$

In Stock, Qty 7

0

16

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

17

Toro 110-6581-01

CASTER FORK ASM

$117.99

$

In Stock, only 2 left!

0

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0

20

Toro 105-6986-01

CASTER-LH

Note: Not illustrated

$

$

Not available

21

Toro 105-6985-01

CASTER-RH

$

$

Not available

22

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

23

Toro 28-2480

WASHER-PLAIN

$4.99

$

In Stock, Qty 16

0

24

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

25

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 20+

0

26

Toro 323-18

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

27

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 105-3450

GRIP-LEVER, LIFT

$9.49

$

In Stock, only 3 left!

0

29

Toro 108-2317-03

LEVER-LIFT

$69.99

$

Usually ships in 3-6 days

0

30

Toro 106-8743

DECAL-HOC

$2.99

$

Usually ships in 3-6 days

0

31

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

32

Toro 106-2211

BLOCK-LIFT

$21.99

$

Usually ships in 3-6 days

0

33

Toro 106-7043

DECAL-TRANSPORT

$

$

Not available

34

Toro 107-8965-03

HOLDER-BATTERY

$

$

Not available

35

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

36

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
